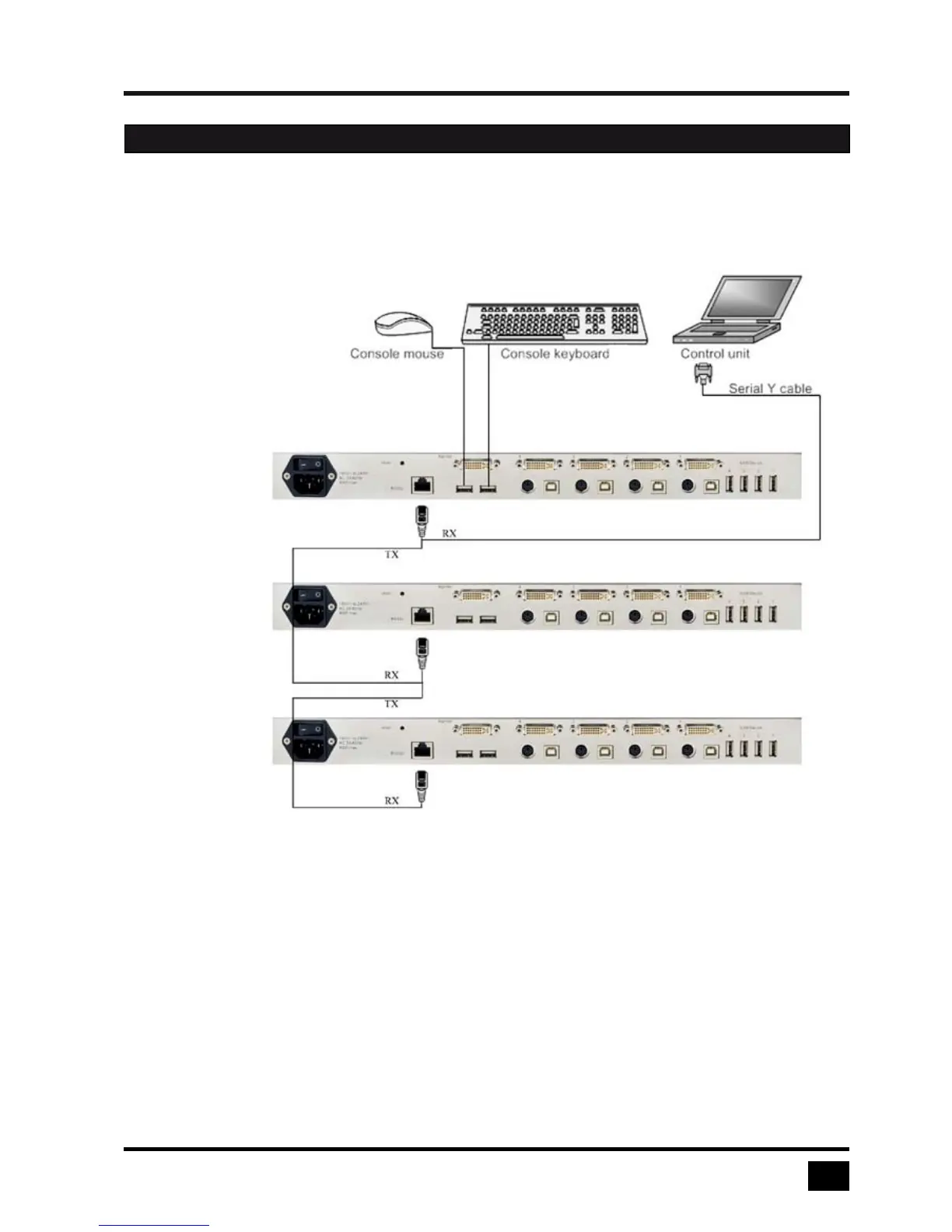

Example of DCP synchronization
V-Switch quad II 2 and 3 are synchronized with V-Switch quad II 1.
V-Switch quad II 1
V-Switch quad II 2
V-Switch quad II 3
To synchronize, V-Switch quad II 1 sends every change in settings as a DCP message via the serial Y cable to
the RX input of V-Switch quad II 2.
V-Switch quad II 2 adopts the settings and sends a DCP message via TX output over the Y cable to the RX
input of V-Switch quad II 3.
The synchronization chain can have any length.
Do not connect the last device in the chain to the first device (i.e. do not create a loop).
OSD - SYSTEM - CONTROL
