V-Switch quad II - Installation and Operation Manual
ANNEX
70

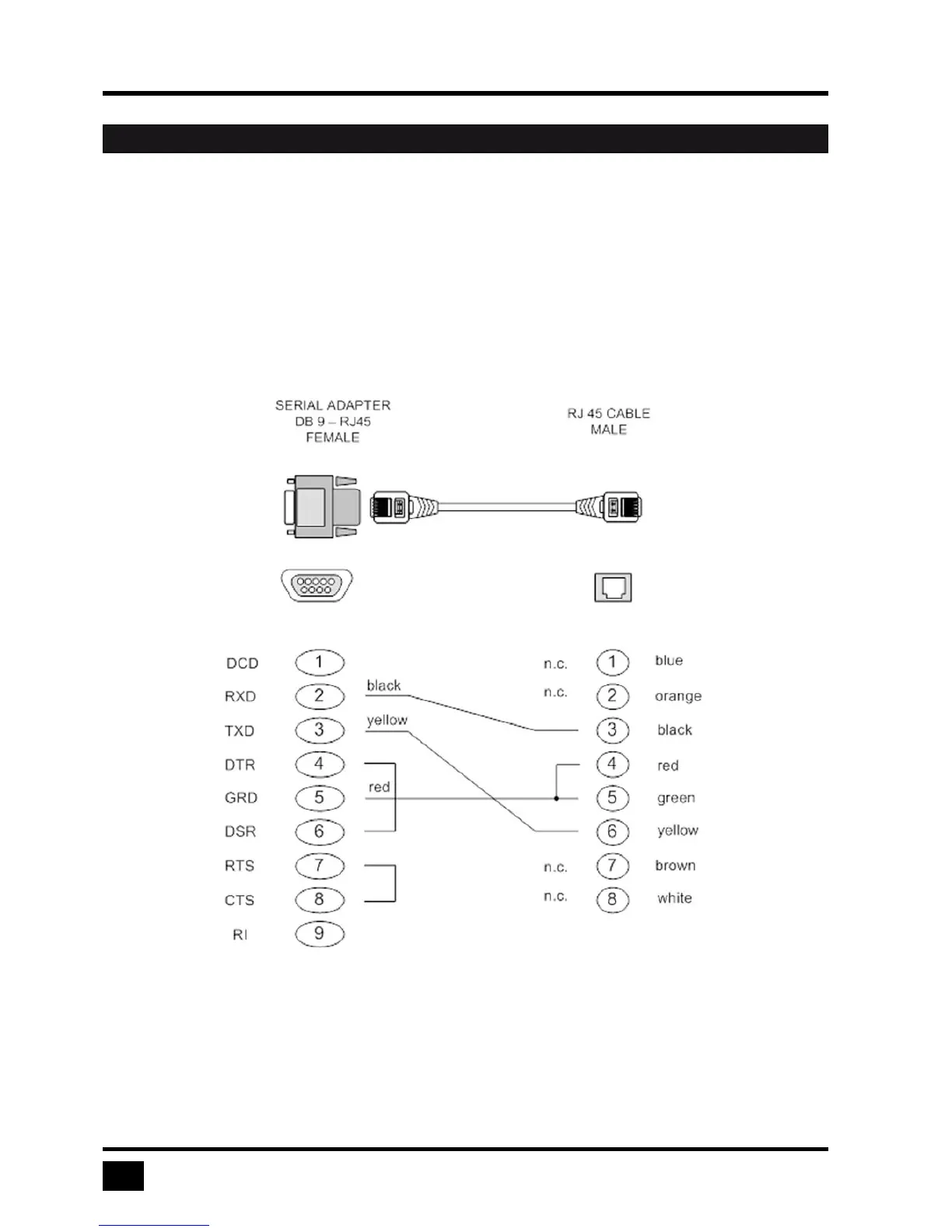

For serial remote control, V-Switch quad II requires a special adaptor to connect a CAT5 cable to the serial RJ45
port at the rear panel of V-Switch quad II.
This adaptor is connected to your external serial control device (e.g. computer). To the adaptor any CAT5 cable
can be connected. The CAT5 cable again is connected to the RJ45 port of V-Switch quad II.
The adaptor (plus a standard CAT5 cable (in green)) always is delivered with V-Switch quad II.
Serial cable = HETEC adaptor + standard CAT5 cable
SERIAL CABLE
