7 Installing the wash centrifuge

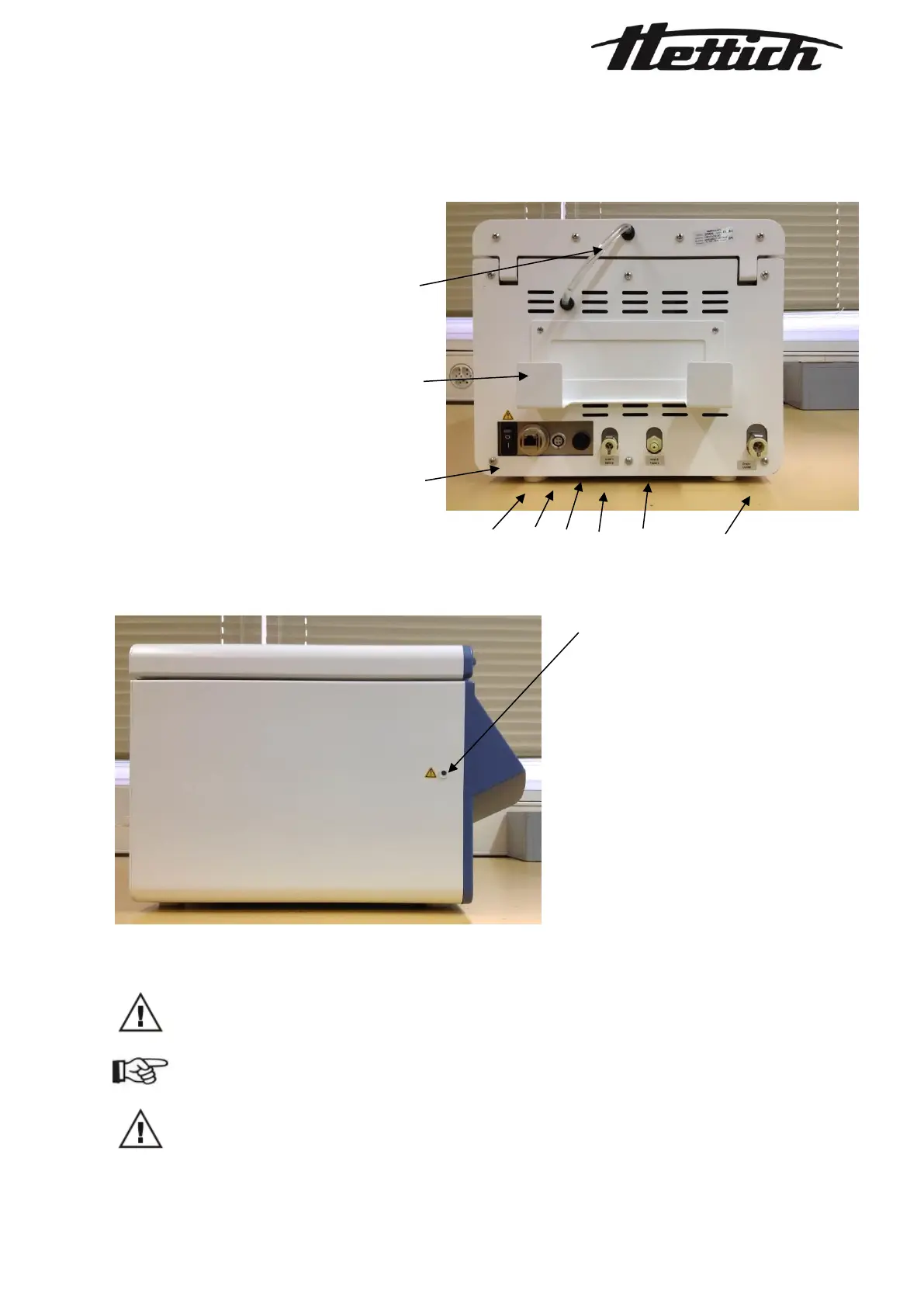

7.1 Connections
1 solution tube to the lid
2 mounting bracket for the power-supply
3 ON / OFF main switch
4 ethernet interface
1
5 DC power input *
6 fuse, fuse holder
7 inlet1, saline
8 inlet 2, solution 2*
9 outlet, drain 2
* Refer to the technical specifications comparing to
The part number from your device, tab 1.0
3
4 5 6 7 8 9
9 Emergency release hole
(Refer to chapter 4.3)
If you use the device connected to a car- or truck-battery without the option, then the device could
become damaged.
Refer to the technical specifications comparing to the part number from your device, tab 1.0
Allow the option to be installed only from an authorised distributor.
If you install the device in a car, truck, ship or another mobile environment, then you must protect
the device with the transportation foam during transportation and you must ensure that the ambient
conditions are conform to the tec. Specifications.
