Chapter 1. Checking and Handling
1-6
y Impact resistance

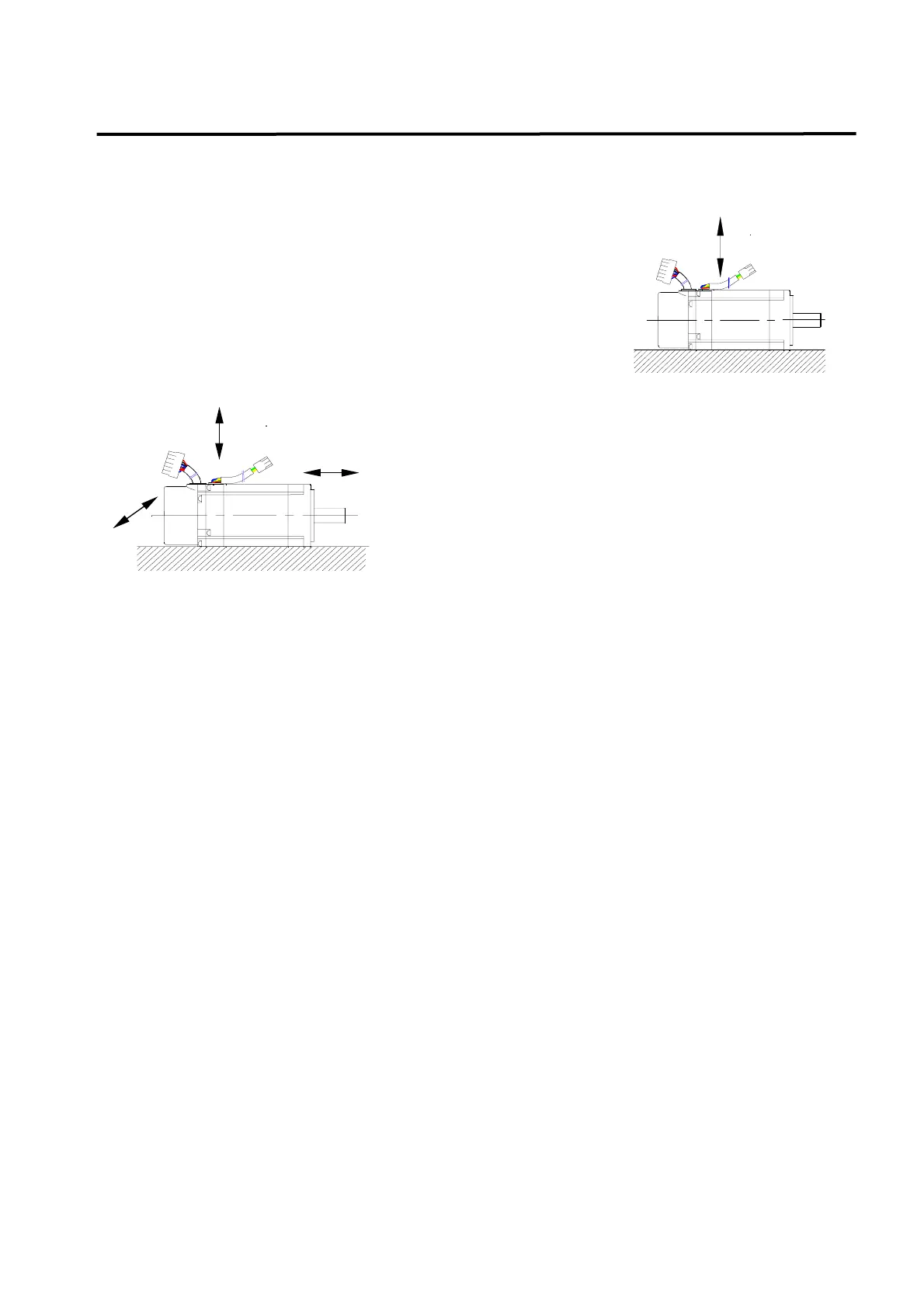

The driver withstands an acceleration of 10G and two times of
impacts when up-and-down impacts are applied after setting the
motor shaft horizontally.
However, a precision detector is attached to the end of the shaft on
the opposite side of the load. Take caution not to apply impact
directly to
this end.
y Vibration resistance
The driver withstands a vibration acceleration of 2.0G when
vibration is applied in up and down, left and right, and front
and back directions after setting the motor shaft horizontally.
y Vibration grade
The vibration grade of the AC servo motor is V15 at the rated rpm.
y Direction of installation
- Motor can be installed horizontally or at the top
or bottom of the shaft.
- Keep the motor cable downward.
- If the motor is installed vertically, install a cable trap so that oils or water do not flow into the
motor.
y Cable disconnection
- Take caution not to cause stress or damage to the cables.
- If the motor is used as a mobile motor, use movable cables.
