Higen FDA5000 Series User Manual

Chapter 16. External View
16-1

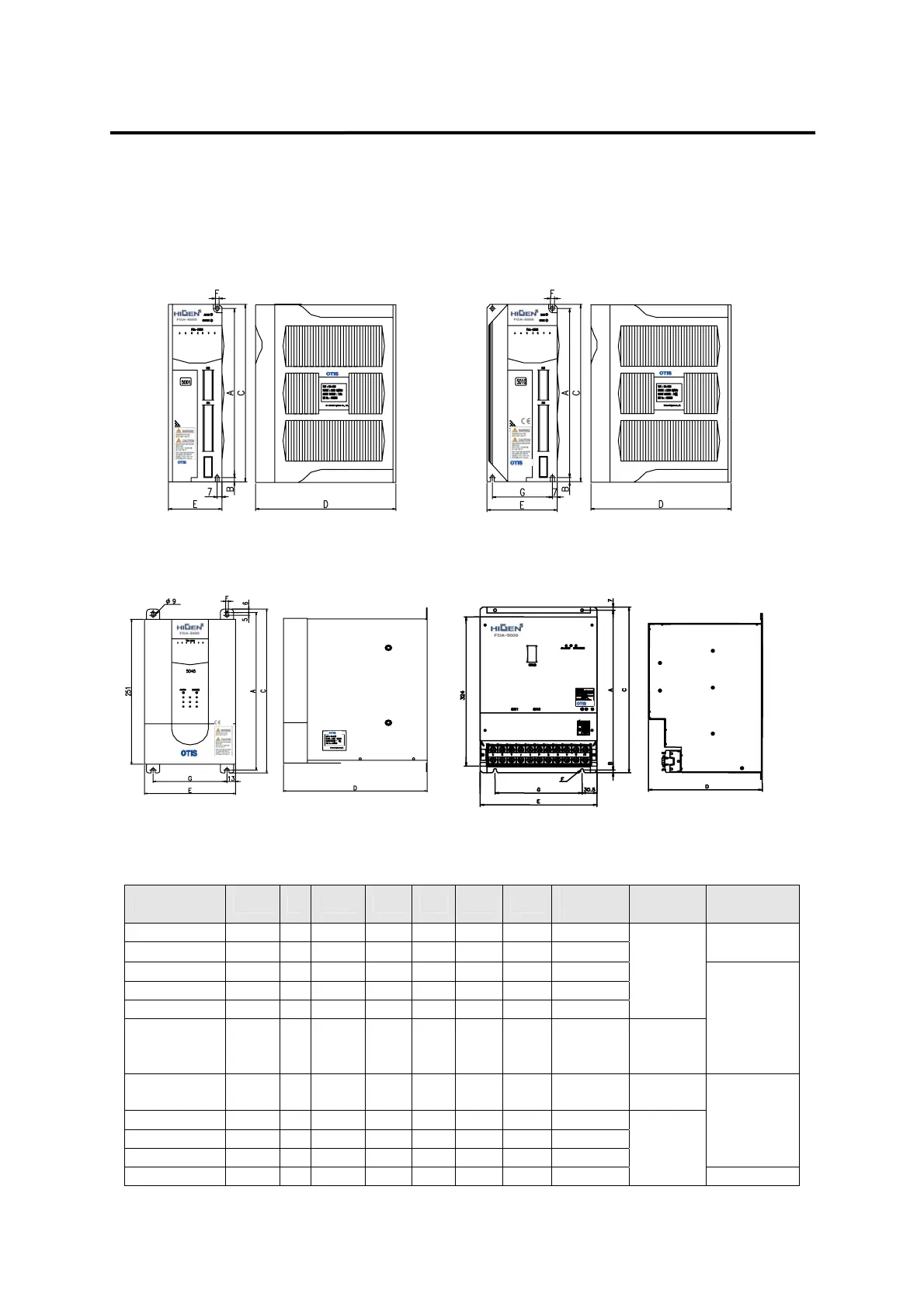

16. External View
16.1 External Dimensions of AC Servo Driver
< Outline drawing A > < Outline drawing B >
< Outline drawing C > < Outline drawing D >
Product
A B C D E F G
Weight
[Kg]
Cooling
system
Outline
Drawing
FDA-5001 164 5 175 130 60 5.5 - 1.0
FDA-5002 164 5 175 130 60 5.5 - 1.0
A
FDA-5004 164 5 175 130 77 5.5 63 1.3
FDA-5005 200 5 210 184 94 5.5 80 2.0
FDA-5010 200 5 210 184 94 5.5 80 2.0
Self-
cooling
FDA-5012 200 5 210 184 103 5.5 80 2.3
Forced
cooling
(Fan)
B
FDA-5015 272 6 284 218 135 6.0 111 4.5
Self-
cooling
FDA-5020 272 6 284 218 135 6.0 111 4.8
FDA-5030 272 6 284 218 135 6.0 111 4.9
FDA-5045 272 6 284 218 135 6.0 111 5.0
C
FDA-5075 347 6 360 234 240 6.0 179 15
Forced
cooling
(Fan)
D
