Chapter 4. Digital Loader Operation
4-1
4. Digital Loader Operation
Prior to connecting power and turning ON the servo, check the parameters [Motor parameters
(P1--)] related to the motor at the digital loader. In order for the servo system to operate
satisfactorily based on the information on the motor connected to the servo, accurate value must
be set.
Next, monitor [Status Window (St--)] and verify that all commands and limit values are properly set.
For initial operation, verify certain degree of stability through autotuning and trial operation (jog,
simulation). Autotuning can be achieved through on-line system, but it is not necessary to use this
function in case stabilized control gain is acquired through off-line system.
2 lines 32 characters
Changing main menu
Start editing, shift to sub-menu from main menu
Edit end
Increase the cursor position numerical value 1 at a time
Changing sub-menu when moving cursor to right
decrease the cursor position numerical value 1 at a time
Changing sub-menu when moving cursor to left

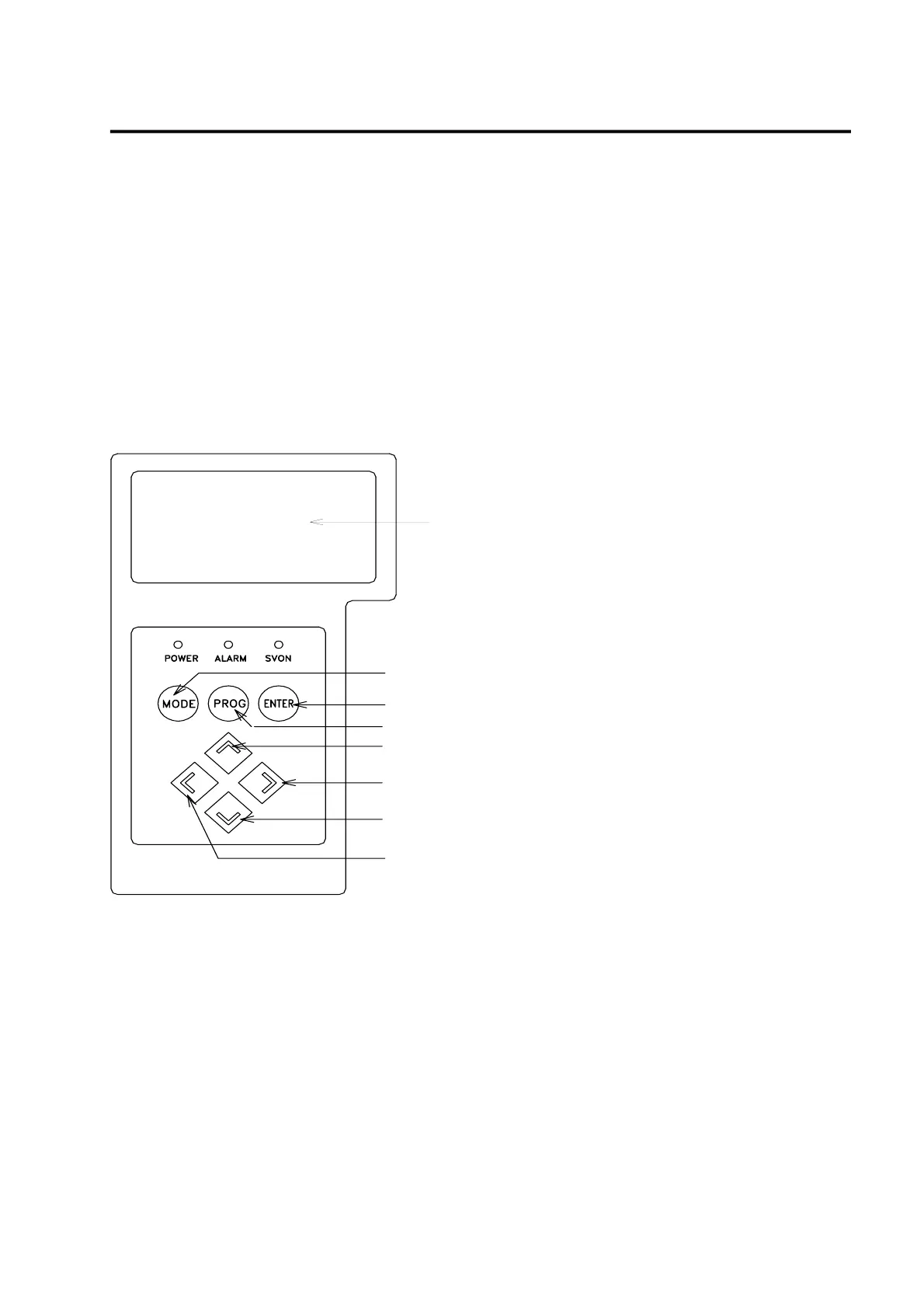

Figure 4.1 External view of digital loader
