Chapter 4. Digital Loader Operation
4-5
4.2 Sub-menu Group
Menus are classified into 3 main groups: a menu capable of editing or inputting information
required for operation, a menu which monitors operation status, and a menu which carries testing
function.
y Operation monitoring menu: Status Window, Alarm Status
y Edit menu: Motor Parameter, Control Mode, Speed Mode, Position Mode, Torque Mode
y Testing menu: Test Mode
4.3 Operation Monitoring Menu

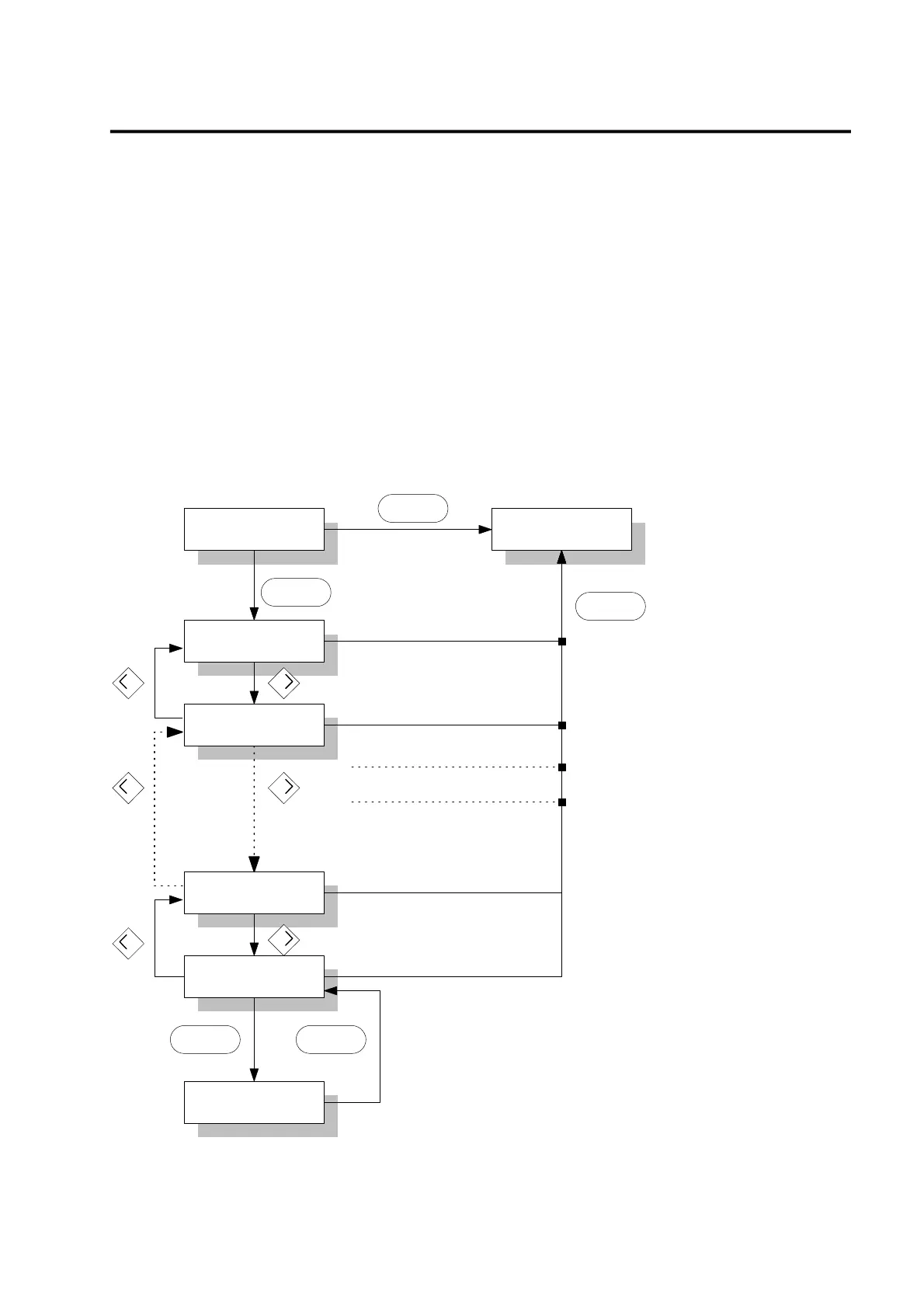

4.3.1 Operation status display menu
MotorSpeed[RPM]
St-01 3000
CMD Speed[RPM]
St-02 3000
I/O Status
Push PROG Key
In ;110100111111
Out;111010111
Status Window
St--
MotorParameter
P1--
Note1) In the digital loader window,
only the [I/O status]menu can be
operated by the "PROG" key
MODE
PROG ENTER
PROG
Program Version
[5000S] Ver.2.10
Note1)
MODE
