Higen FDA5000 Series User Manual

Chapter 16. External View
16-3

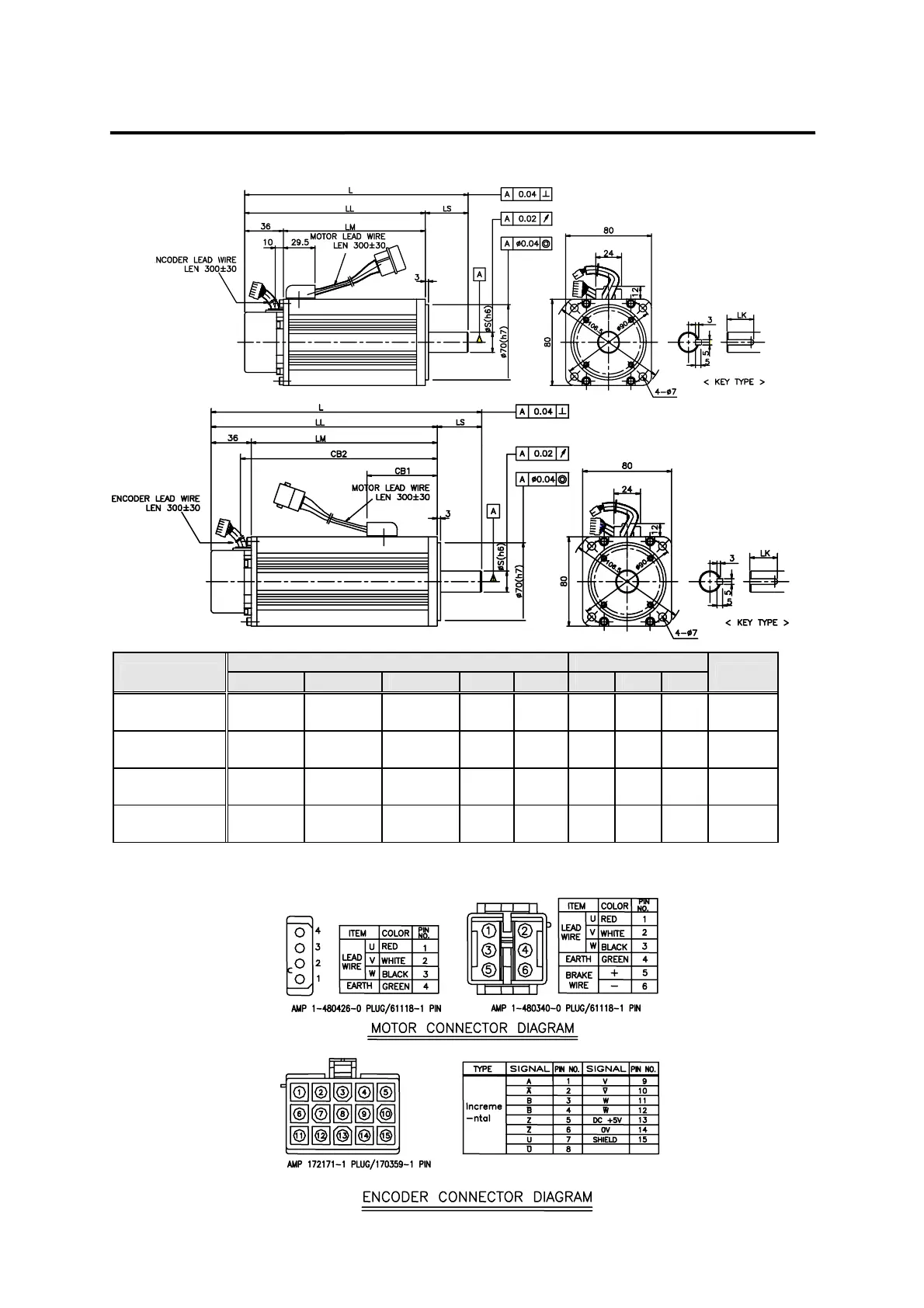

16.2.2 Flange 80 Series
External dementions Key dimensions
Model
L LL LM CB1 CB2 S LS LK
Weight
CN04A, KN03
147(174
)
112(139
)
76(103) (63) (113) 14 35 20 2.1(2.9)
CN06, KN05
171(198
)
131(158
)
95(122) (63) (132) 16 40 25 2.6(3.3)
CN08, KN06
193(219
)
153(179
)
117(143
)
(63) (153) 16 40 25 3.1(3.9)
CN10, KN07
213(246
)
173(206
)
137(170
)
(70) (180) 16 40 25 3.7(4.6)
* Figures in ( ) indicate brake-attached type.
* Use DC 24V for brake input power supply.
* In case of applying absolute encoder, Motor length is extended 15mm.
Standard t
y
pe
Brake type
