Higen FDA5000 Series User Manual

Chapter 5. Mount Loader Operation
5-2

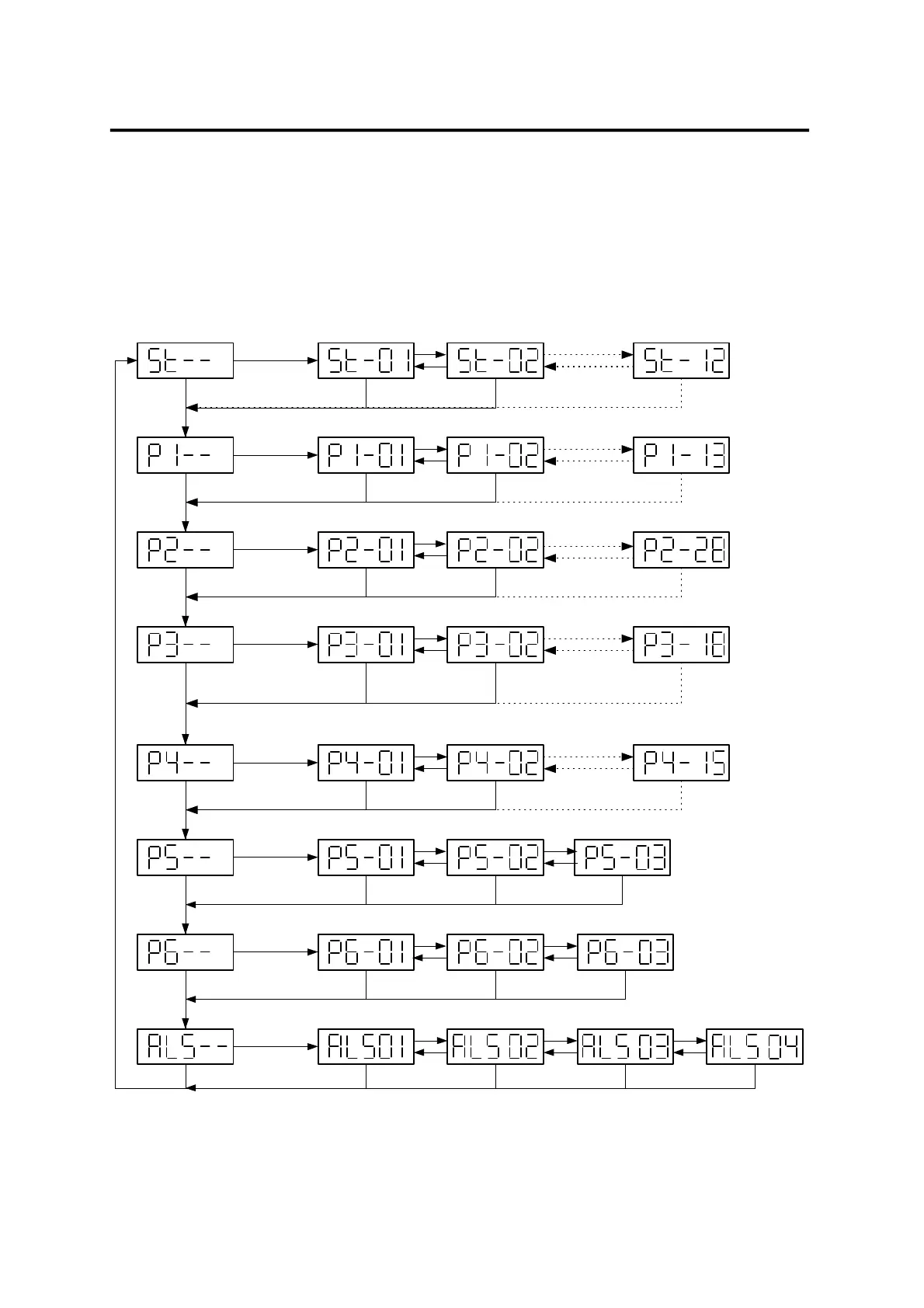

Figure 5.2 Overall block diagram of operation method
UP
UP
UP
ENTER
RIGHT
LEFT
UP
RIGHT
LEFT
ENTER
RIGHT
LEFT
RIGHT
LEFT
ENTER
RIGHT
LEFT
RIGHT
LEFT
ENTER
RIGHT
LEFT
RIGHT
LEFT
ENTER
RIGHT
LEFT
RIGHT
LEFT
ENTER
RIGHT
LEFT
RIGHT
LEFT
ENTER
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
ENTER
RIGHT
LEFT
UP
UP
UP
UP
UP : Moves from main menu to main menu and from sub-menu to
main menu.
ENTER : Moves from main menu to sub menu
RIGHT, LEFT : Moves between sub-menu
St--, P1--, ..., ALS-- :
Main menu
St-01, ..., ALS04 : sub-menu
