Chapter 5. Mount Loader Operation
5-12
In jog mode, the motor runs by the use of LEFT and RIGHT. In [Auto jog operation mode],
speed and time are set in [tS-11) - [tS-17); and if 1 is input in [tS-17), the motor runs repeatedly.
Set value can be changed in each sub-menu of [tS-11) - [tS-17) in the same method of changing
previous motor parameters and control-related parameters. If, after changing the sub-menu set
value, ENTER is pressed without moving to sub-menu by the use of LEFT and RIGHT, the
screen changes to [P6-02], the initial screen of [Auto jog operation mode}. The auto jog
operation mode is then automatically reset, and the system returns to the normal servo function.
(See 6.6.2 Auto Jog)
5.5.3 Simulation function (P6-03)
While the motor is connected and is operated without CN1 contact input in Jog and Auto Jog
modes, simulated operation is a condition under which, while the connector CN1 is connected in
normal state, menu displays data just as the motor is running when the motor wire and encoder
is separated.

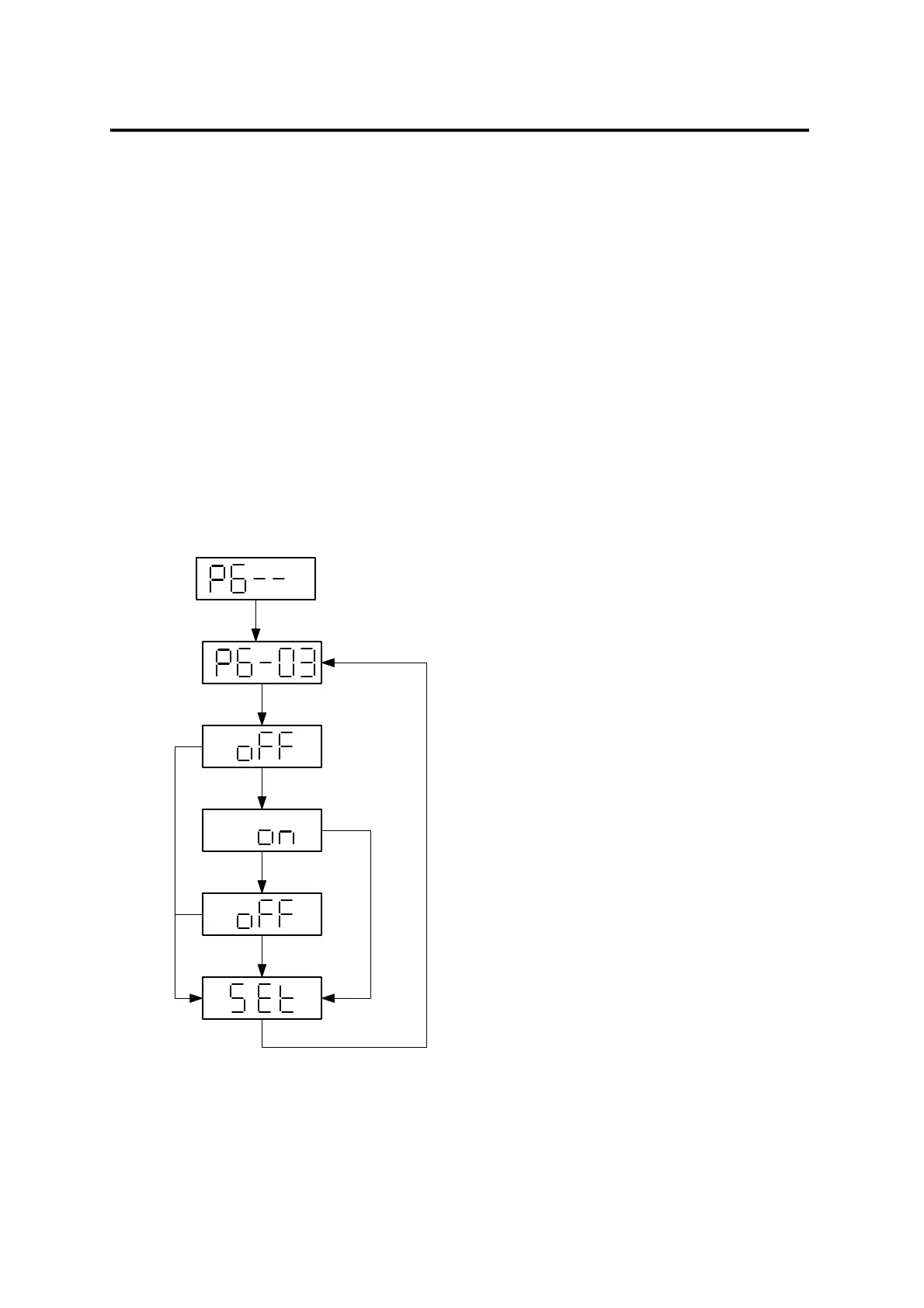

UP
UP
ENTER
ENTER
ENTER
OFF :
Reset simulation
ON :
Sets simulation operation
Setting operations status
(displays for 2 seconds)
OFF :
Reset simulation
ENTER
ENTER and RIGHT key 2 times
To Next Page
