DS-6900UDI Series HD Video and Audio Decoder User Manual
DS-6900UDI Decoder Us er Manua l
7

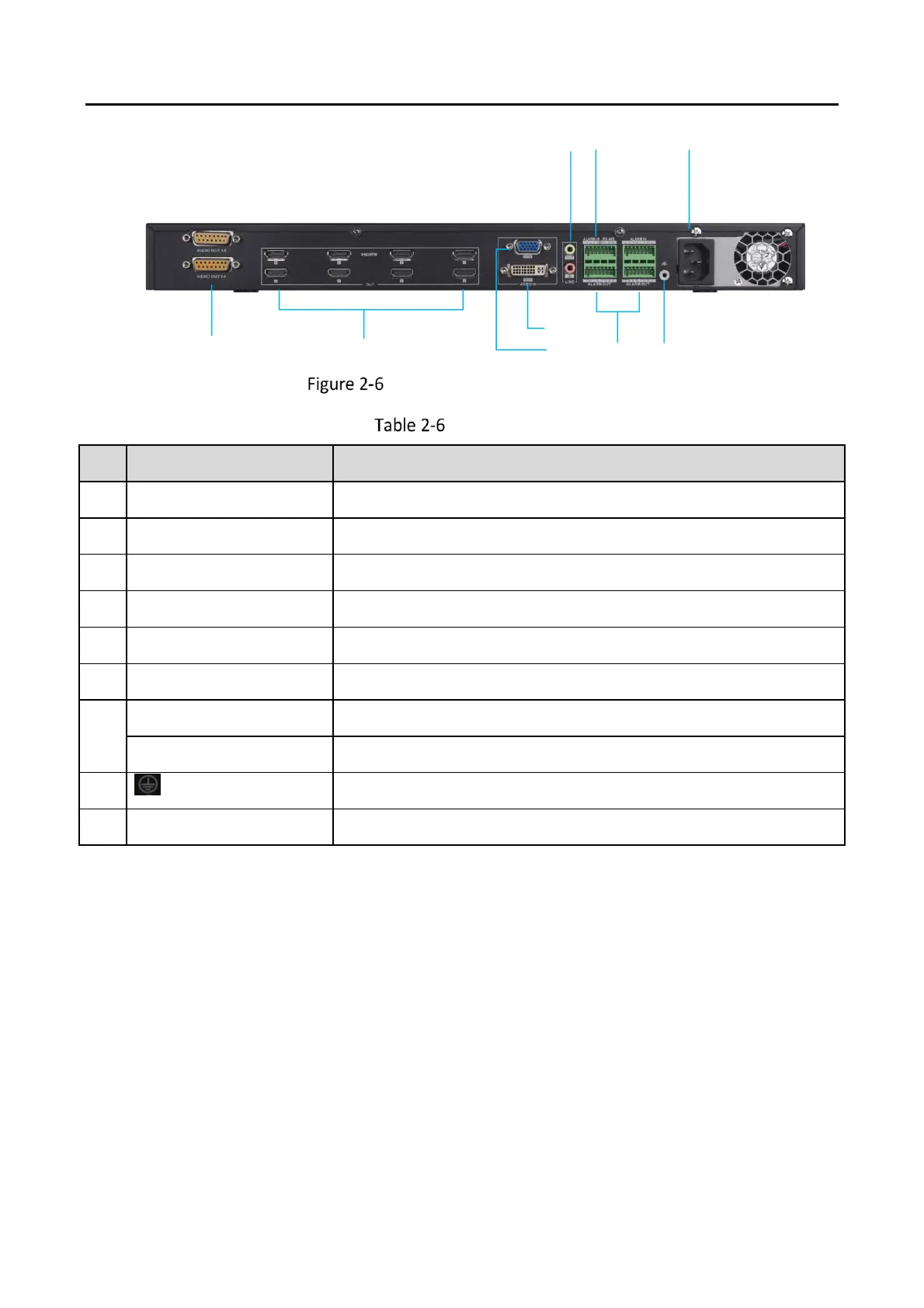

Rear Panel of DS-6908UDI
Description of DS-6908UDI Rear Panel
 Rear Panel of DS-6916UDI
1
2
3
4
8
7
5 6 9
No.
Interface
Connections
1
Audio/Video output
BNC connector
2
HDMI video output
HDMI output of decoded video
3
VGA video input
VGA input of decoded video
4
DVI video input
DVI input of decoded video
5
LINE IN/OUT
Two-way audio input/output, 3.5mm connector
6
RS-485 serial interface
Connect to RS-485 devices, e.g., keyboard, etc.
7
Alarm in
8 alarm inputs
Alarm out
8 alarm outputs
8
GND
9
Power
Power input
