User Manual of DS-7200-SH/SV&DS-7300-SH Series DVR
109

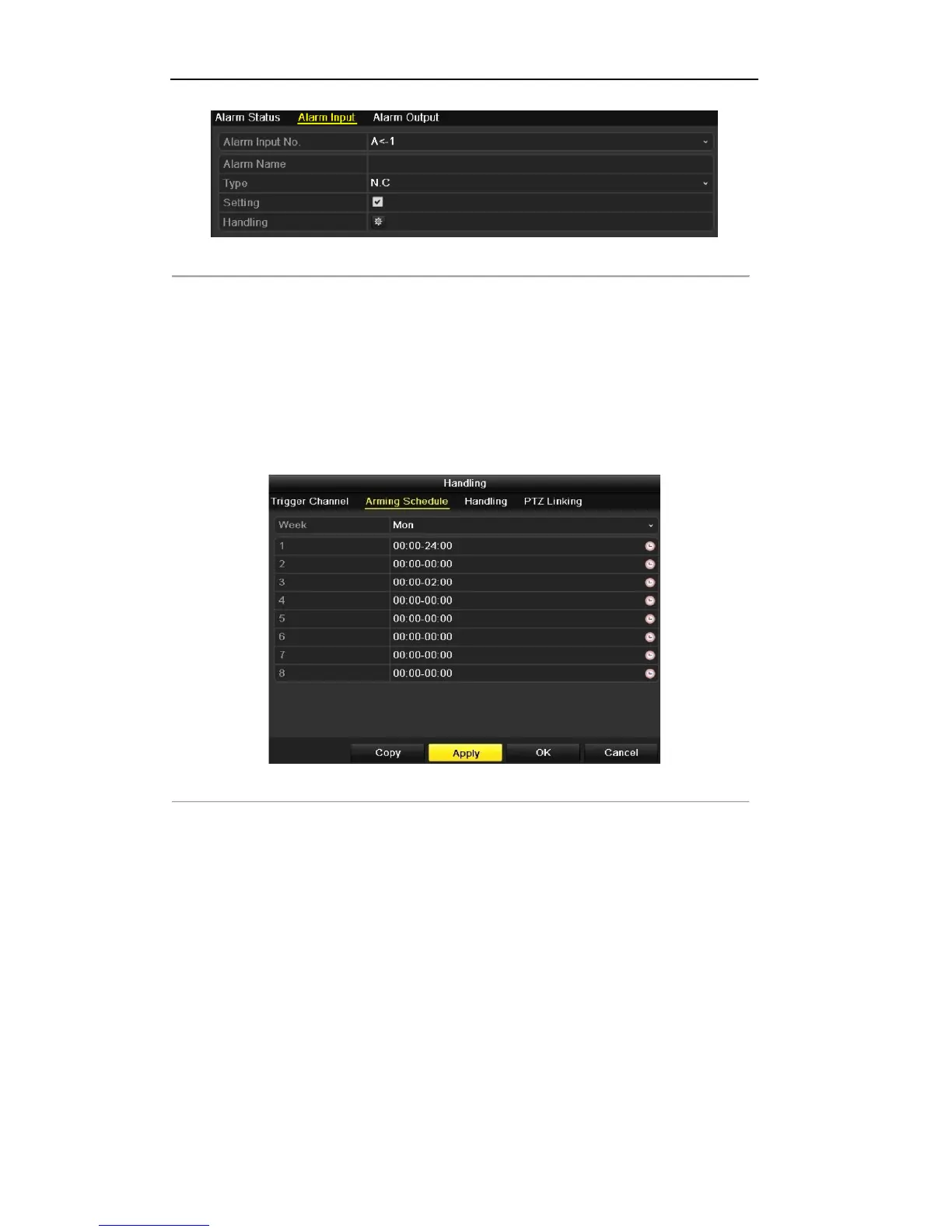

Figure 8.8 Alarm Input Settings Interface
3. Select Trigger Channel tab and select one or more channels which will start to record/capture or
become full-screen monitoring when an external alarm is input. Click Apply to save the settings.
4. Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Set up arming
schedule of other days of a week. You can also use Copy to copy an arming schedule to other days.
Click Apply to save the settings.
Note: Time periods shall not be repeated or overlapped.
5. Select Handling tab to set alarm response actions of the alarm input (please refer to Chapter 8.6).
Figure 8.9 Set Arming Schedule of Alarm Input
6. If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input.
Set PTZ linking parameters and click Apply to save the settings. Click OK to complete the settings of
the alarm input.
Note: Please check whether the PTZ or speed dome supports PTZ linkage.
One alarm input can trigger presets, patrol or pattern of more than one channel. But presets, patrols and
patterns are exclusive.
