User Manual of
DS
-7200-SH/SV&DS-7300-
SH
Series DVR
1
10

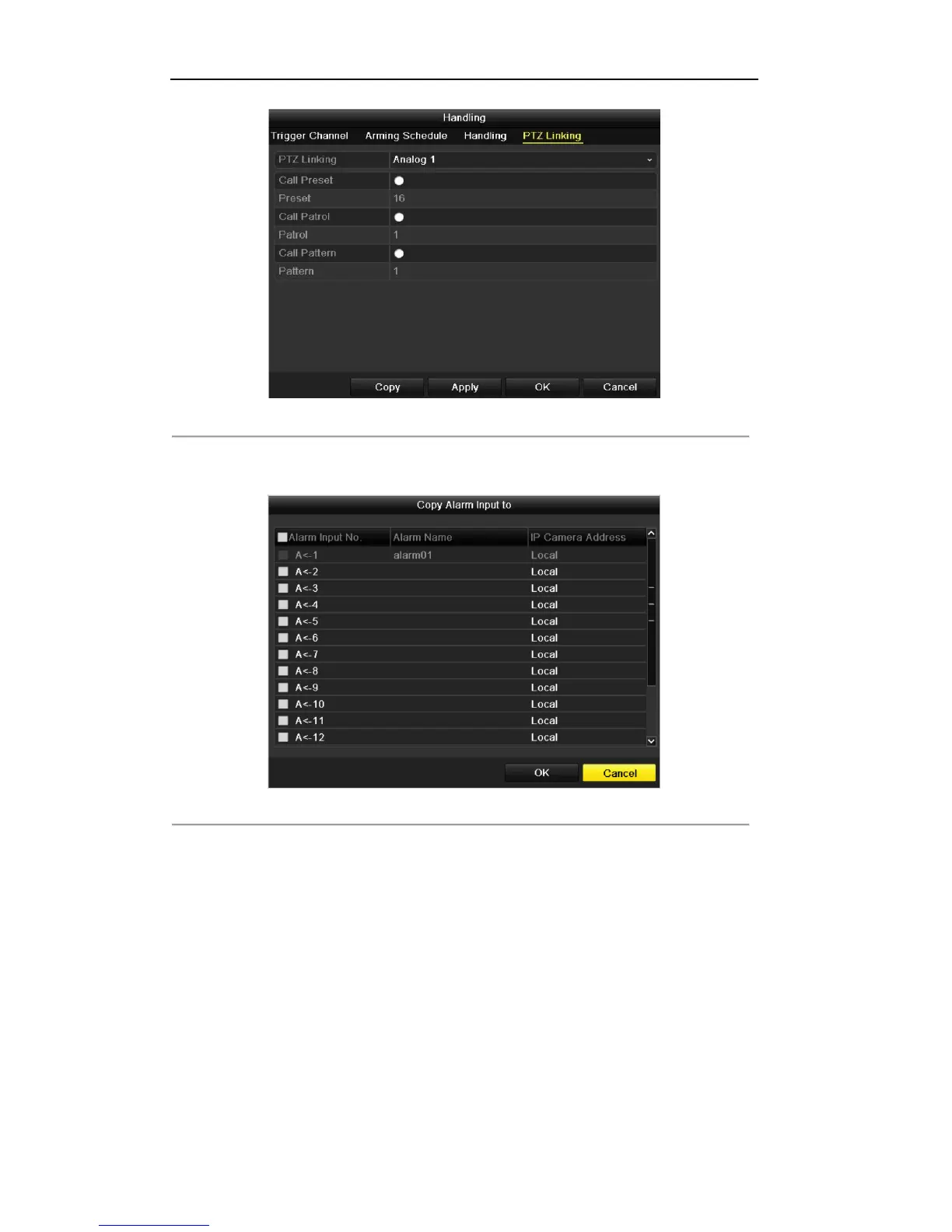

Figure 8.
10
Set PTZ L
inking of Alarm Input
7.
If you want to set handling method of another alarm input, repeat the above steps o
r just copy
the above
settings to it by clicking
Copy
in
Alarm Input Settings interface.
Figure 8.
11
Copy Settings
of Alarm Input
110
112
