User Manual of Digital Video Recorder
186

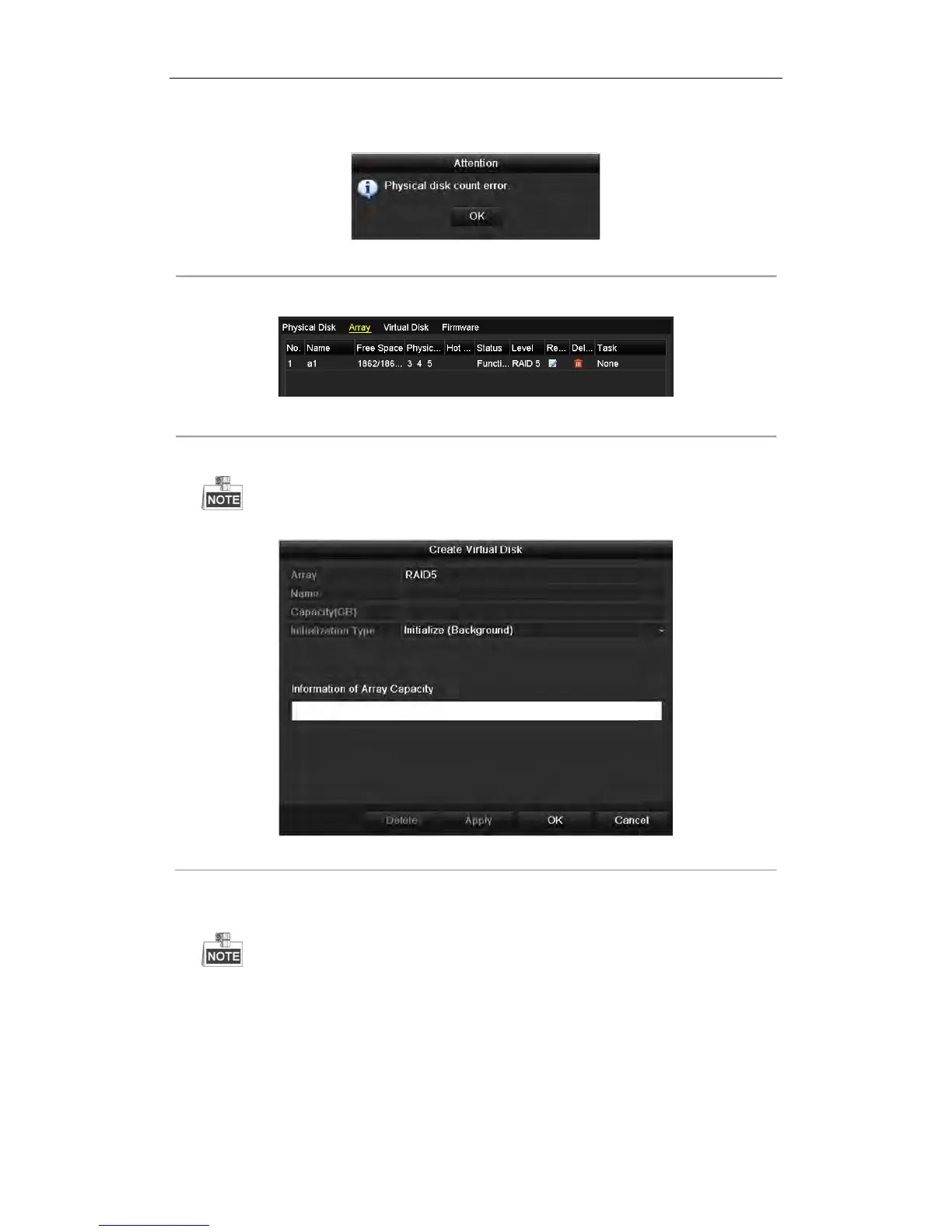

If the number of HDDs you select is not compatible with the requirement of the RAID level, the error
message box will pop up.
Figure 10. 8 Error Message Box
5. You can click Array tab to view the successfully created array.
Figure 10. 9 Array Settings Interface
6. Click to select an array and click Create Vd to enter the Create Virtual Disk interface.
The device supports creating at most 8 virtual disks.
Figure 10. 10 Create Virtual Disk Interface
7. Edit the name of the virtual disk, set the capacity for the virtual disk and select the initialization type for the
virtual disk.
You can also click the Information of Array Capacity area to set the remaining capacity of the array
for the disk.
It is recommended to create one virtual disk of an array.
At least 100GB capacity must be configured for each virtual disk.
There are three initialization types, including Background, Foreground and Fast.
Fast (Not Recommended): The fast initialization usually takes short time and only initializes part of
