User Manual of Digital Video Recorder
36
Or click the button Add All to add all the online cameras automatically. The user name and
password are admin and 12345 by default.
3) Optionally, you can click the button Custom Adding to enter the Custom Adding interface.

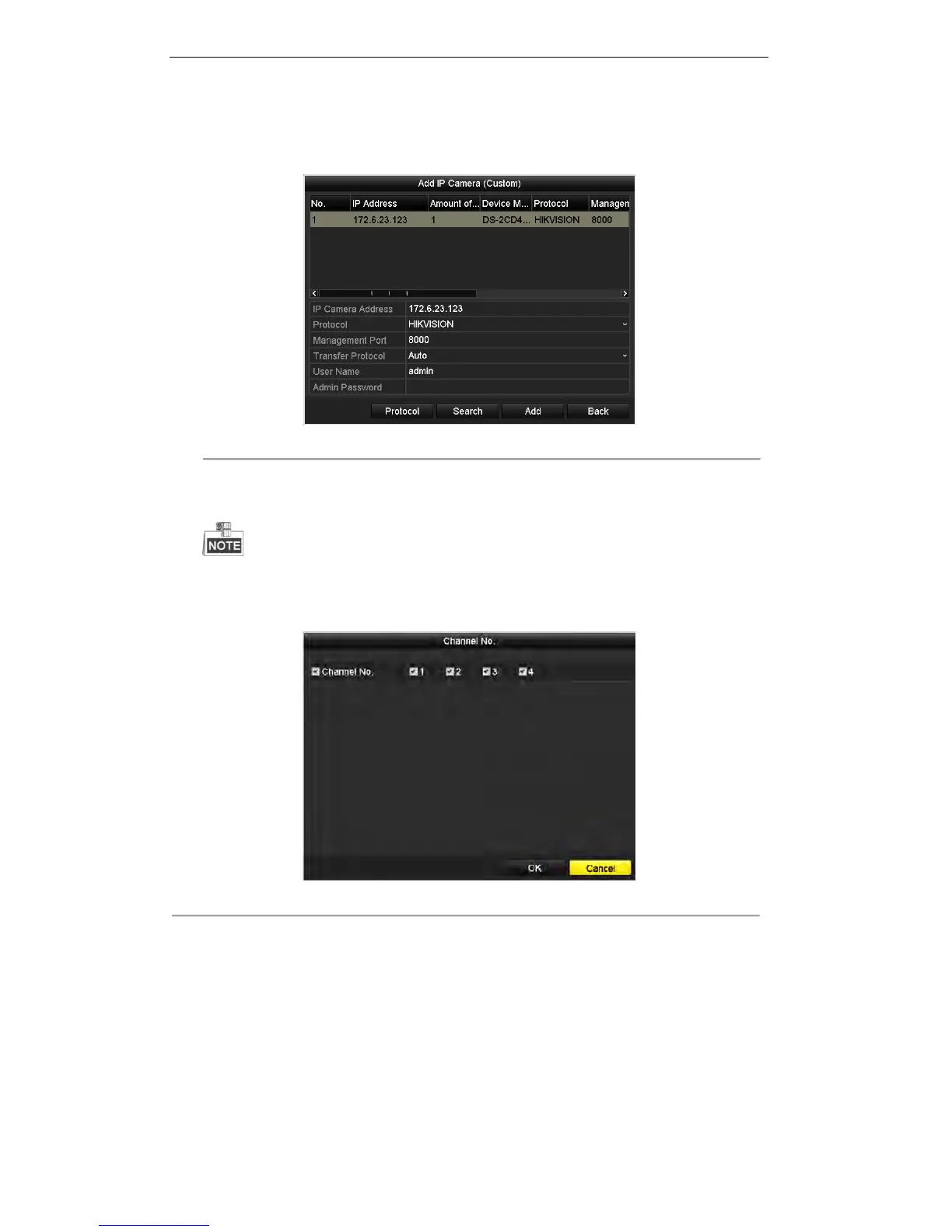

Figure 2. 12 Custom Adding
Input the required information, including the IP address, protocol, management port, user name and admin
password, and then click the button Add to add the camera manually.
The cameras added and not added are differently color coded.
When adding encoding device with multiple channels, check the checkbox in the pop-up window to
select the channels to be added and click OK.
Figure 2. 13 Selecting Multiple Channels
3. Import/Export the configuration file of the IP cameras.
Import the configuration file of IP cameras to the device:
Connect the backup device on which the configuration file is stored to the device.
1) Click the IP Camera Import/Export tab.
