HIKVISION DS-9616NI-I8 User Manual

Network Video Recorder User Manual
117
The encoding parameters for the main stream and sub-stream can be configured in Storage >
Encoding Parameters.
10.2.4 Thumbnails View
With the thumbnails view on the playback interface, you can conveniently locate the required
video files on the time bar.
In the playback mode, move the mouse to the time bar to get the preview thumbnails of the video
files.

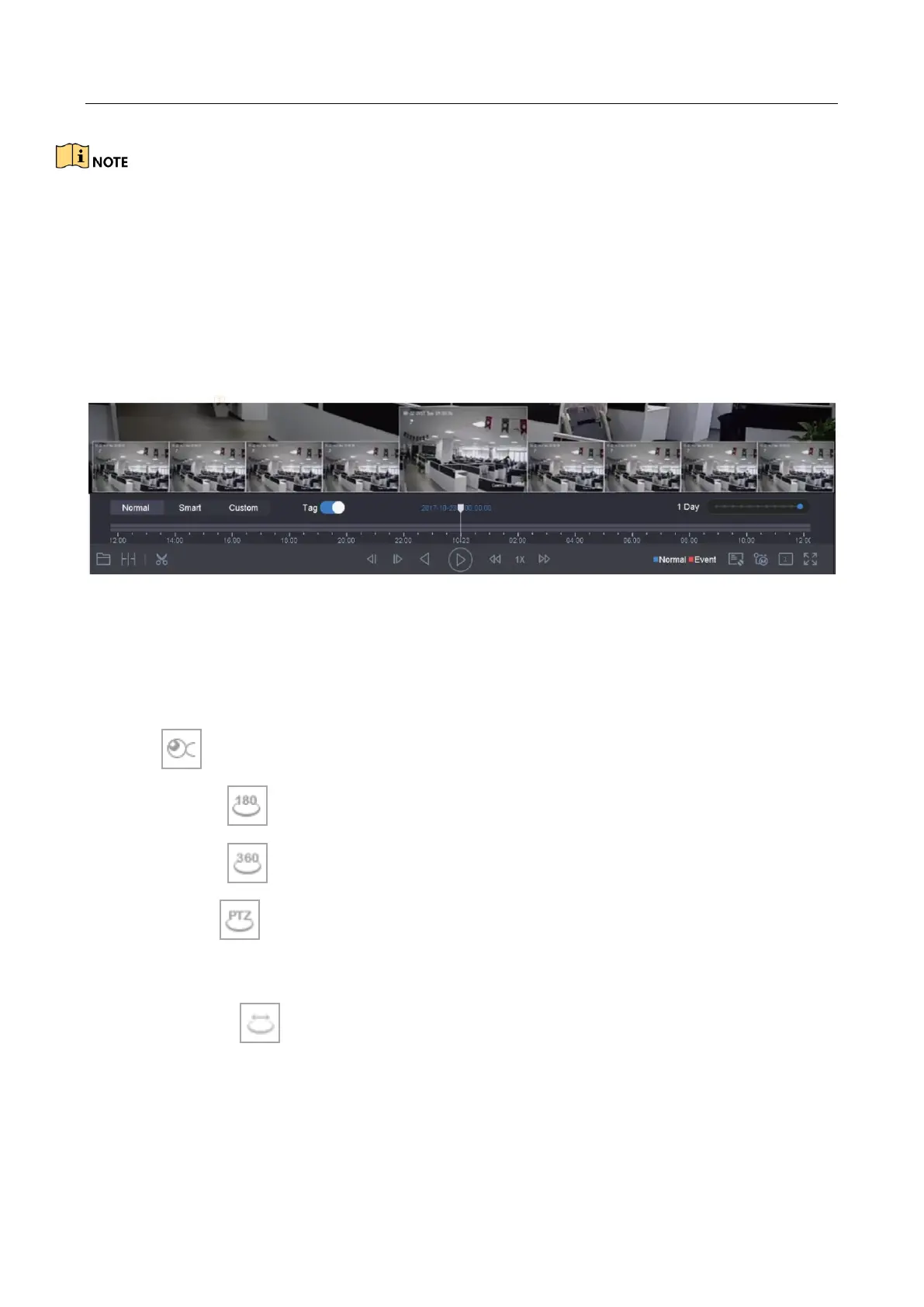

Figure 10-13 Thumbnails View
You can select and click on a thumbnail to enter the full-screen playback.
10.2.5 Fisheye View
You can enter the fisheye expansion view during the video playback.
Click the to enter the fisheye expansion mode.
 180° Panorama ( ): Switch the live view image to the 180° panorama view.
 360° Panorama ( ): Switch the Live View image to the 360° panorama view.
 PTZ Expansion ( ): The PTZ Expansion is the close-up view of a defined area in the fisheye
view or panorama expansion, and it supports the electronic PTZ function, which is also called
e-PTZ.
 Radial Expansion ( ): In the radial expansion mode, the whole wide-angle view of the fisheye
camera is displayed. This view mode is called Fisheye View because it approximates the vision of a
fish’s convex eye. The lens produces curvilinear images of a large area, while distorting the
perspective and angles of objects in the image.

HIKVISION DS-9616NI-I8 Specifications

General

Sequence mode	Yes
Internal memory	4096 MB
Number of users	128 user(s)
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Internal memory type	DDR4
Throughput data rate	256 Mbit/s
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 10
HDD capacity	8000 GB
HDD interface	Serial ATA
Maximum storage capacity	- TB
Number of HDDs installed	-
Number of HDDs supported	8
Total installed storage capacity	16000 GB
Product color	Black
Rack capacity	2U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
