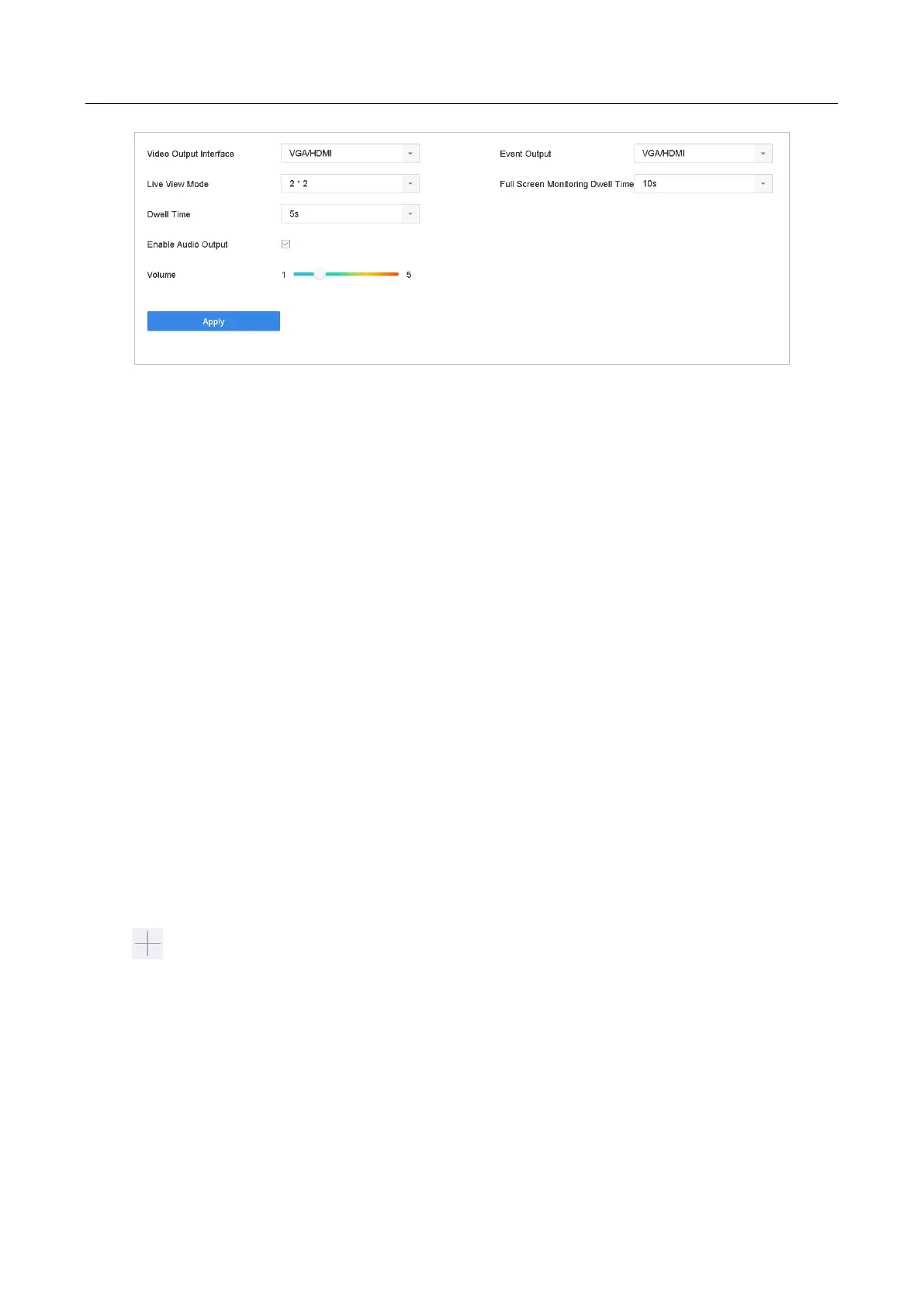

Figure 5-3 Live View-General
Step 2 Configure the Live View parameters.
 Video Output Interface: Select the video output to configure.
 Live View Mode: Select the display mode for Live View, e.g., 2*2, 1*5, etc.
 Dwell Time: The time in seconds to wait between switching of cameras when using auto-switch
in Live View.
 Enable Audio Output: Enable/disable audio output for the selected video output.
 Volume: Adjust the Live View volume, playback and two-way audio for the selected output
interface.
 Event Output: Select the output to show event video.
 Full Screen Monitoring Dwell Time: Set the time in seconds to show alarm event screen.
Step 3 Click OK.
5.4 Configure Live View Layout
5.4.1 Configure Custom Live View Layout
Step 1 Go to System > Live View > View.
Step 2 Click Set Custom Layout.
Step 3 Click on the Custom Layout Configuration interface.
Step 4 Edit the layout name.
Step 5 Select a window division mode from the toolbar.

HIKVISION DS-9616NI-I8 Specifications

General

Sequence mode	Yes
Internal memory	4096 MB
Number of users	128 user(s)
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Internal memory type	DDR4
Throughput data rate	256 Mbit/s
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 10
HDD capacity	8000 GB
HDD interface	Serial ATA
Maximum storage capacity	- TB
Number of HDDs installed	-
Number of HDDs supported	8
Total installed storage capacity	16000 GB
Product color	Black
Rack capacity	2U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
