HIKVISION DS-9616NI-I8 User Manual

Network Video Recorder User Manual
164

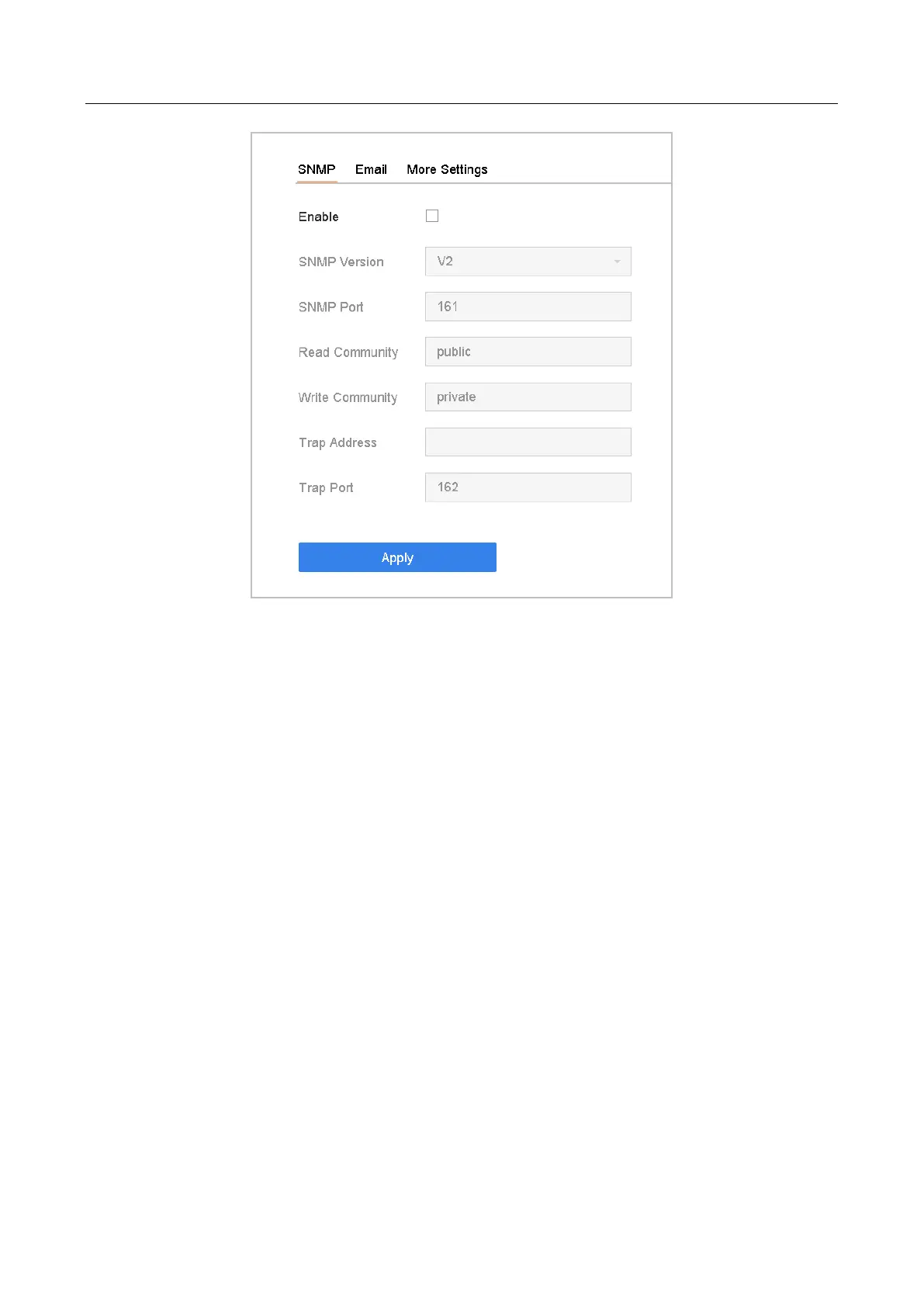

Figure 15-10 SNMP Settings
Step 2 Check Enable. A message will pop up to notify about a possible security risk. Click Yes to continue.
Step 3 Configure the SNMP settings as needed.
 Trap Address: SNMP host IP address.
 Trap Port: Port of the SNMP host.
Step 4 Click Apply.
15.7 Configure Email
Purpose
The system can be configured to send an e-mail notification to all designated users when a
specified event occurs such as when an alarm or motion event is detected, the administrator
password is changed, etc.
Before You Start
The device must be connected to a local area network (LAN) that contains an SMTP mail server.
The network must also be connected to either an intranet or the Internet depending on the
location of the e-mail accounts to which you want to send notifications.
Step 1 Go to System > Network > Advanced > Email.

HIKVISION DS-9616NI-I8 Specifications

General

Sequence mode	Yes
Internal memory	4096 MB
Number of users	128 user(s)
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Internal memory type	DDR4
Throughput data rate	256 Mbit/s
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 10
HDD capacity	8000 GB
HDD interface	Serial ATA
Maximum storage capacity	- TB
Number of HDDs installed	-
Number of HDDs supported	8
Total installed storage capacity	16000 GB
Product color	Black
Rack capacity	2U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
