Network Video Recorder User Manual
188

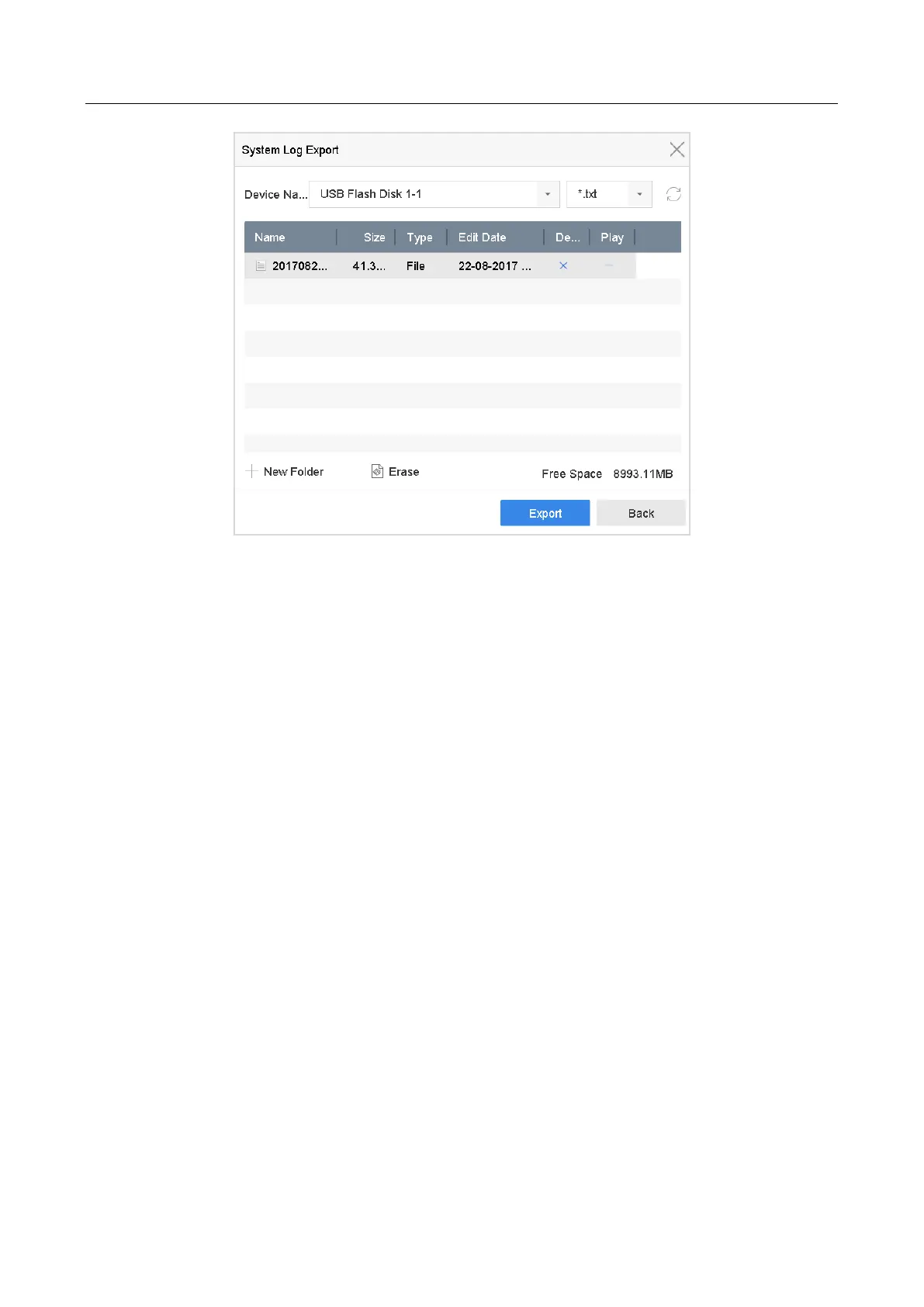

Figure 18-6 Export Log Files
Step 3 On the Export interface, select the storage device from Device Name.
Step 4 Select the format of the log files to be exported. Up to 15 formats are selectable.
Step 5 Click Export to export the log files to the selected storage device.
Click the New Folder button to create a new folder in the storage device.
Click the Format button to format the storage device before exporting the log(s).
18.3 Import/Export IP Camera Configuration Files
Purpose
The IP camera information, including the IP address, manage port, password of admin, etc., can be
saved in Microsoft Excel format and backed up to the local device. The exported file can be edited
on a PC, including adding or deleting the content, and copying the setting to other devices by
importing the Excel file to it.
Before You Start
When importing the configuration file, connect the storage device that contains the configuration
file to the NVR.
Step 1 Go to Camera > IP Camera Import/Export.
Step 2 Click the IP Camera Import/Export tab, and the detected external device contents appear.
Step 3 Export or import the IP camera configuration files.

Table of Contents

Other manuals for HIKVISION DS-9616NI-I8

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-9616NI-I8 and is the answer not in the manual?

HIKVISION DS-9616NI-I8 Specifications

General IconGeneral
Sequence modeYes
Internal memory4096 MB
Number of users128 user(s)
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Internal memory typeDDR4
Throughput data rate256 Mbit/s
Video input channels16 channels
Alarm output channels4
Supported resolutions3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supportedH.264, H.264+, H.265, MPEG4
Analog signal format systemNTSC, PAL
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RAID levels0, 1, 5, 10
HDD capacity8000 GB
HDD interfaceSerial ATA
Maximum storage capacity- TB
Number of HDDs installed-
Number of HDDs supported8
Total installed storage capacity16000 GB
Product colorBlack
Rack capacity2U
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
