Network Video Recorder User Manual
165

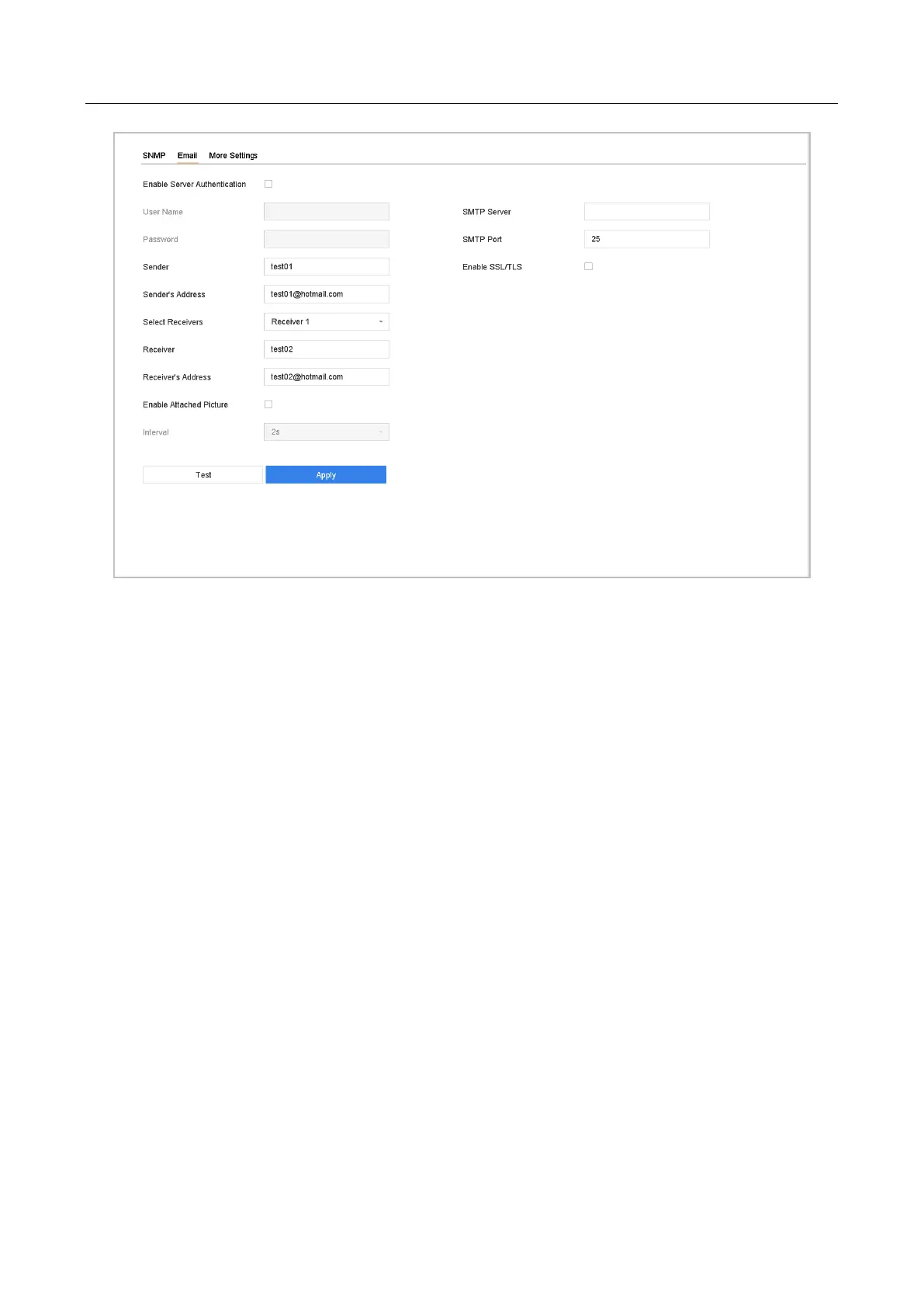

Figure 15-11 E-mail Settings
Step 2 Configure the following e-mail settings.
Enable Server Authentication: Check to enable the function if the SMTP server requires user
authentication, and enter the user name and password accordingly.
SMTP Server: IP address of SMTP Server or host name (e.g., smtp.263xmail.com).
SMTP Port: The default TCP/IP port used for SMTP is 25.
Enable SSL/TLS: Check to enable SSL/TLS if required by the SMTP server.
Sender: The senders name.
Sender's Address: The sender's Address.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.
Receiver: The receivers name.
Receiver's Address: The e-mail address of the user to be notified.
Enable Attached Picture: Check to send e-mail with attached alarm images. The interval is the
time between sending two subsequent alarm images.
Step 3 Click Apply.
Step 4 (Optional) Click Test to send a test e-mail.
15.8 Configure Ports
You can configure different types of ports to enable relevant functions.
