Network Video Recorder User Manual
76
Follow the procedure to move the PTZ camera according to the predefined patterns.
Step 1 Click on the quick settings toolbar of the PTZ camera’s Live View.
Step 2 The PTZ control panel displays on the right of the interface.
Step 3 Click Pattern to configure pattern.

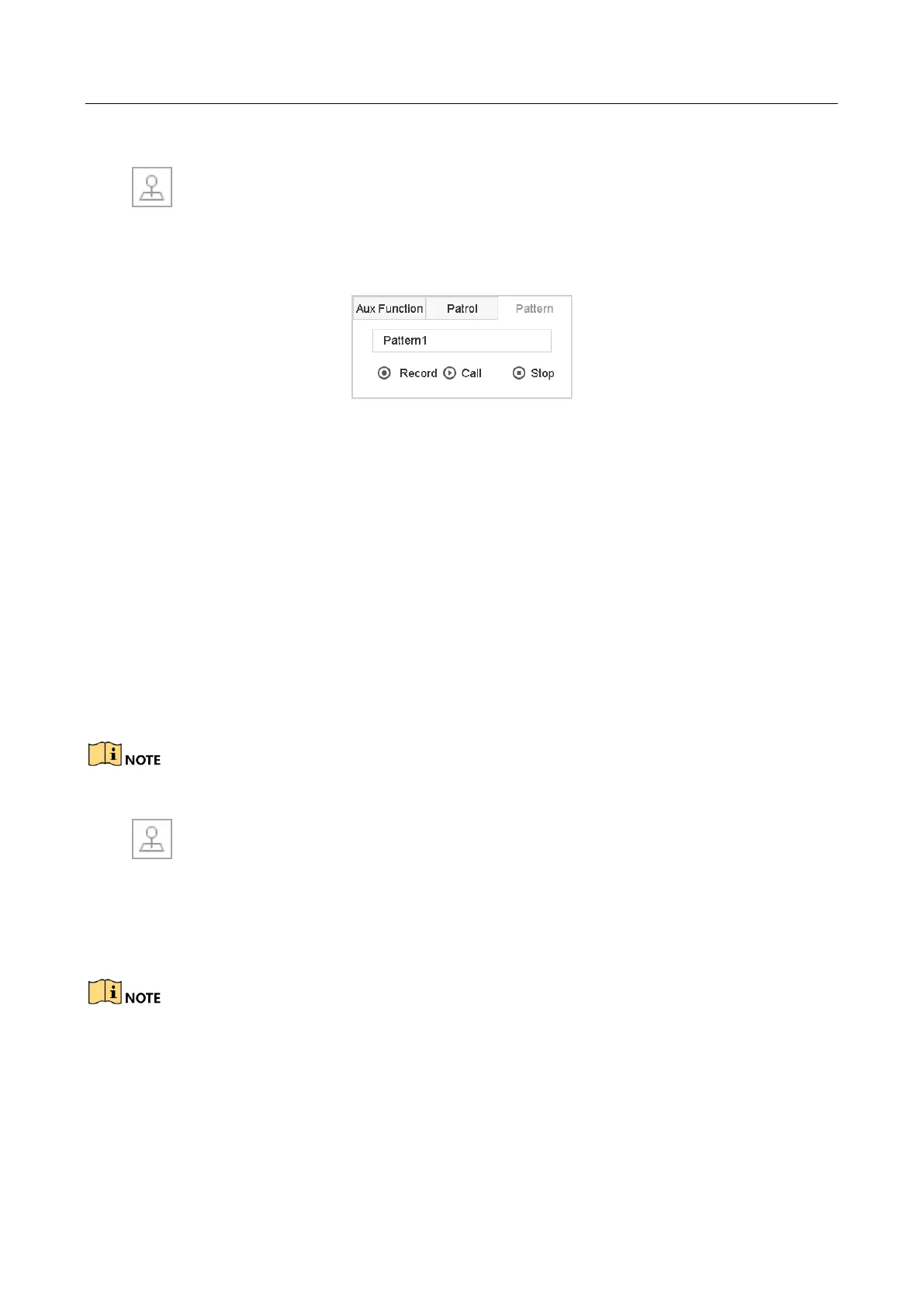

Figure 6-13 Pattern Configuration
Step 4 Select a pattern in the text field.
Step 5 Click Call to start the pattern.
Step 6 (Optional) Click Stop to stop the pattern.
6.3.7 Set Linear Scan Limits
Before You Start
Make sure the connected IP camera supports the PTZ function and is properly connected.
Purpose
Linear Scan trigger a scan in the horizontal direction in the predefined range.
This function is supported only by some certain models.
Step 1 Click on the quick settings toolbar of the PTZ camera’s Live View.
Step 2 The PTZ control panel displays on the right of the interface.
Step 3 Click the directional buttons to wheel the camera to the location of where you want to set the
limit, and click Left Limit or Right Limit to link the location to the corresponding limit.
The speed dome linear scans from the left limit to the right limit, and you must set the left limit on
the left side of the right limit. Also, the angle from the left limit to the right limit must be no more
greater than 180º.
