Network Video Recorder User Manual
63
Chapter 5 Live View
Live View displays the video image getting from each camera in real time.
5.1 Start Live View
Click on the main menu bar to enter the Live View.
 Select a window and double click a camera from the list to play the video from the camera in
the selected window.
 Use the toolbar at the playing window bottom to realize the capture, instant playback, audio
on/off, digital zoom, live view strategy, show information and start/stop recording, etc.
5.1.1 Digital Zoom
Digital Zoom zooms into the live image in different magnifications (1x to 16x).
Step 1 In the Live View mode, click from the toolbar to enter the digital zoom interface.
Step 2 Move the sliding bar or scroll the mouse wheel to zoom in/out the image to different
magnifications (1x to 16x).

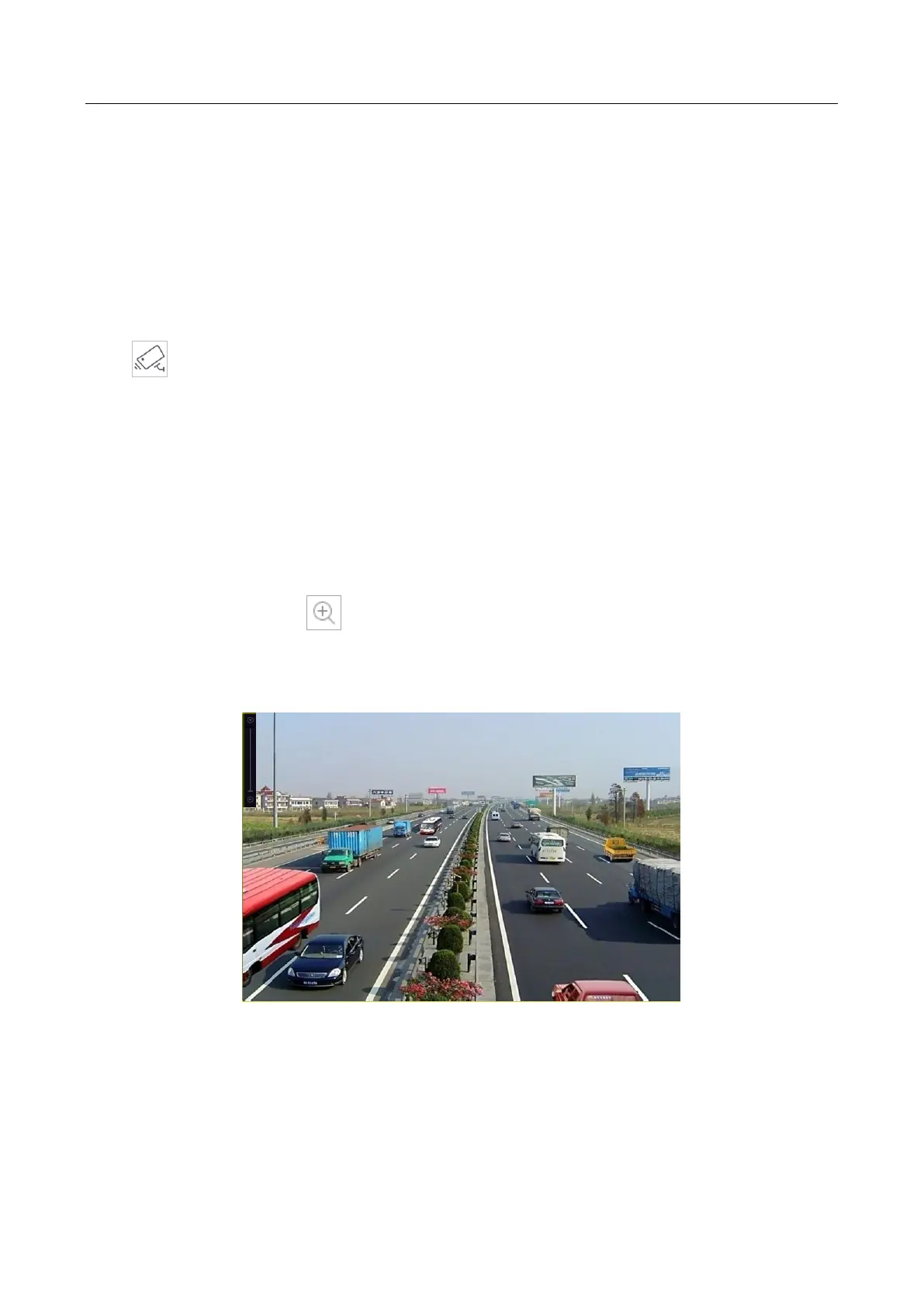

Figure 5-1 Digital Zoom
5.1.2 Fisheye View
The device supports the fisheye camera expansion in Live View or playback mode.

HIKVISION DS-9616NI-I8 Specifications

General

Sequence mode	Yes
Internal memory	4096 MB
Number of users	128 user(s)
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Internal memory type	DDR4
Throughput data rate	256 Mbit/s
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 10
HDD capacity	8000 GB
HDD interface	Serial ATA
Maximum storage capacity	- TB
Number of HDDs installed	-
Number of HDDs supported	8
Total installed storage capacity	16000 GB
Product color	Black
Rack capacity	2U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
