Network Video Recorder User Manual
40
1.4.4 DS-8600NI Series

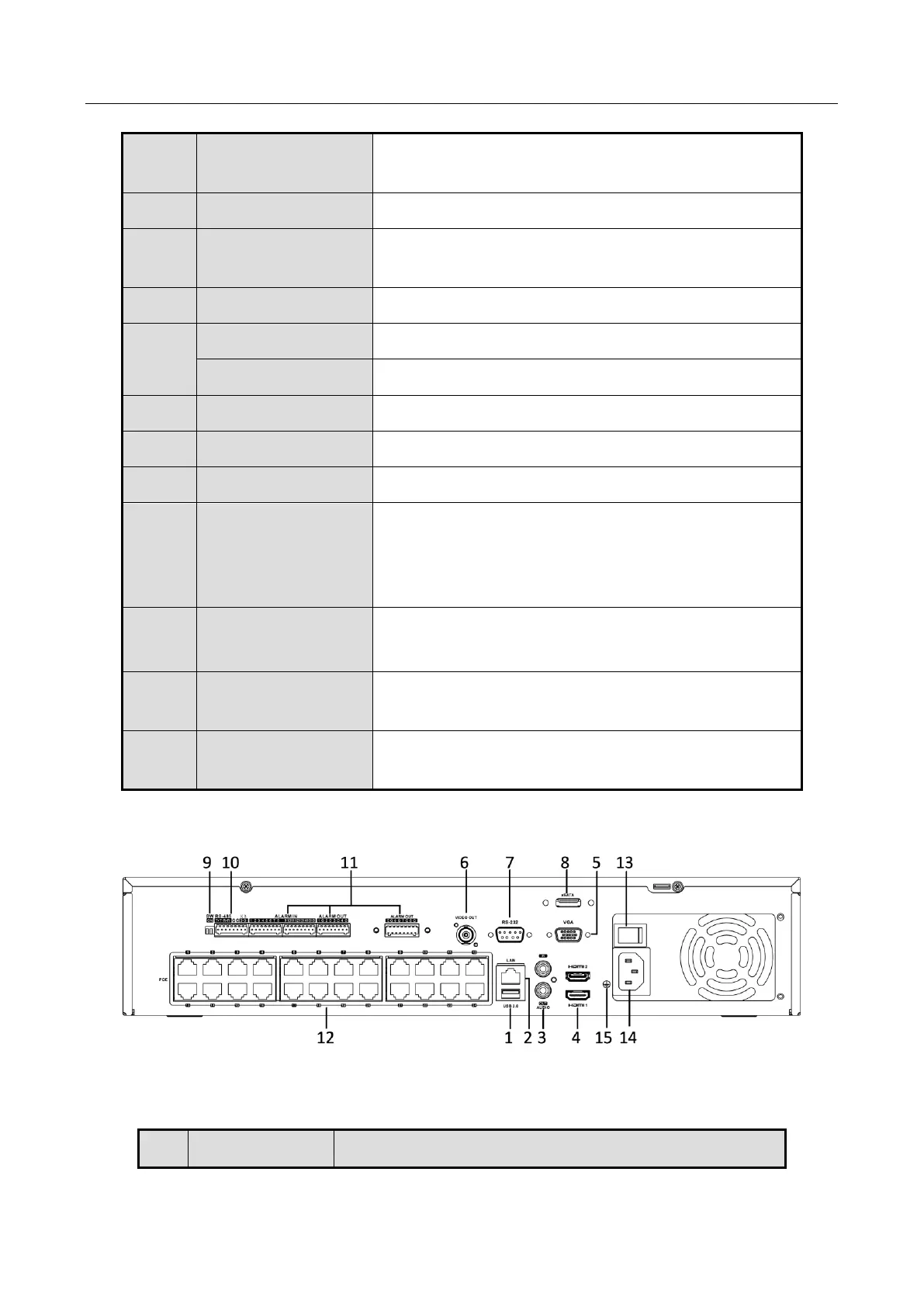

Figure 1-15 DS-8600NI Series
Table 1-10 Panel Description
5
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
6
RS-232 Interface
Connector for RS-232 devices.
7
VGA
DB9 connector for VGA output. Display local video
output and menu.
8
RS-485 Interface
Half-duplex connector for RS-485 devices.
9
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR starts up).
11
Power Switch
Switch for turning on/off the device.
12
AC 100V ~ 240V
100V to 240VAC power supply.
13
Network Interfaces
with PoE function
(supported by
DS-7700NI-I4/P)
Network interfaces for the cameras and to provide
power over Ethernet.
14
SW Terminal Switch
Up position is not terminated.
Down position is terminated with 120Ω resistance.
15
CVBS Video Output
BNC connector for audio output. This connector is
synchronized with CVBS video output.
16
eSATA Interface
(Optional)
Connects external SATA HDD, CD/DVD-RM.
No.
Name
Description

Table of Contents

Other manuals for HIKVISION DS-9616NI-I8

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-9616NI-I8 and is the answer not in the manual?

HIKVISION DS-9616NI-I8 Specifications

General IconGeneral
Sequence modeYes
Internal memory4096 MB
Number of users128 user(s)
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Internal memory typeDDR4
Throughput data rate256 Mbit/s
Video input channels16 channels
Alarm output channels4
Supported resolutions3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supportedH.264, H.264+, H.265, MPEG4
Analog signal format systemNTSC, PAL
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RAID levels0, 1, 5, 10
HDD capacity8000 GB
HDD interfaceSerial ATA
Maximum storage capacity- TB
Number of HDDs installed-
Number of HDDs supported8
Total installed storage capacity16000 GB
Product colorBlack
Rack capacity2U
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
