Step 2 Check Enable RAID.
Step 3 Click Apply.
Step 4 Reboot the device to have settings take effect.
8.1.2 One-Touch Creation
Purpose
One-touch configuration creates the disk array. By default, the array type created by one-touch
configuration is RAID 5.
Before You Start
 Enable the RAID function. For details, refer to Chapter 8.1.1 Enable a RAID.
 Install at least 3 HDDs. If more than 10 HDDs are installed, 2 arrays will be created. To maintain
reliability and stability running of the HDDs, it is recommended to use of enterprise-level HDDs of
the same model and capacity.
Step 1 Go to Storage > RAID Setup > Physical Disk.

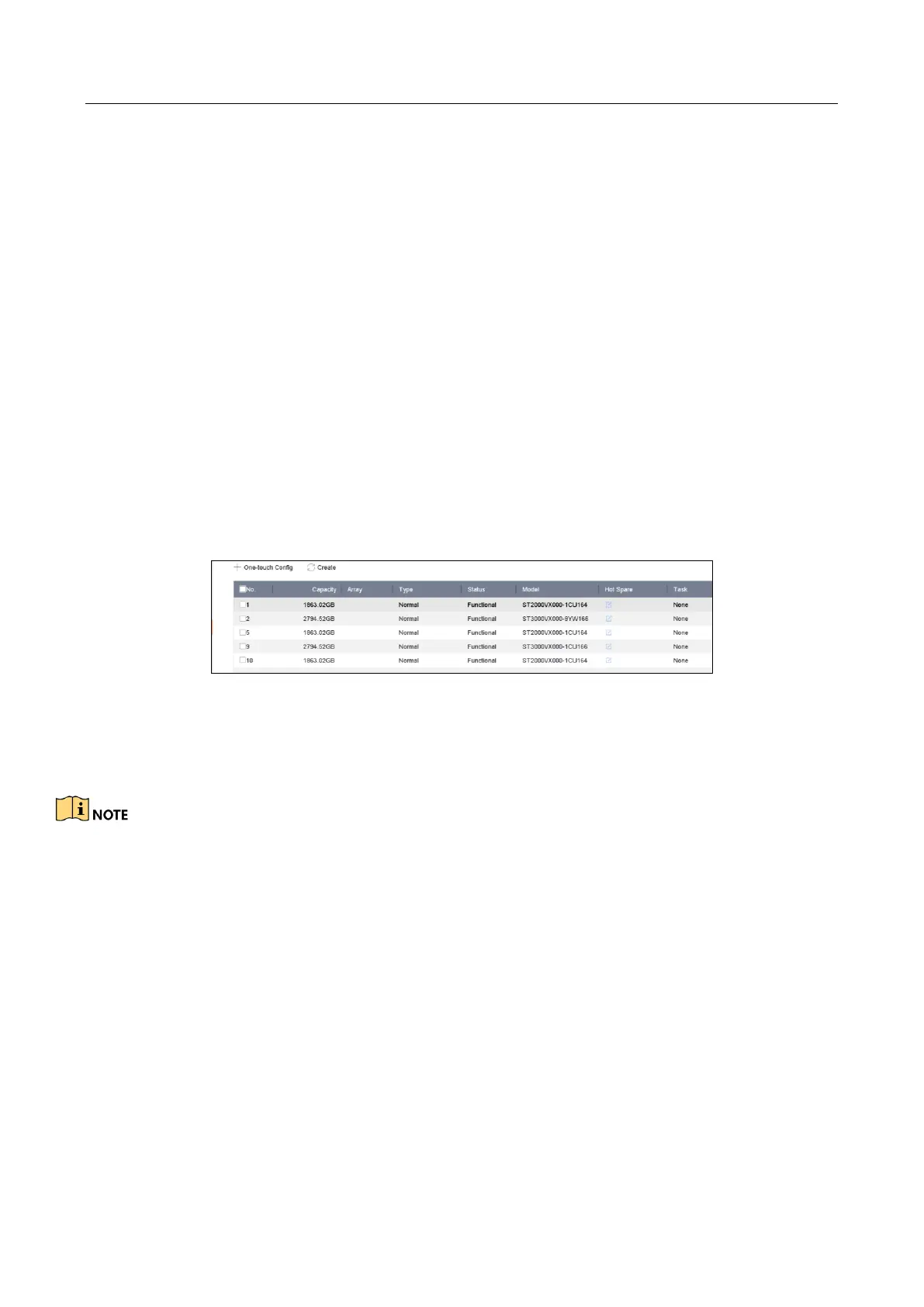

Figure 8-2 Physical Disk
Step 2 Click One-touch Config.
Step 3 Edit the array name in Array Name and click OK to start configuring.
If you install 4 or more HDDs, a hot spare disk for array rebuilding will be created.
Step 4 When a message box pops up when the array creation is completed, click OK on it.
Step 5 Optionally, the device will automatically initialize the created array. Go to Storage > RAID Setup >
Array to view the information of the created arrray.
8.1.3 Manual Creation
Purpose
Manually create a RAID 0, RAID 1, RAID 5, RAID 6, or RAID 10 array.
Step 1 Go to Storage > RAID Setup > Physical Disk.
Step 2 Click Create.
