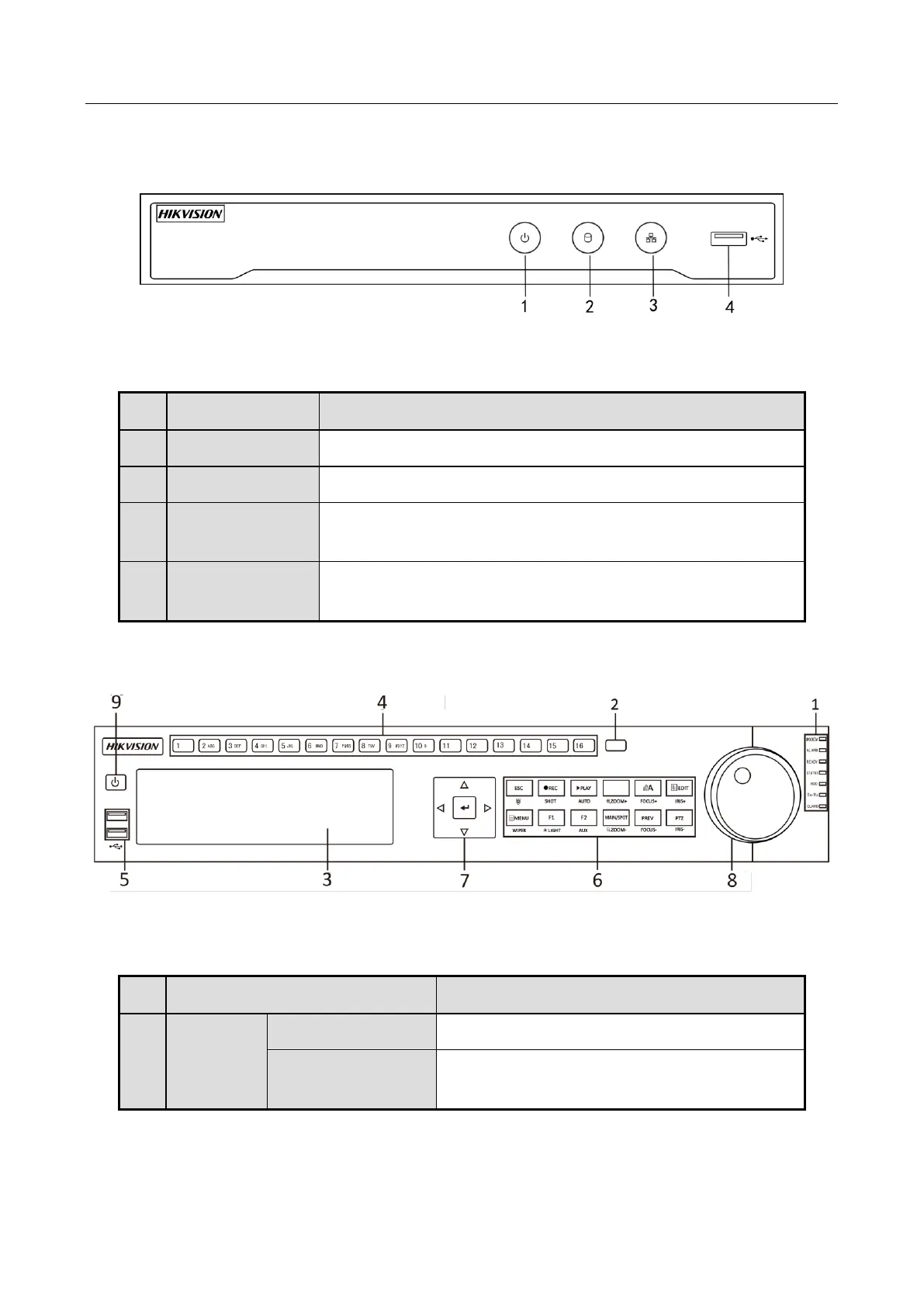

1.1.3 DS-7600NI Series
Figure 1-5 DS-7600NI Series
Table 1-3 Panel Description
1.1.4 DS-8600NI Series
Figure 1-6 DS-8600NI Series
Table 1-4 Panel Description
No.
Name
Connections
1
POWER
Turns green when device is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Connections
1
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Ready LED is normally blue, indicating that the
device is functioning properly.
