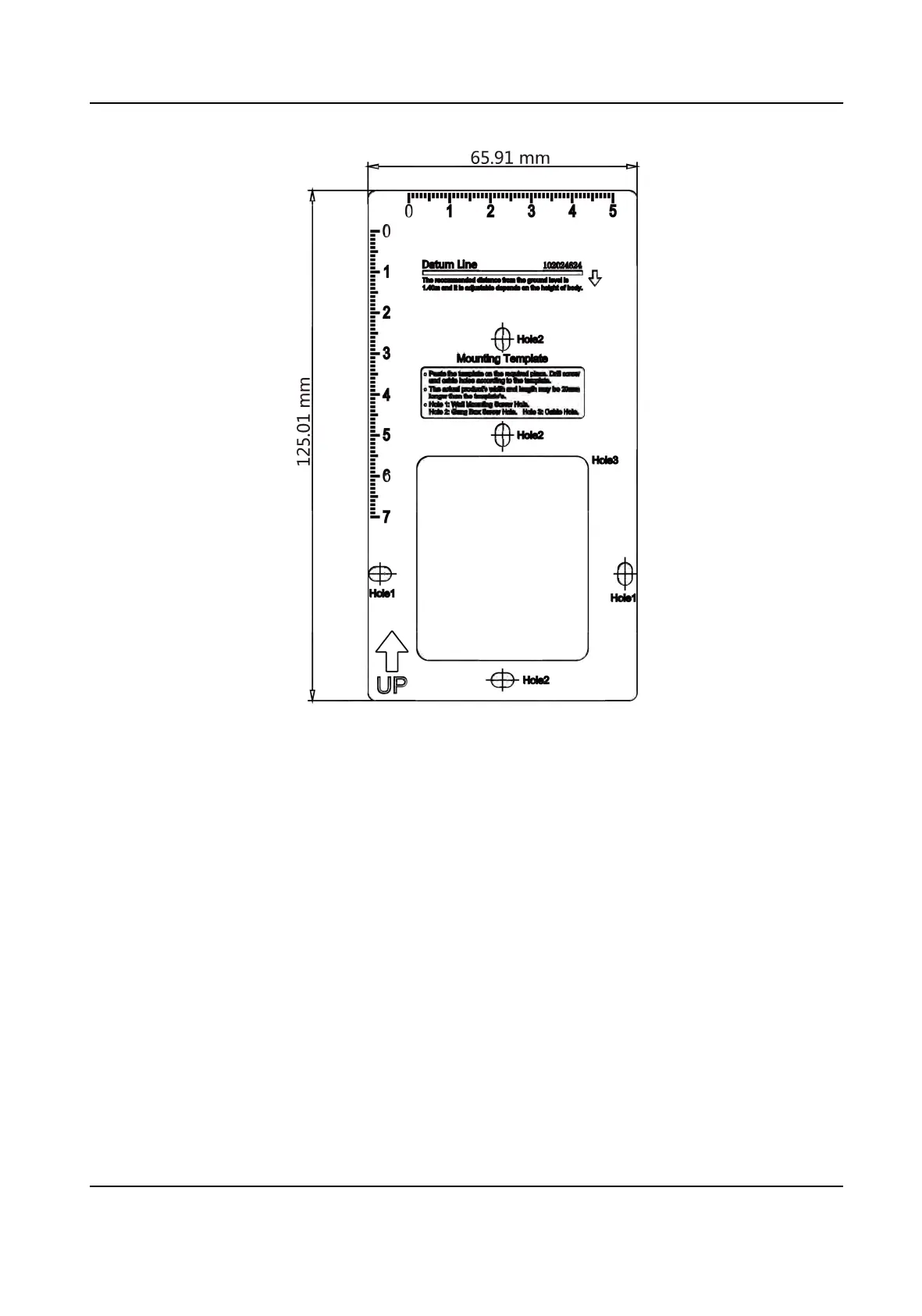

Figure 3-5 Mounng Template
2. Drill 2 holes on the w
all or other surface according to the Hole 1 on the mounng template.
3. Insert the plasc sleeve of the provided expansion screw into the punched hole.
4. Ins
tall the mounng plate on the wall with the 2 supplied screws (SC-KA4×22-SUS).
