33
___________________________________________________________________
Chapter 5 Advanced Measurement Functions
___________________________________________________________________
Using the
EXT. MEMO
terminals, the same effect as the
MEMO
key can be obtained.
1. Using a blade screwdriver or a similar tool, insert the
individual leads into the terminal apertures. (Leads are not
supplied.)

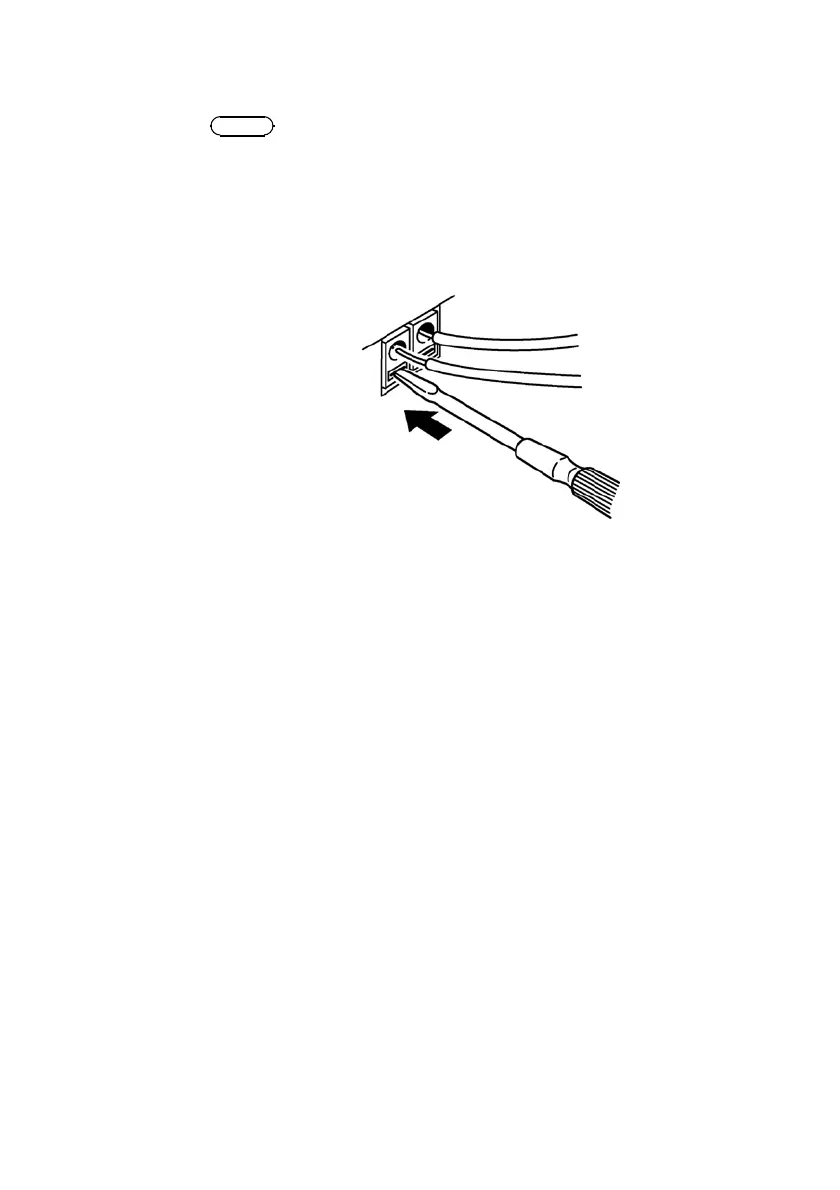

When inserting or removing the leads, push in the terminal
button with a screwdriver as shown in the figure below.
Recommended wire
Single strand: 1.0 mm dia.
size
(AWG #18)
multi-strand: 0.75 mm
2
Usable limits
Single strand: 0.4 to 1.0 mm dia.
(AWG #26 to #18)
multi-strand: 0.3 to 0.75 mm
2
(AWG #22 to #20)
minimum strand diameter: 0.18 mm
Standard insulation
10 mm
stripping length
Button pressing tool
Blade screw driver
(tip width 2.6 mm)
