Chapter 5 Advanced Measurement Functions
___________________________________________________________________
CS
MSE
HS
Tem
p
erature of batter
y：
25
Ca
p
acit
y
of lead-acid batter
y（
Ah
）
I
n
t
e
r
n
a
l
r
e
s
i
s
t
a
n
c
e
(
m
Ω
)
5.10 Internal Resistance of Lead-Acid
Batteries

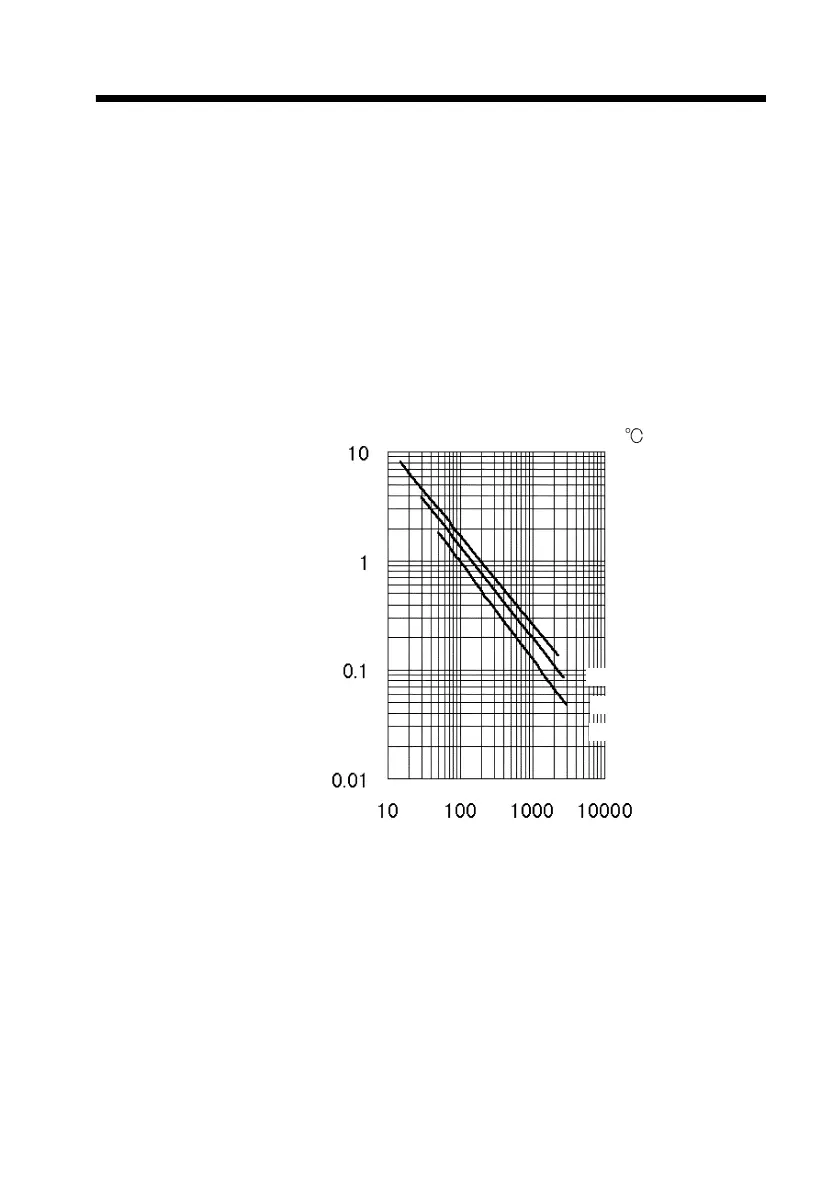

This shows the relationship between the capacity for lead-
acid batteries and the initial value for internal resistance.
(Quote: Text from battery fitters qualification lecture notes,
Battery Industry Association) The terms CS, HS, and MSE
appearing in the figure are battery types defined by JIS
(Japanese Industrial Standards).
CS : Clad type stationary lead-acid battery
HS : High rate discharge paste type stationary lead-acid
battery
MSE : Seal type stationary lead-acid battery
