Chapter 5 Advanced Measurement Functions
___________________________________________________________________
NOTE
Effective resistance
Reactance
Im
p
edance

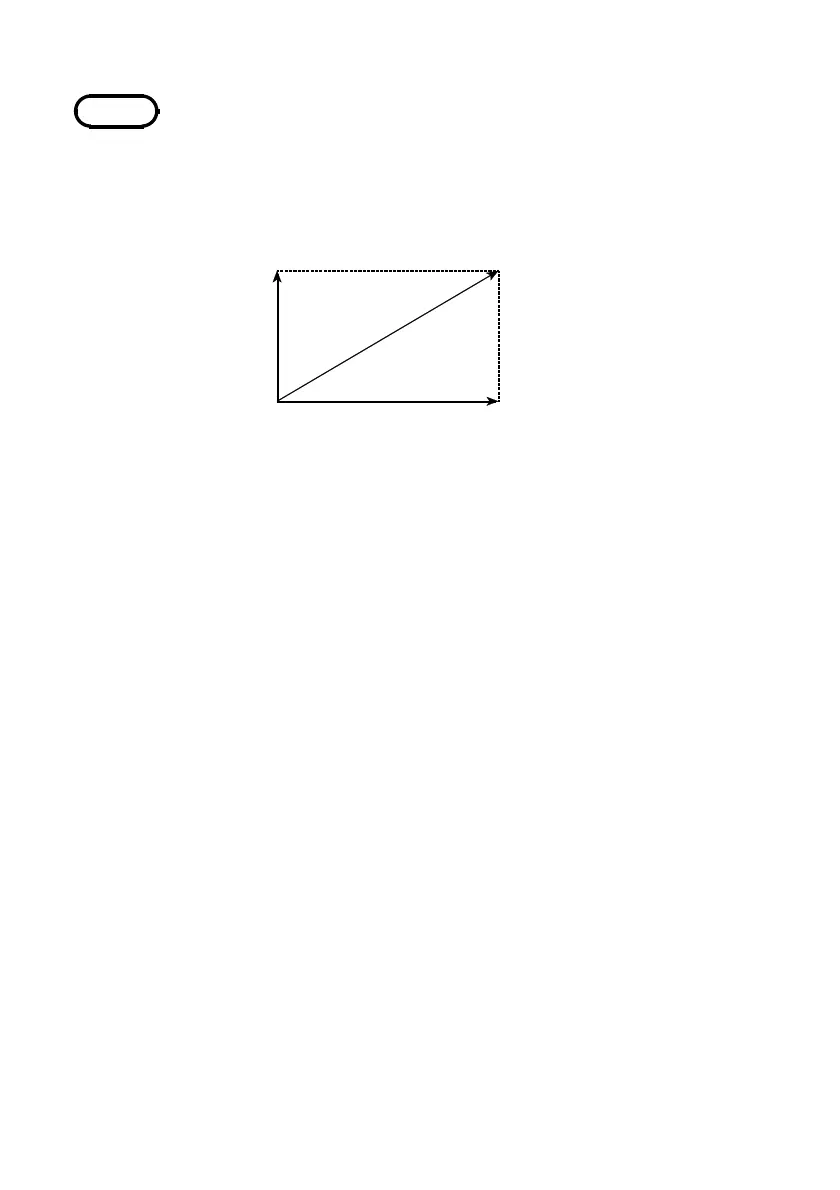

In the 3550, a synchronized wave detection system is used,
whereby the internal impedance is separated into effective
resistance and reactance, and the resistive component only
displayed.
