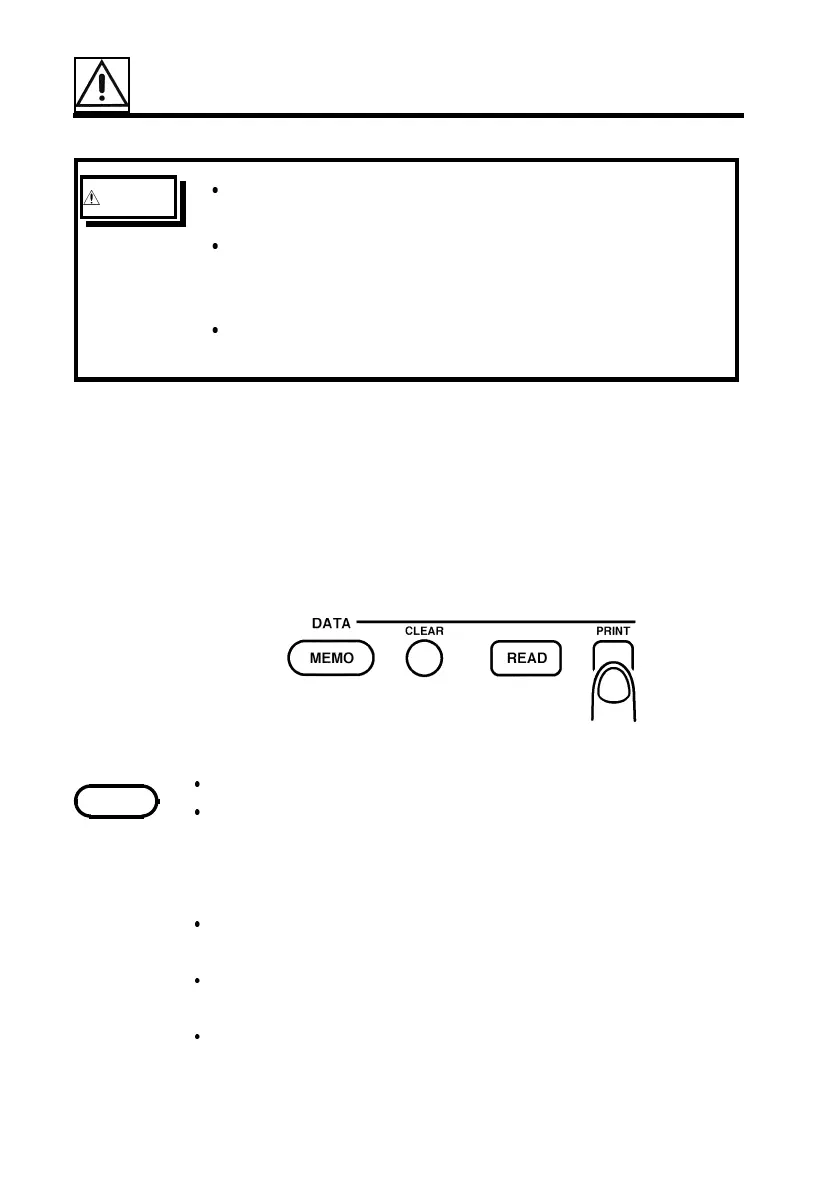

Chapter 5 Advanced Measurement Functions
___________________________________________________________________
WARNING
For safety, never connect the 3550 to the printer
during measurement.
To prevent electric shock, before using this tester,
fit the supplied dust cover for the printer interface
over the PRINT terminal.
To avoid damage to the product, do not apply
voltage to the PRINT terminal.
NOTE
5.2.4 Printin
Print the measurement value stored in memory as follows.
1. Disconnect the lead from the tested battery.
2. Connect this tester to the 9203 DIGITAL PRINTER with the
9425 CONNECTION CABLE (2 m). (Refer to the printer
instruction manual for how to make printer settings.)
3. Press the
PRINT
key. "Prnt" appears on the screen and the
data is printed.
4. To stop the printing, press the
PRINT
key.
Use the HIOKI 9203 DIGITAL PRINTER.
It is also possible to connect a general-purpose printer with a
Centronics interface. The connector used for this unit is a 20-
pin half-pitch D-subminiature connector, DHA-RC20-R132N
(Daiichi Electronics) or equivalent.
It is not possible to print data while measurement is taking
place.
When printing comparator results, both a flashing "WARNING"
and a constant "WARNING"areprintedas"Warn."
When "
DATA
" does not appear at the upper right of the screen
(there is no data in memory), printing is not possible.
