Replacing the Test Lead’s Tip Pin
For model L2020
1
Turn off the instrument and remove the test lead.
2

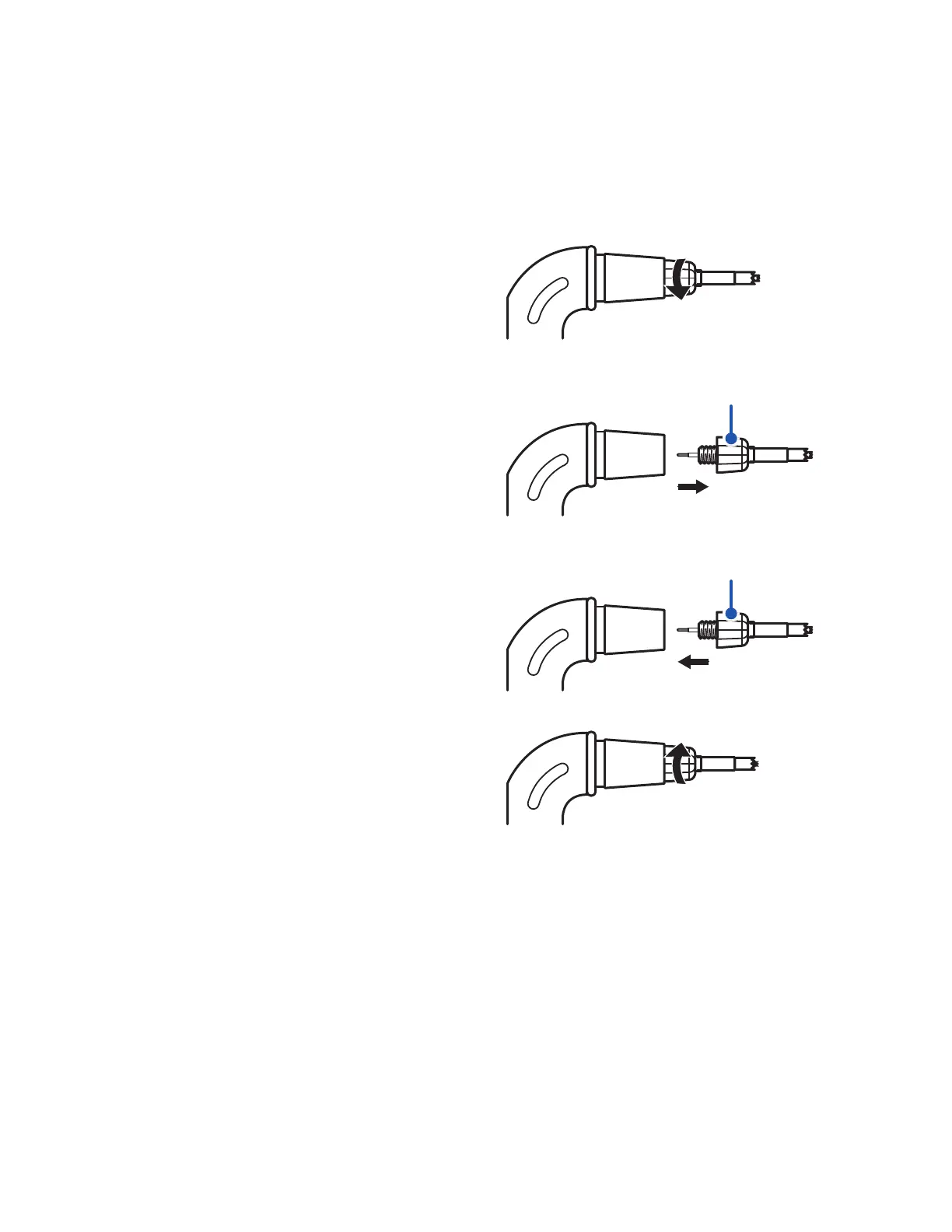

Rotate the grip to loosen it.
Beware of injury since the tip has
a sharp point.
3
Remove the tip pin.
9465-90 Tip Pin
4
Replace with a new tip pin.
9465-90 Tip Pin
5
Rotate the grip to fasten it.
Be sure to fasten it tightly.
6
To avoid broken wires and contact failures, check that the
FDEOHLV¿UPO\KHOG
7
Check the performance.
Measure an object to make sure that the measured resistance is correct
before using it.
