Single-phase Energy Meter Comparison Function [Setting Wh]
4

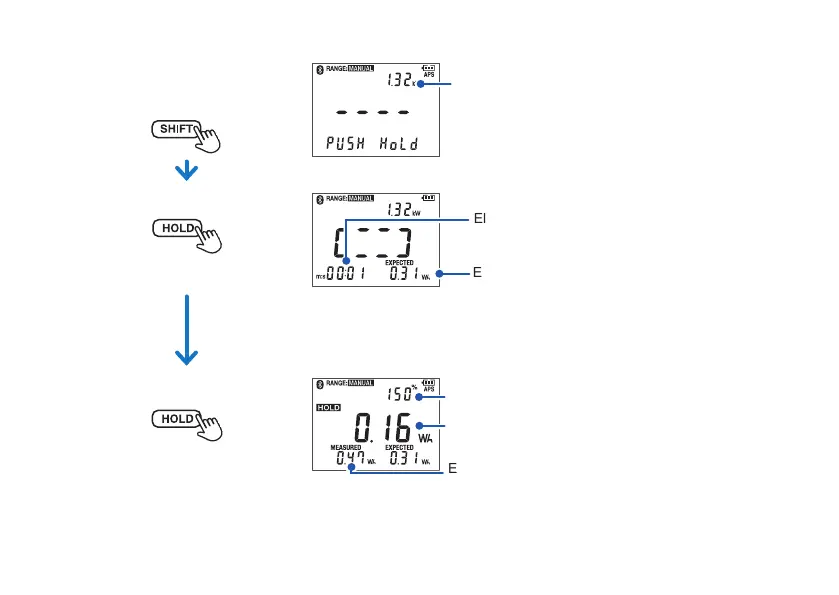

Set the instrument to power
integration mode.
Single-phase active power (measured value)
5
Start integration.
Energy (theoretical value)
Elapsed time
• Only the positive (consumption) active power is added. Negative
(generation) active power is not added.
• Range is xed when integration starts. Change the range before starting
to integrate a large power quantity or for an extended period of time.
6
Stop integration.
Energy ratio (Measured value/theoretical value)
Energy difference (Measured value − theoretical
value)
Energy (Measured value)
When the HOLD key is pressed during integration stop, the integrated energy clears and returns to the display
shown in Step 4.
