44

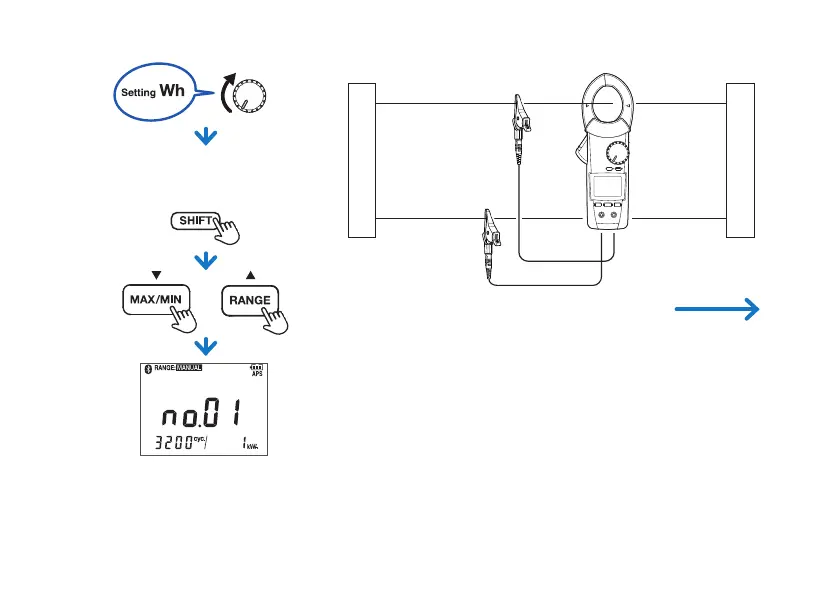

Single-phase Energy Meter Comparison Function [Setting Wh]
1
L/R/A
N
3
Clamp and clip
Power supply side
Load side
Red
Black
To next page
* Select xed energy mode if the energy meter’s disc rotates, or if
its LED ashes, quickly.
The constant can be changed.
"Watt-hour meter constants default setting value" (p. 47)
"Setting the desired meter constant" (p. 46)
2
Select the constant number or
xed energy*.
or
