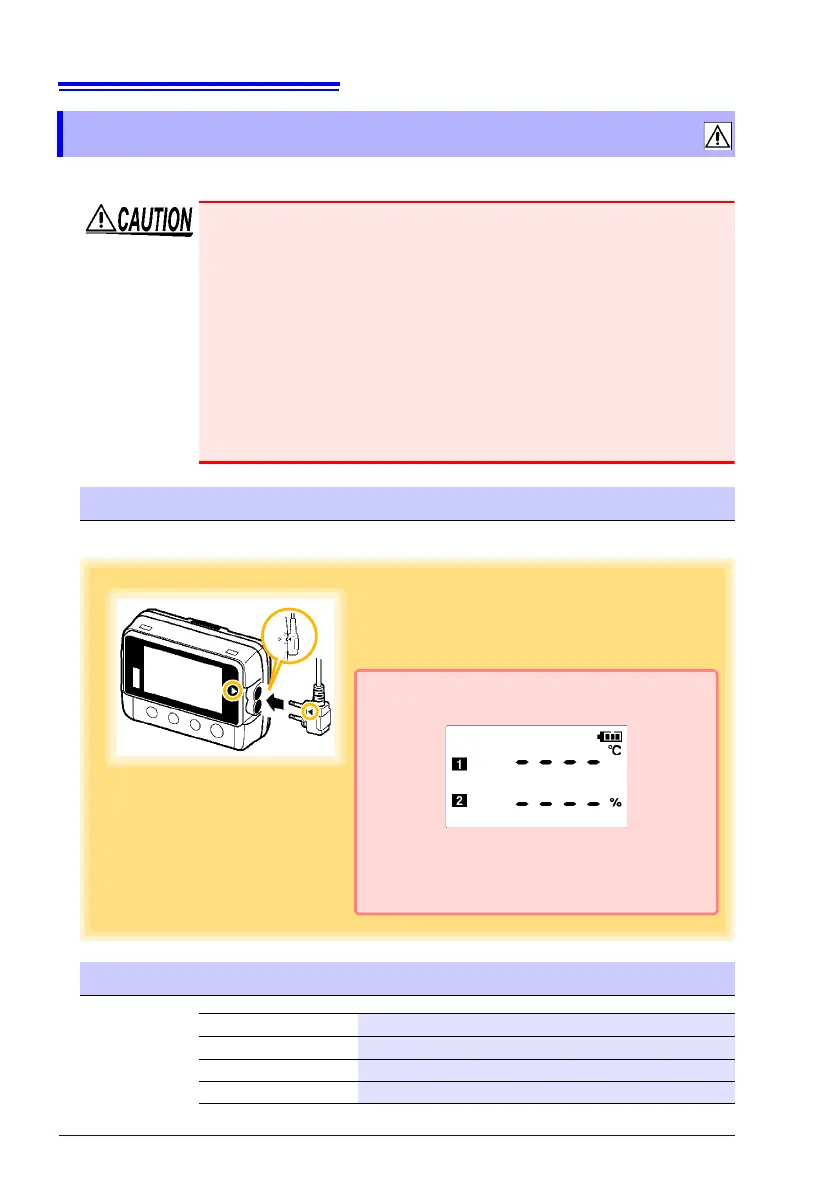

2.2 Connecting a Temperature/Humidity Sensor
20
Connect a temperature/humidity sensor to the logger's sensor jacks.
Required Items: Hioki LR9501 to LR9504 Temp/Humidity Sensor
2.2 Connecting a Temperature/Humidity Sensor
• A temperature/humidity sensor is precision machined. Applying an
excessively high voltage pulse or static electricity may damage the
sensor.
• Avoid subjecting the temperature/humidity sensor tip to physical
shoc
k, and avoid sharp bends in the leads. These may damage the
probe or break a wire.
• Take care that the temperature/humidity sensor does not exceed the
spec
ified temperature range.
• To avoid breaking the sensor, do not bend or pull it.
• Avoid stepping on or pinching cables, which could damage the cable
insula
tion.
• To avoid damage to the instrument, do not apply voltage to sensor jacks.
Connection Method
Align the triangle on the plug with the one in front of
the sensor jacks, and insert the plug securely.
Values are not displayed correctly if the sensor
plug is inserted incorrectly or not inserted far
enough.
If values are not displayed correctly even when the
plug is inserted properly, the logger or sensor may
be damaged. Repair may be necessary.
See: "Requesting repairs" (p.91)
Compatible Sensors
LR9501 Humidity Sensor Approx. length 1 m
LR9502 Humidity Sensor Approx. length 5 m
LR9503 Humidity Sensor Approx. length 10 m
LR9504 Humidity Sensor Approx. length 40 m
