6.3.8. Digital I/O
The Digital I/O page displays the current status of the I/O ports and can be used to turn output ports
on or off.
NetModule Router Simulator
Hostname NB1600
Software Version 4.4.0.103
© 2004-2020, NetModule AG
WAN
Link Management
Supervision
Settings
Ethernet
Port Setup
VLAN Management
IP Settings
Mobile
Modems
SIMs
Interfaces
WLAN
Administration
Configuration
IP Settings
Bridges
USB
Serial
Digital I/O
GNSS
Digital I/O Status
DI1: off
DI2: on
DO1: off
turn on
DO2: on
turn off
Digital I/O Configuration
DO1 after reboot:
default
DO2 after reboot:
default
Apply
HOME INTERFACES ROUTING FIREWALL VPN SERVICES SYSTEM
LOGOUT

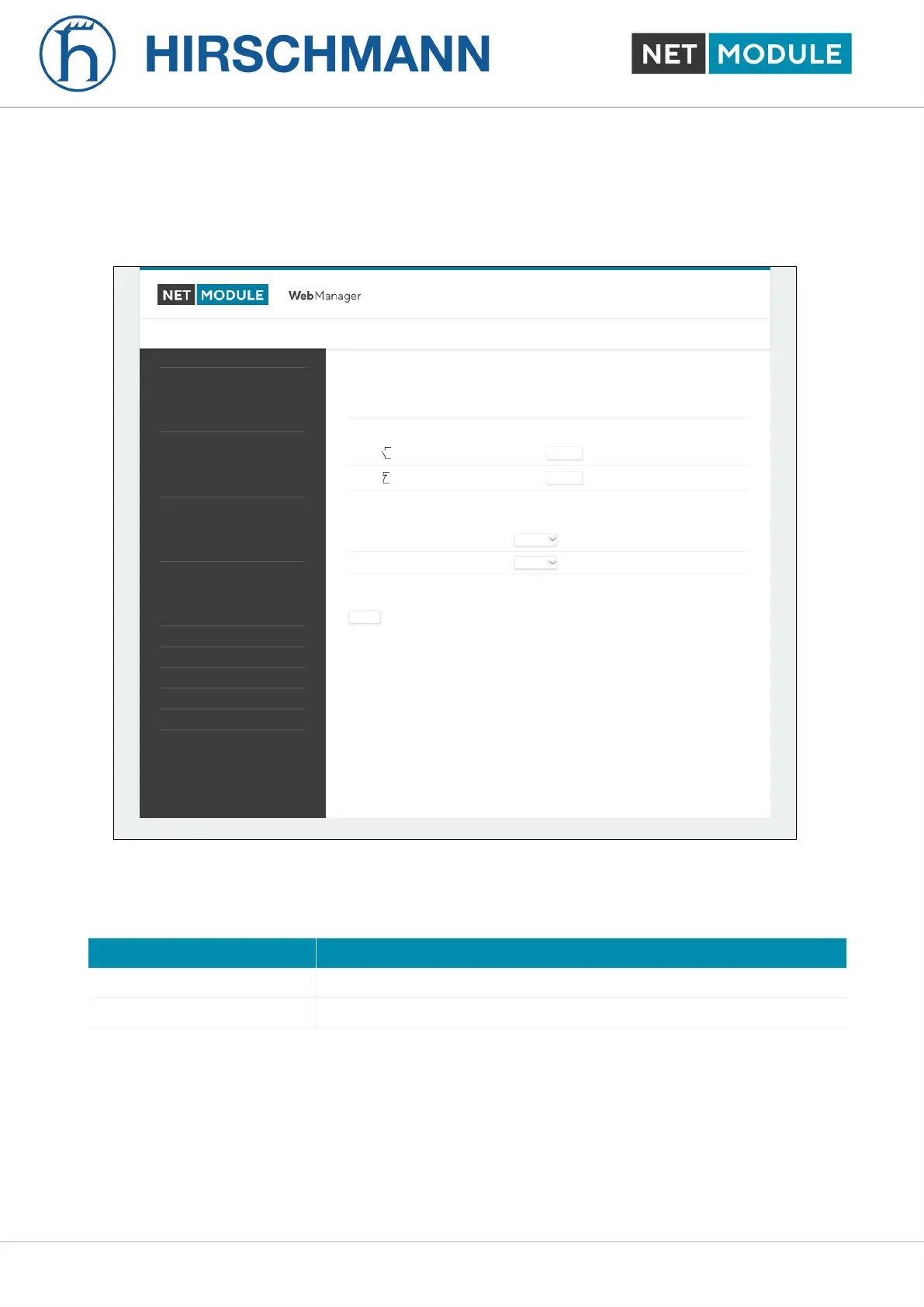

Figure 6.24.: Digital I/O Ports
You can apply the following settings:
Parameter Digital I/O Settings
DO1 after reboot Initial status of DO1 after system has booted
DO2 after reboot Initial status of DO2 after system has booted
Besides on and off you may keep the default status as the hardware has initialized it after power-up.
The digital inputs and outputs can also be monitored and controlled by SDK scripts.
