21-216
(local)
TX
RX
RX
TX
RJ RJ
RX
TX
TX
RX
Multi-mode
optical fiber
E
IED
(local)
E
G.703
cable
< 10 m
IEC07000155-1-en.vsdx
Multi-mode
optical fiber
21-216
(remote)
IED
(remote)
IEC07000155 V1 EN-US

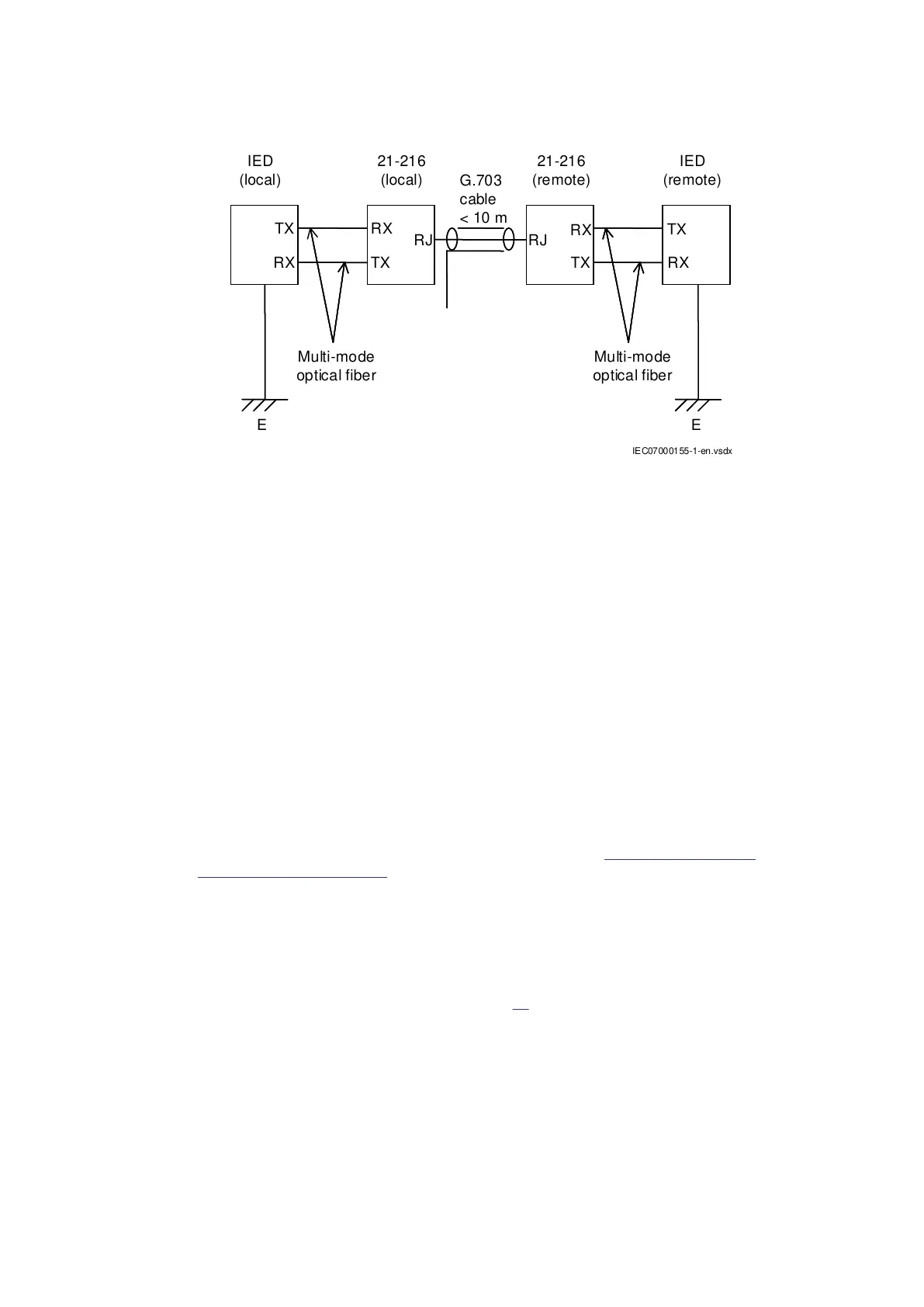

Figure 79: Communication structure for laboratory testing
5.6 PDH/SDH telecommunication via C37.94 interface to
transceiver 21-219
GUID-42A1D332-A59D-49F9-9821-719F3A993774 v1
5.6.1 Communication requirements
GUID-DCDF94BA-73EE-4970-86AB-676F1E53634D v1
PDH/SDH telecommunication network set-up can be done via 64 kbit/s or 2 Mbit/s C37.94 interface
to transceiver type 21-219.
Communication quality in PDH telecommunication networks is usually lower than in SDH
telecommunication networks due to less stable master clocks. The bit error rate is typically BER10
-6
.
An SDH telecommunication network with an accurate master clock usually enables high quality
communication with very low bit error rate (BER10
-9
).
Communication system requirements are defined in Appendix
Sample specification of
communication requirements.
5.6.2 Communication structure with transceiver 21-219 port
synchronized from SDH master clock
GUID-0146A8BA-6425-43DE-8945-D1E18A1B82F3 v1
Setting up an SDH telecommunication network requires that transceiver 21-219 port is synchronized
from the SDH network master clock (see Figure
80). The SDH multiplexer (SDH MUX) must be
configured to fulfil this requirement. The settings are vendor dependent, but usually SDH MUX is to
be set for re-timing, and the format is to be set according to G.704 standard (framed, structured,
unstructured, and so on). The transparent format cannot be used in SDH telecommunication
networks because there is no synchronization available in the transceiver 21–219 SDH port.
1MRK505382-UEN Rev. K Section 5
Communication set-up
Communication set-up, 670/650 series 79
Application Guide
© 2017 - 2023 Hitachi Energy. All rights reserved
