IEC10000244 V1 EN-US

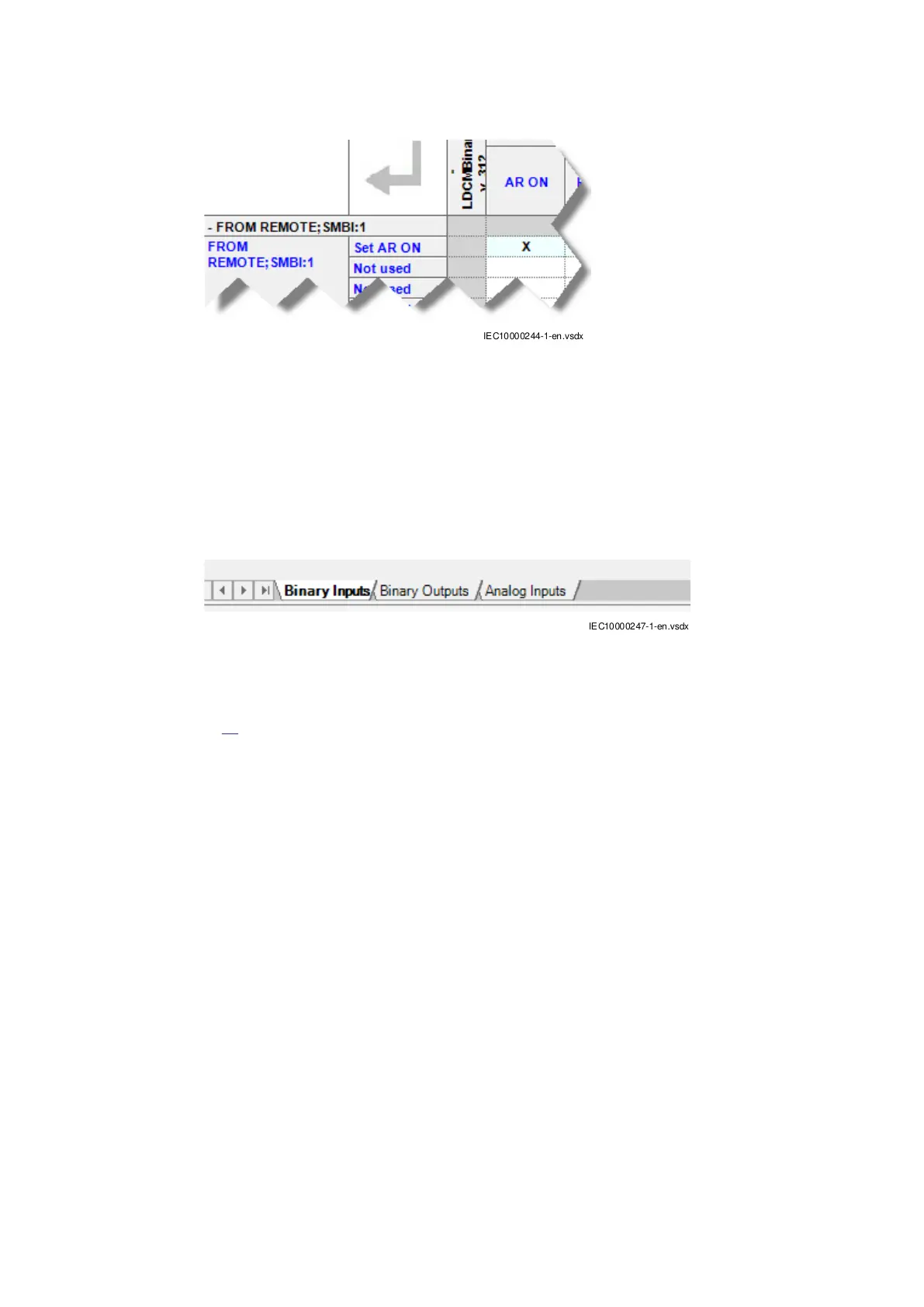

Figure 50: User Defined Name in SMT
4.8.2.2 Configuration of binary inputs and outputs via SMT
GUID-34EC440E-6D10-4FB5-A860-383D18220017 v1
Configuration of binary input signals (SMBI) and binary output signals (SMBO) is done via SMT by
selecting the respective tab.
IEC10000247 V1 EN-US
Figure 51: Tab selection in SMT for binary input and output configuration
Figure 52 shows a configuration of LDCM Hardware Channel and SMBI in the Binary Inputs tab in
SMT Connection between hardware (LDCM) and software (SMBI) is indicated by an X.
Section 4 1MRK505382-UEN Rev. K
Analog and binary signal transfer for line differential protection
48 Communication set-up, 670/650 series
Application Guide
© 2017 - 2023 Hitachi Energy. All rights reserved
