Hitachi CP100NX User Manual

(6) On-screen keypad
2-2 Structure
2-2-1 Touchscreen and External Connection
The touchscreen with color liquid crystal screen is incorporated in the CP-NX Series. You can set the run
parameters, perform the operation, and display a run history, programmed operation, and user
customizations screens by pressing the screen.
Fig. 2-2-1 shows the touchscreen.
The following screen appears by pressing the [SPEED], [TIME], or [TEMP] button.
(4)
[STOP]
button
(3)
[START]
button
(2) [VACUUM]
button/Indicator
2-2 Structure
2-2-1 Touchscreen and External Connection

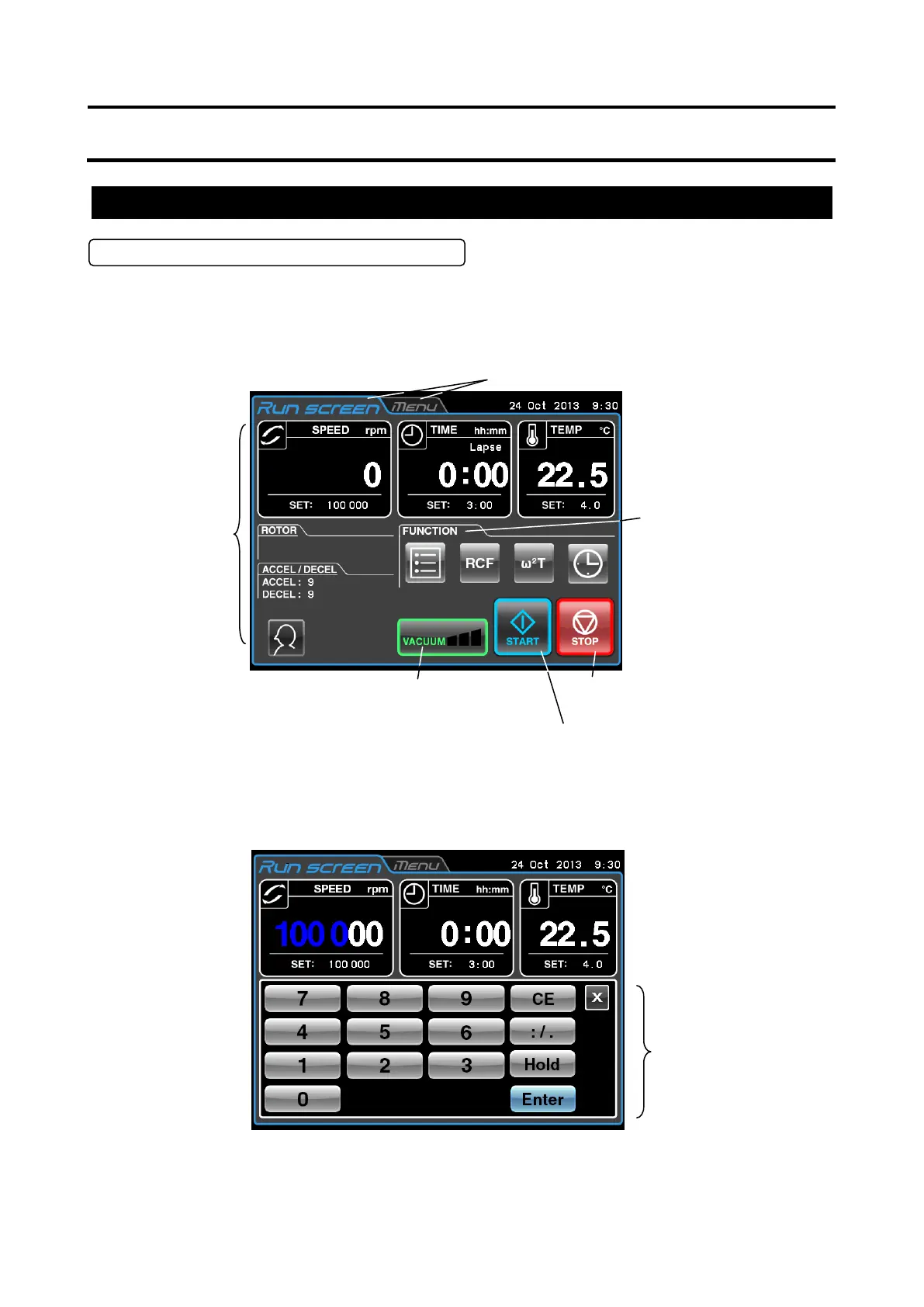

Fig. 2
-2-1 Touchscreen
【Display at the normal operation】
(1) Display Areas
(5) Function
Selection Area
Tabs of each screen
【Display when setting the run conditions such as the speed etc.】
2-2
