Hitachi CP100NX User Manual

2-2-1 Touchscreen and External Connection
〔

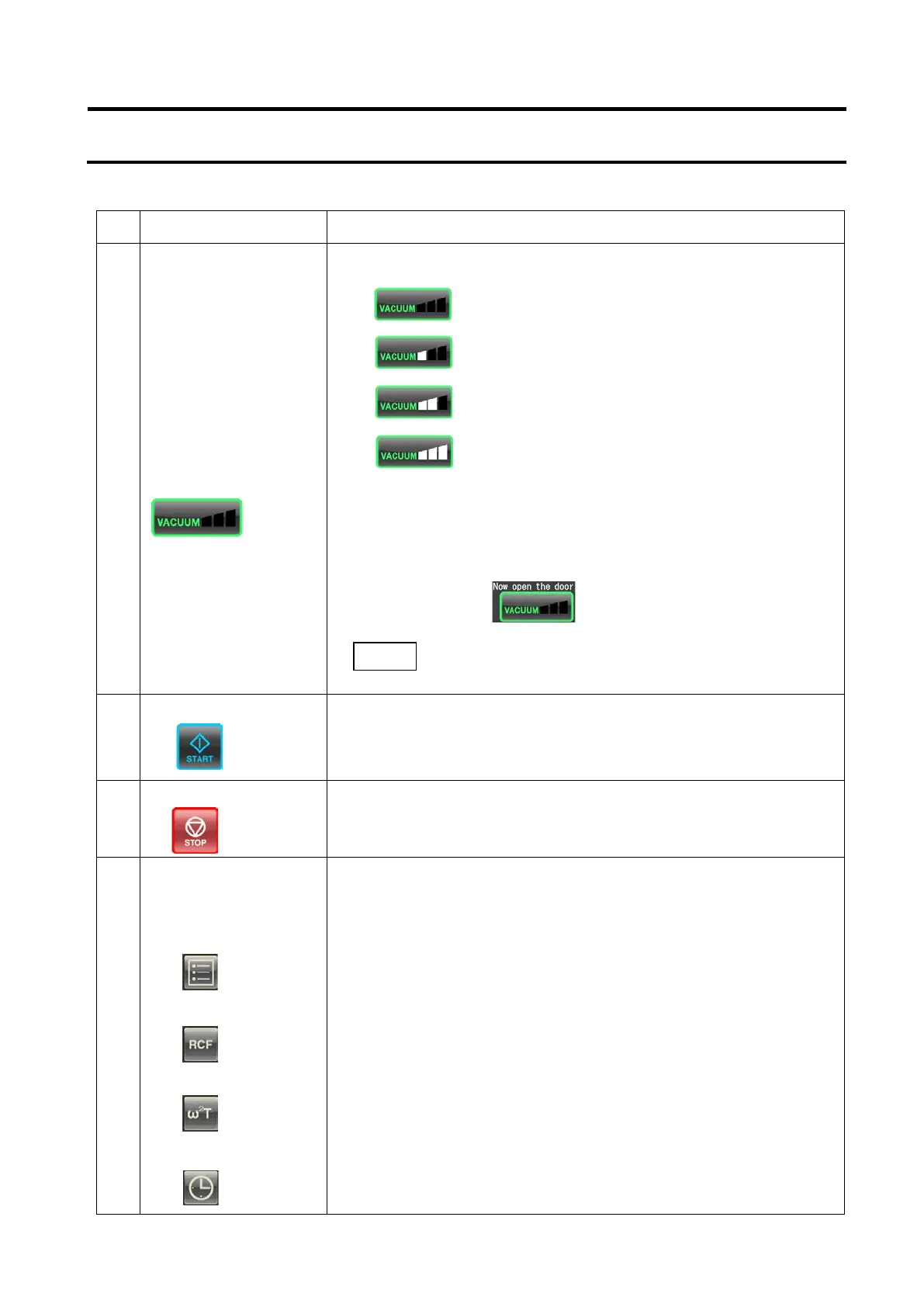

Functions of the Run screen
〕
No. Name and symbol
Functions and actions
②
●
The following four stages are displayed, depending on the vacuum of the
rotor chamber.
Atmospheric state.
The vacuum pump is not active.
Low vacuum. The rotor waits at 4
,000 rpm until the
vacuum reaches medium level.
（3） Medium vacuum.
（4） High vacuum.
● The orange LED light blinks until the pressure in the rotor chamber equals
the atmosphere pressure.
● “Now open the door” is displayed (see below) after the pressure in the
rotor chamber equals the atmosphere pressure.
③
●Press this button to start rotor rotation.
If [VACUUM] is off, pressing this button starts the vacuum pump and
starts temperature control.
④
●Press this button to stop rotor rotation.
⑤
Function Selection area
This centrifuge incorporates a number of features, such as step-mode
operation and RTC (Real Time Control) operation. Buttons for these features
are displayed and specified in the Function selection area.
● Press this button to select the step-mode operation etc (see section 3-3-1).
●Press this button to display and set RCF (see section 3-3-2).
●Press this button to set ω
2
T (see section 3-3-3).
●Press this button to select the RTC (Real Time Control) operation (see
section 3-3-4).
[PROGRAM]
button
[RCF] button
If the sample is sensitive to temperature increases, press
the
[START] button when the chamber is at a high vacuum
level.
NOTE
（1
）
（2
）
[
VACUUM] button
2-4
[START] button
[STOP]
button
[ω
2
T] button
[RTC] button
