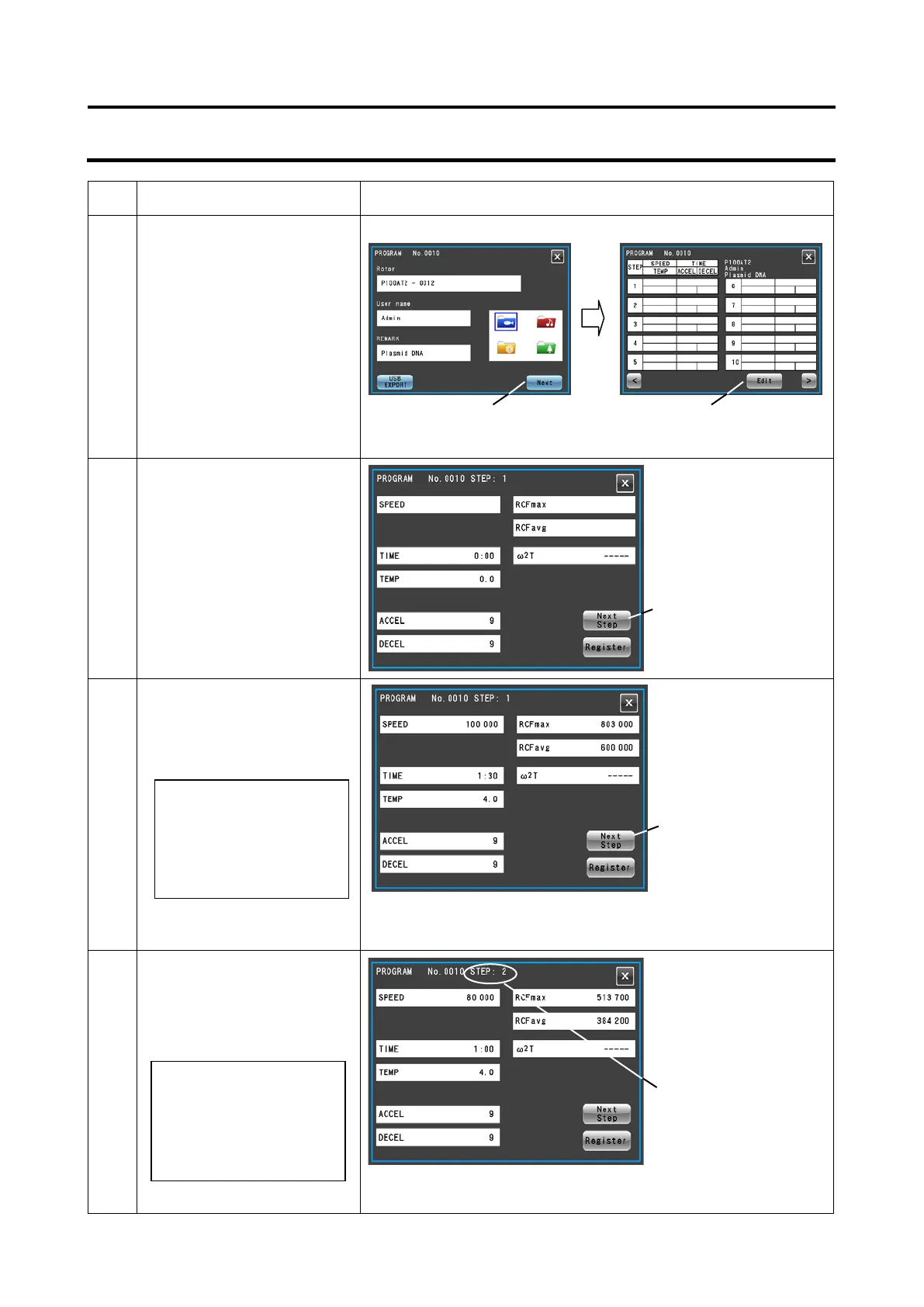

Step Touchscreen operation Screen displays and notes
1 As described in steps 1 to 8
in "(1) Procedures for
registration of run
parameters" in Section
3-3-1-1 "Program
registration procedures,"
enter the Program No.,
registered rotor, user and
remarks, select a folder color
and press the [Next] button.
In this example, the steps are
stored in program No. 10.
2 Press a field in Step 1, check
that the field turns blue and
press the [Edit] button.
3
Enter the run parameters for
step 1 from the run
parameter entry/display
screen.
 Registering a rotor will make it possible to compute and
display RCFmax and RCFavg values from the set SPEED
value.
4
Press the [Next Step] button
and enter the run parameters
for step 2 from the run
parameter entry/display
screen for step 2.
 The value entered in STEP 1 is copied to the run parameter
entry/display screen.
●
The run parameter
entry/display screen
appears.
STEP 1
SPEED: 100,000 rpm
TIME ：1 h 30 min
TEMP ：4.0 °C
ACCEL: 9
DECEL: 9
[Next Step] button
●
The run parameter
entry/display screen
appears.
●
The run parameter
entry/display screen
in STEP 2 appears.
STEP 2
SPEED: 80,000 rpm
TIME : 1 h
TEMP ：4.0 °C
ACCEL: 9
DECEL: 9
Entry screen STEP No.
3-3-1-3 Step-Mode Operation Procedures

Program registration screen

Run parameter setting/display
[Next]
button
[Edit]
button
[Next Step] button
3-42
