Hitachi DIGITAL 8 VM-D965LE User Manual

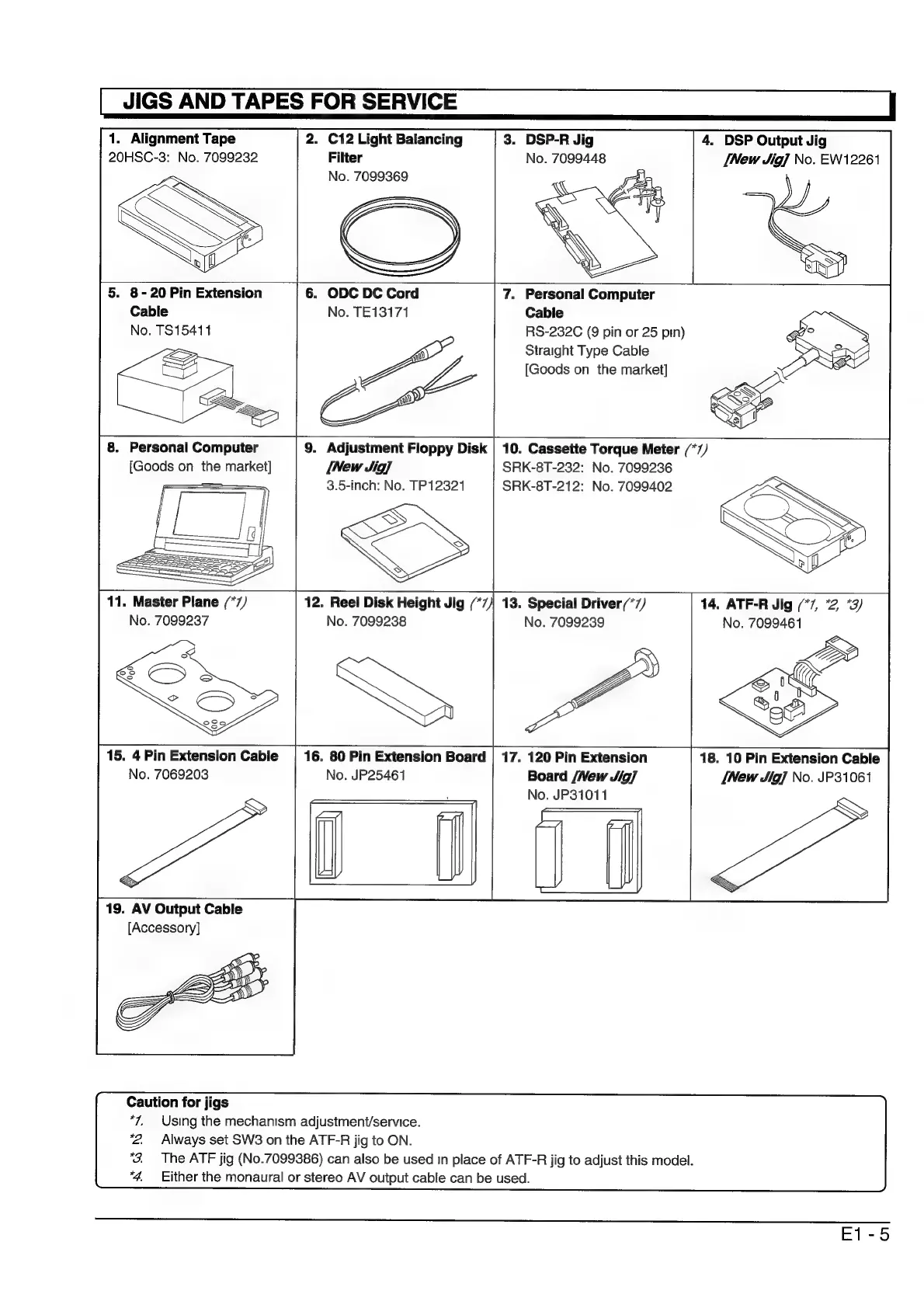

JIGS AND TAPES FOR SERVICE
1. Alignment Tape 2. C12 Light Balancing
20HSC-3: No. 7099232 Filter
No. 7099369
3. DSP-R Jig 4. DSP Output Jig
No. 7099448 [New Jig] No. EW12261
5. 8-20 Pin Extension 6. ODC DC Cord
Cable No. TE13171
No. TS15411
7. Personal Computer
Cable
RS-232C (9 pin or 25 pin)
Straight Type Cable
[Goods on the market]
8. Personal Computer
[Goods on the market] [New Jig]
SRK-8T-232: No. 7099236
SRK-8T-212: No. 7099402
11. Master Plane /*7)
No. 7099237
14. ATF-R Jig (*7, 2 *3)
No. 7099239 No. 7099461
15. 4 Pin Extension Cabie 16. 80 Pin Extension Board | 17. 120 Pin Extension 18. 10 Pin Extension Cable
No. 7069203 No. JP25461 Board /New Jig] [New Sig] No. JP31061
No. JP31011
1 O
19. AV Output Cable
[Accessory]
Caution for jigs
*7. Using the mechanism adjustment/service.
72. Always set SW3 on the ATF-R jig to ON.
3. The ATF jig (No.7099386) can also be used In place of ATF-R jig to adjust this model.
“4. Either the monaural or stereo AV output cable can be used.
E1-5
