a
2.7
DV
Circuit
Board,
VCA
Circuit
Board,
Meacanism
Frame,
UH
Mechanism
(Fig.
2-7)
Caution:
*
Be
careful
so
as
not
to
damage
the
connectors
(PG0202
and
PG2102)
between
the
VCA
and
DV
circuit
boards.
@
DV
Circuit
Board
(A)
(1)
Move
the
lower
side
of
the
DV
shield
(E)
in
the
direction
of
the
arrow
and
release
2
contacts.
(2)
Move
the
upper
side
of
the
DV
shield
(E)
in
the
direction
of
the
arrow
and
release
2
contacts.
(3)
Remove
the
DV
shield
(E)
from
the
VCA
circuit
board
in
the
direction
of
the
arrow.
(4)
Remove
1
screw
holding
the
DV
circuit
board..
(5)
Disconnect
1
flat
cable
on
the
DV
circuit
board.
(6)
Remove
the
DV
circuit
board
in
the
direction
of
the
arrow.
mg
VCA
Circuit
Board
(B)
(7)
Disconnect
1
connector
and
4
flat
cables
on
the
VCA
circuit
board.
(8)
Release
2
tabs
holding
the
VCA
circuit
board.
m@
Mechanism
Frame
(C)
and
UH
Mechanism
(D)
(9)
Remove
3
screws
holding
the
mechanism
frame.
(10)
Remove
1
screw
holding
the
cylinder
shield
(F).
(11)
Remove
1
screw
holding
the
mechanism
shield
CE
(G).
Reinstallation
procedure
and
cautions:
¢
Connect
connectors
PG0202
and
PG2102
securely.
*
Connect
contacts
DV
shield
and
VCA
circuit
board
securely.
:
DV
Circuit
Board
:
VCA
Circuit
Board
:
Mechanism
Frame
:
UH
Mechanism
:
DV
Shield
:
Cylinder
Shield
:
Mechanism
Shield
CE
QONmMmogogwpY

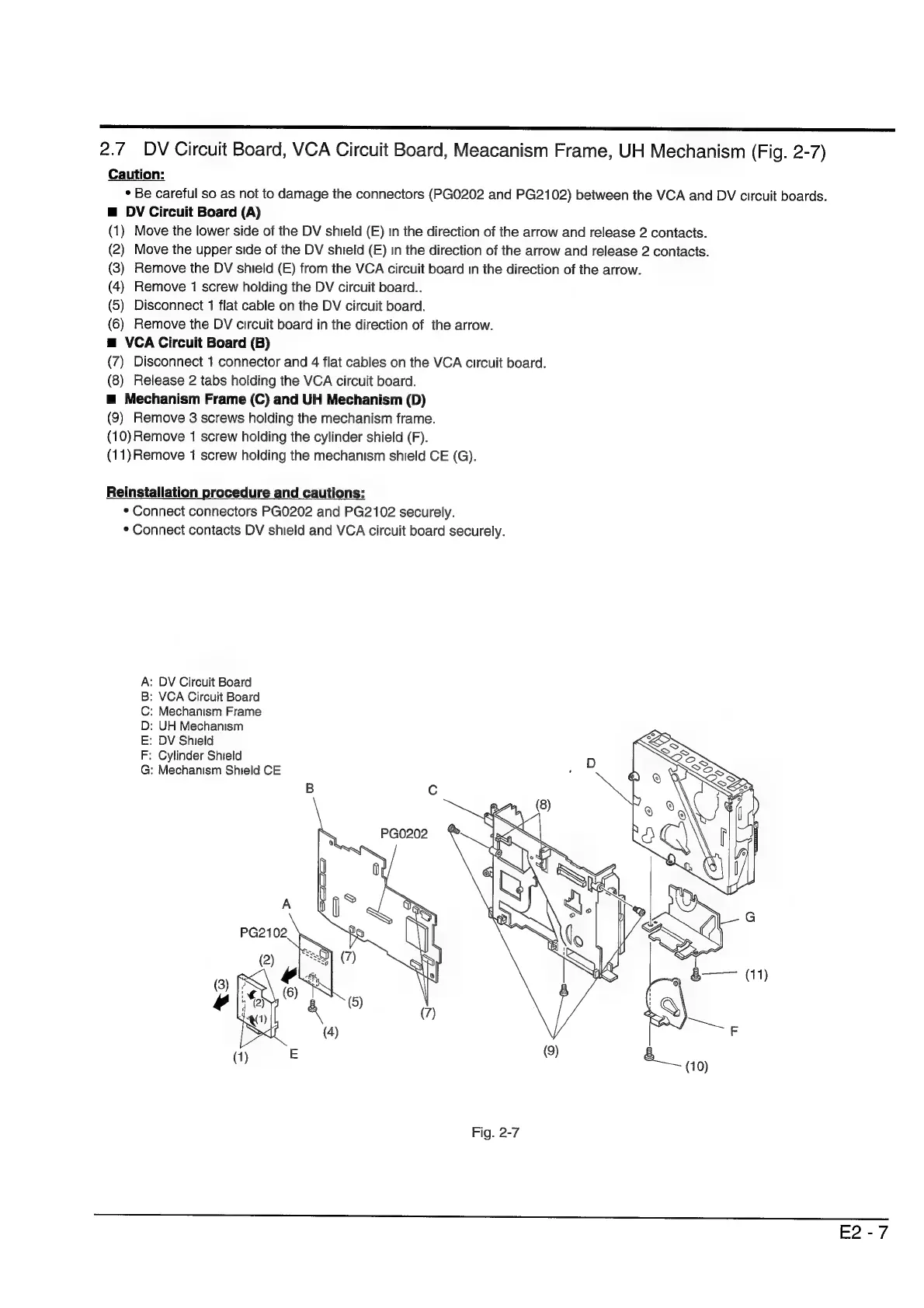

Fig.
2-7
F2-7
