Hitachi DIGITAL 8 VM-D965LE User Manual

ee
2.10
Eye Piece,
EVF
Case-R,
EVF
Case-L,
CEVF
Circuit
Board,
Backlight
Unit,
LCD
Module
(Fig.
2-10)
[TYPE
965]
Cautions:
* Be careful that the LCD screen is not damaged or smudged. (If dirt adheres to it, use a soft cloth to wipe it off.)
* Handle the LCD module and backlight unit with extreme care.
m Eye Piece (A)
(1) Remove the eye piece in the direction of the arrow.
m@ EVF Case-R (B), EVF Case-L (C) and CEVF Circult Board (D)
(2) Remove 2 screws holding the turn base (G).
(3) Remove 2 screws holding the EVF case-R and L.
(4) Release 3 tabs and remove the EVF case-R and L.
(5) Disconnect 2 flat cables on the CEVF circuit board.
m@ Backlight Unit (E) and LCD Module (F)
(6) Release 2 tabs of the BL plate (H).
(7) Disconnect 2 flat cables on the BL circuit board (I).
(8) Release 2 tabs of the BL cover (J).
(9) Remove the backlight unit and LCD module from the LCD holder(k).
» ©)
re
: Eye Piece
: EVF Case-R
EVF Case-L
CEVF Circuit Board
: Backlight Unit
LCD Module
: Turn Base
BL Plate
BL Circuit Board
BL Cover
LCD Holder
: EVF Base
TASTTIOMMVOD>Y

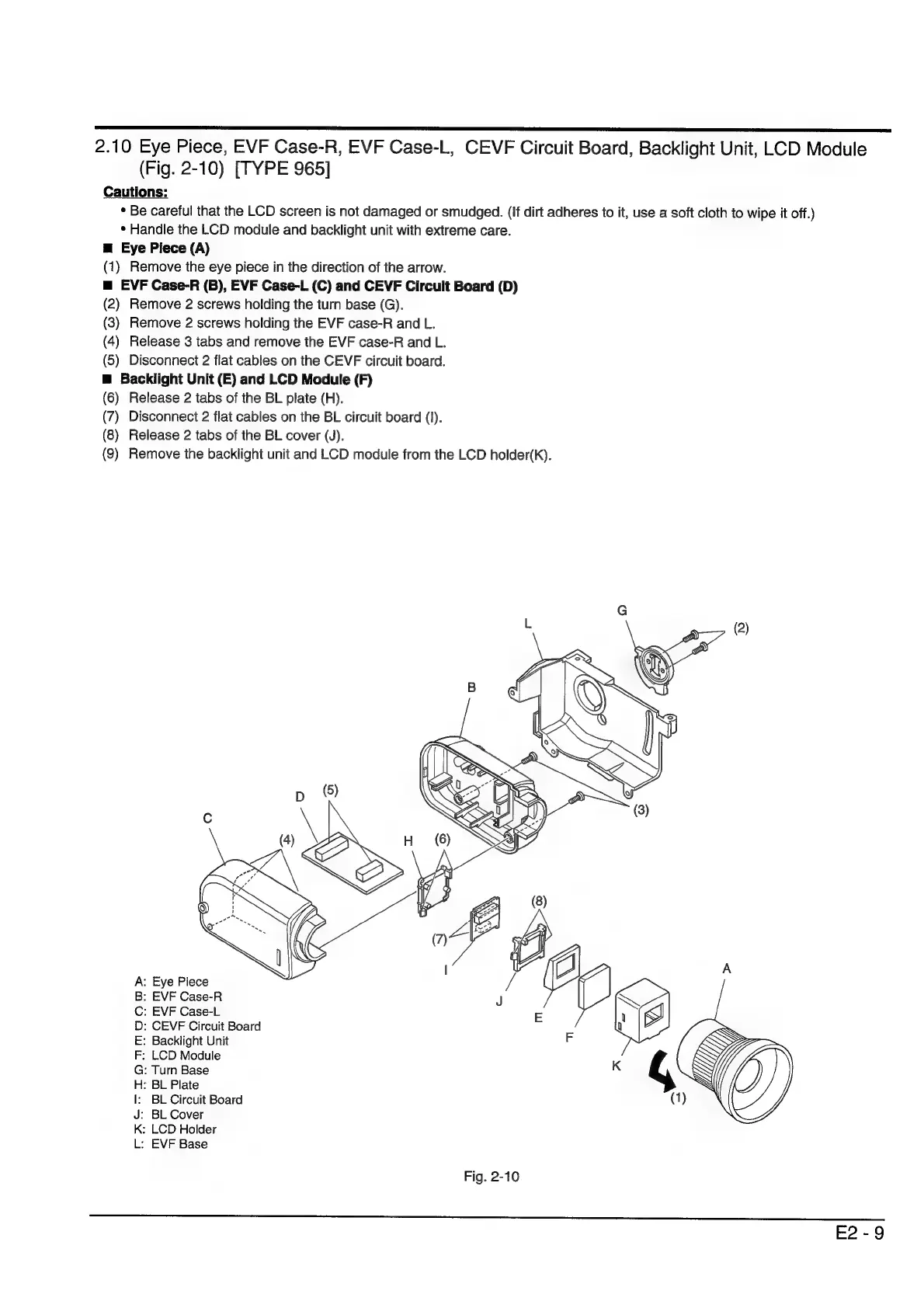

Fig. 2-10
