Hitachi DIGITAL 8 VM-D965LE User Manual

rp

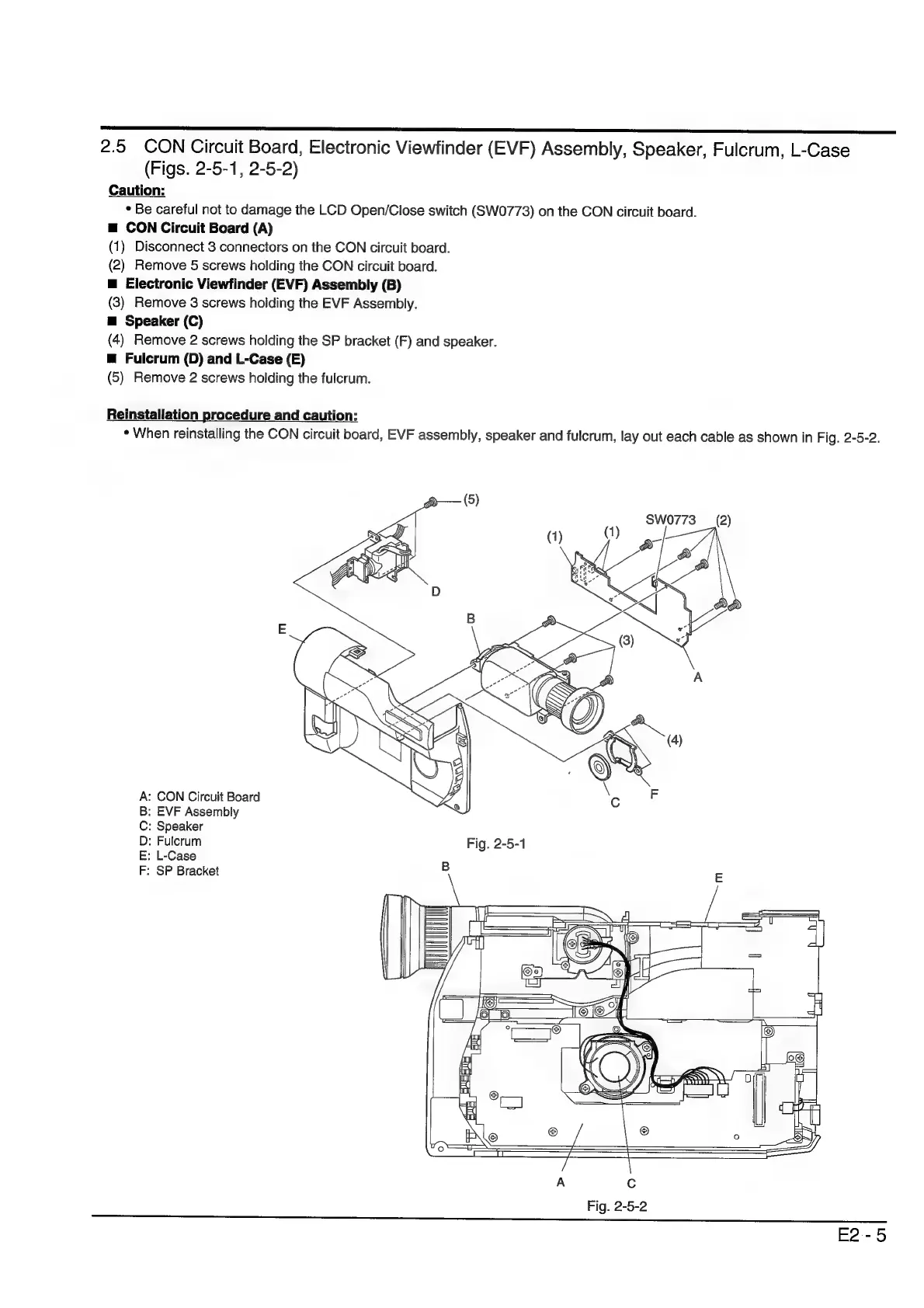

2.5
CON
Circuit
Board,
Electronic
Viewfinder
(EVF)
Assembly,
Speaker,
Fulcrum,
L-Case
(Figs.
2-5-1,
2-5-2)
Caution:
*
Be
careful
not
to
damage
the
LCD
Open/Close
switch
(SW0773)
on
the
CON
circuit
board.
m@ CON Circuit Board (A)
(1) Disconnect 3 connectors on the CON circuit board.
(2) Remove 5 screws holding the CON circuit board.
m@ Electronic Viewfinder (EVF) Assembly (B)
(3) Remove 3 screws holding the EVF Assembly.
m@ Speaker (C)
(4) Remove 2 screws holding the SP bracket (F) and speaker.
m@ Fulcrum (D) and L-Case (E)
(5) Remove 2 screws holding the fulcrum.
Reinstallation procedure and caution:
*
When
reinstalling
the
CON
circuit
board,
EVF
assembly,
speaker
and
fulcrum,
lay
out
each
cable
as
shown
in
Fig.
2-5-2.
: CON Circuit Board
: EVF Assembly
: Speaker
:
Fulcrum
Fig.
2-5-1
L-Case
: SP Bracket
IMGOR>
A Cc
Fig. 2-5-2
a
8
eS
es
EF2-5
