2.
TEST
EQUIPMENT
NECESSARY
FOR
ADJUSTMENT

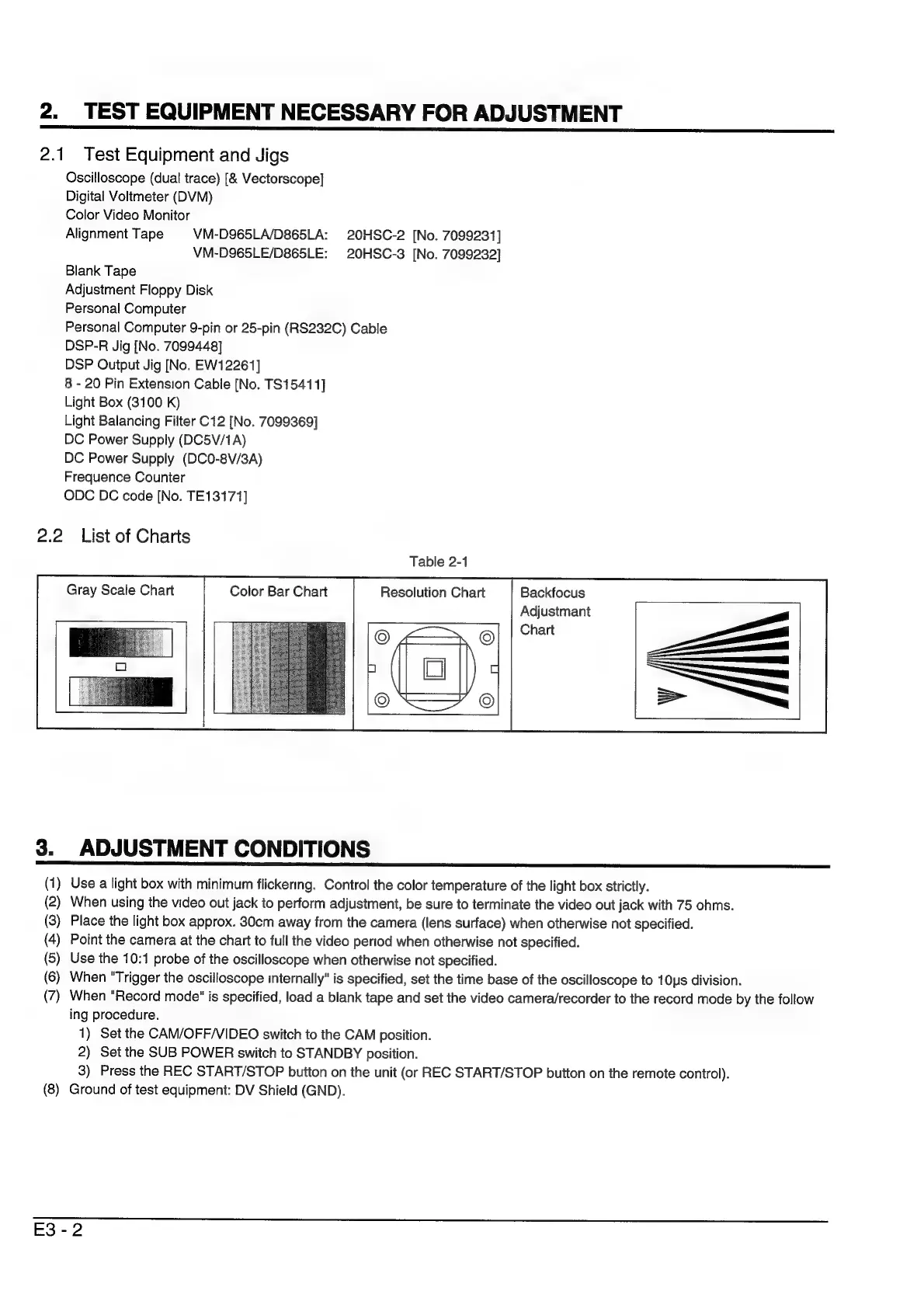

2.1 Test Equipment and Jigs
Oscilloscope (dual trace) [& Vectorscope]
Digital Voltmeter (DVM)
Color Video Monitor
Alignment Tape VM-D965LA/D865LA: 20HSC-2 [No. 7099231]
VM-D965LE/D865LE: 20HSC-3 [No. 7099232]
Blank Tape
Adjustment Floppy Disk
Personal Computer
Personal Computer 9-pin or 25-pin (RS232C) Cable
DSP-R Jig [No. 7099448]
DSP Output Jig [No. EW12261]
8 - 20 Pin Extension Cable [No. TS15411]
Light Box (3100 K)
Light Balancing Filter C12 [No. 7099369]
DC Power Supply (DC5V/1A)
DC Power Supply (DCO-8V/3A)
Frequence Counter
ODC DC code [No. TE13171]
2.2 List of Charts
Table 2-1
Gray Scale Chart Color Bar Chart Resolution Chart Backfocus
Adjustmant
3. ADJUSTMENT CONDITIONS
(1)
Use
a
light
box
with
minimum
flickering.
Control
the
color
temperature
of
the
light
box
strictly.
(2)
When
using
the
video
out
jack
to
perform
adjustment,
be
sure
to
terminate
the
video
out
jack
with
75
ohms.
(3)
Place
the
light
box
approx.
30cm
away
from
the
camera
(lens
surface)
when
otherwise
not
specified.
(4)
Point
the
camera
at
the
chart
to
full
the
video
period
when
otherwise
not
specified.
(5)
Use
the
10:1
probe
of
the
oscilloscope
when
otherwise
not
specified.
(6)
When
"Trigger
the
oscilloscope
internally"
is
specified,
set
the
time
base
of
the
oscilloscope
to
10us
division.
(7)
When
"Record
mode"
is
specified,
load
a
blank
tape
and
set
the
video
camera/recorder
to
the
record
mode
by
the
follow
ing
procedure.
1) Set the CAM/OFF/VIDEO switch to the CAM position.
2) Set the SUB POWER switch to STANDBY position.
3)
Press
the
REC
START/STOP
button
on
the
unit
(or
REC
START/STOP
button
on
the
remote
control).
Ground of
test
equipment:
DV
Shield
(GND).
~~
(8
—
E3-2
