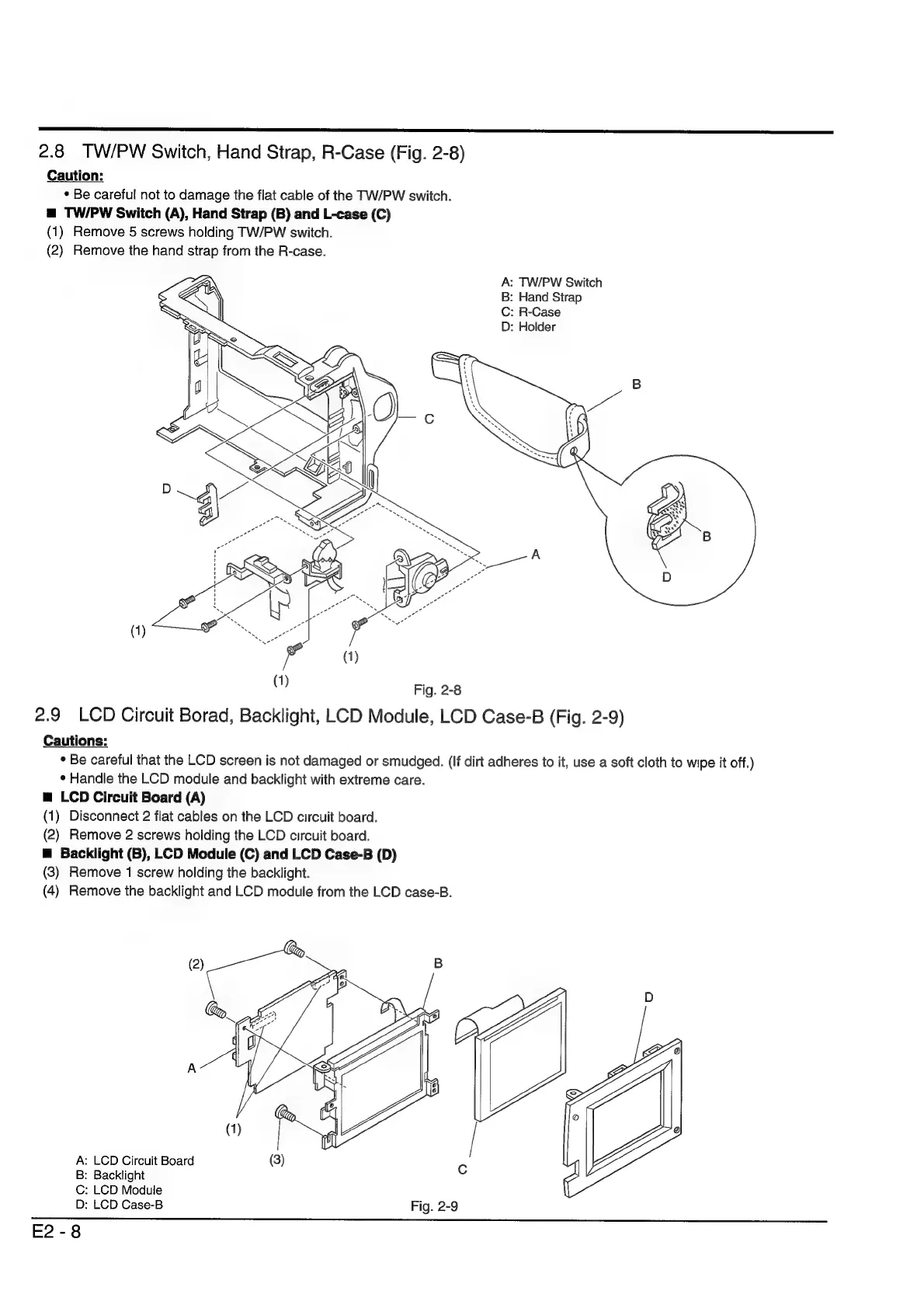

2.8 TW/PW Switch, Hand Strap, R-Case (Fig. 2-8)
Caution:
* Be careful not to damage the flat cable of the TW/PW switch.
mg TW/PW Switch (A), Hand Strap (B) and L-case (C)
(1) Remove 5 screws holding TW/PW switch.
(2) Remove the hand strap from the R-case.
A: TW/PW Switch
B: Hand Strap
C: R-Case
D: Holder
Fig. 2-8
2.9 LCD Circuit Borad, Backlight, LCD Module, LCD Case-B (Fig. 2-9)
Cautions:
°
Be
careful
that
the
LCD
screen
is
not
damaged
or
smudged.
(If
dirt
adheres
to
it,
use
a
soft
cloth
to
wipe
it
off.)
¢ Handle the LCD module and backlight with extreme care.
m@ LCD Circuit Board (A)
(1) Disconnect 2 flat cables on the LCD circuit board.
(2) Remove 2 screws holding the LCD circuit board.
m@ Backlight (B), LCD Module (C) and LCD Case-B (D)
(3) Remove 1 screw holding the backlight.
(4) Remove the backlight and LCD module from the LCD case-B.
A: LCD Circuit Board
B: Backlight
C: LCD Module
D: LCD Case-B
E2-8
