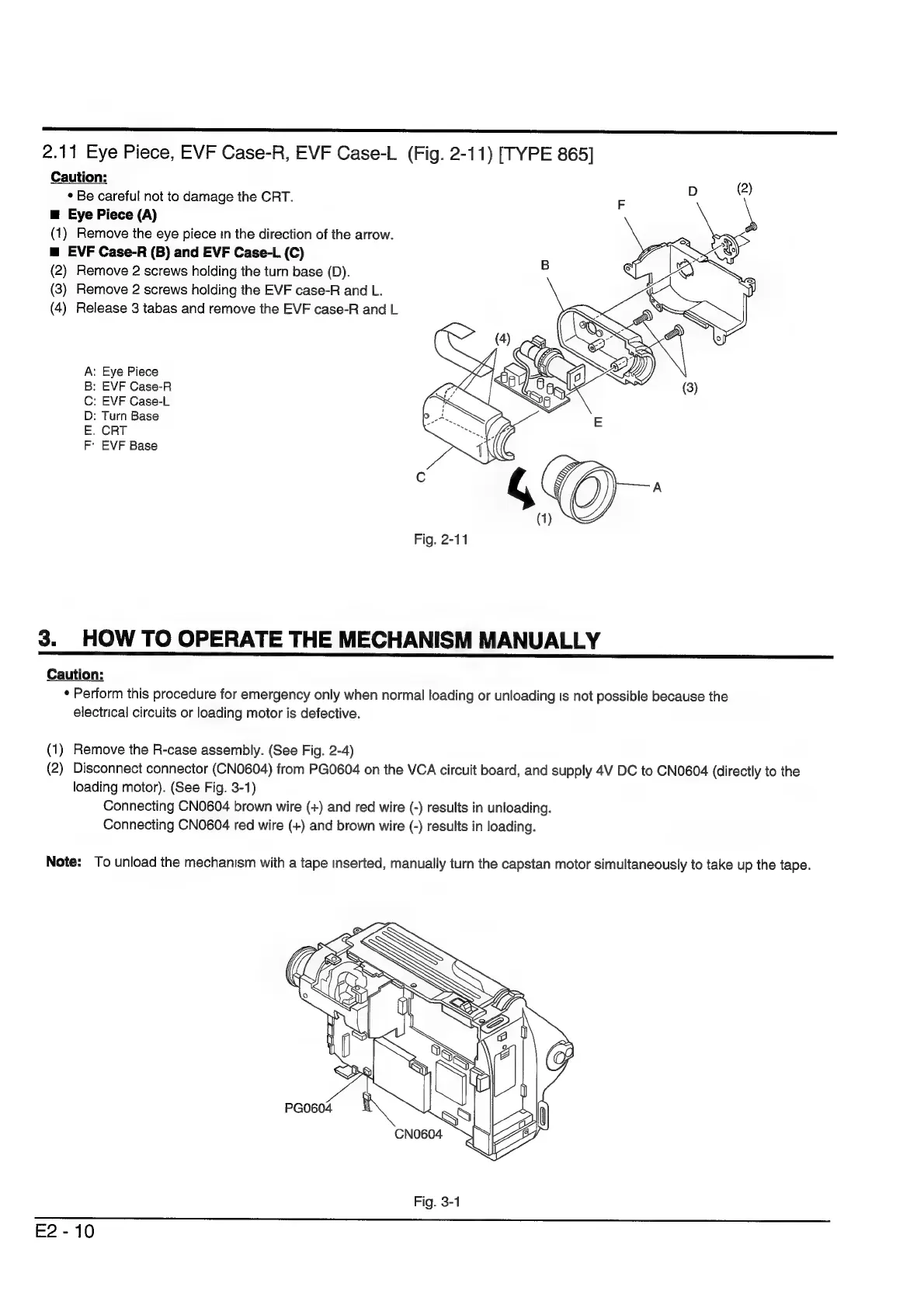

2.11 Eye Piece, EVF Case-R, EVF Case-L (Fig. 2-11) [TYPE 865]
Caution:
* Be careful not to damage the CRT.
m@ Eye Piece (A)
(1) Remove the eye piece in the direction of the arrow.
m@ EVF Case-R (B) and EVF Case-L (C)
(2) Remove 2 screws holding the turn base (D).
(3) Remove 2 screws holding the EVF case-R and L.
(4) Release 3 tabas and remove the EVF case-R and L
: Eye Piece
: EVF Case-R
: EVF Case-L
: Turn Base
CRT
‘ EVF Base
amgQmU>
3. HOW TO OPERATE THE MECHANISM MANUALLY
Caution:
*
Perform
this
procedure
for
emergency
only
when
normal
loading
or
unloading
Is
not
possible
because
the
electrical circuits or loading motor is defective.
(1) Remove the R-case assembly. (See Fig. 2-4)
(2)
Disconnect
connector
(CN0604)
from
PG0604
on
the
VCA
circuit
board,
and
supply
4V
DC
to
CN0604
(directly
to
the
loading motor). (See Fig. 3-1)
Connecting CN0604 brown wire (+) and red wire (-) results in unloading.
Connecting CN0604 red wire (+) and brown wire (-) results in loading.
Note: To unload the mechanism with a tape inserted, manually turn the capstan motor simultaneously to take up the tape.
Fig. 3-1
E2-10
