If loading or unloading does not occur even when 4V DC is directly supplied to the loading motor, perform the following
procedure:
(3) Remove the camera chassis assembly and rear cover. (See Fig. 2-6)
Note: Note that it is difficult to remove the rear cover.
(4) Move the lower side of the DV shield tn the direction of the arrow and release 2 contacts. (See Fig. 3-2)
(5) Move the upper side of the DV shield in the direction of the arrow and release 2 contacts. (See Fig. 3-2)
(6) Remove the DV shield from the VCA circuit board in the direction of the arrow.
(7) Remove 1 screw holding the DV circuit board. (See Fig.3-2)
(8) Disconnect 3 flat cables. (See Fig. 3-2)
(9) Disconnect connector. (See Fig. 3-2)
(10) Disconnect 2 flat cables. (See Fig. 3-2)
(11) Remove 3 screws. (See Fig. 3-2)
(12) Remove the UH mechanism in the direction of the arrow from the R-case. (See Fig.3-2)
: DV Shield
: VCA Circuit Board
: DV Circuit Board
R-Case
: Mechanism Frame
: UH Mechanism amMg9OU>

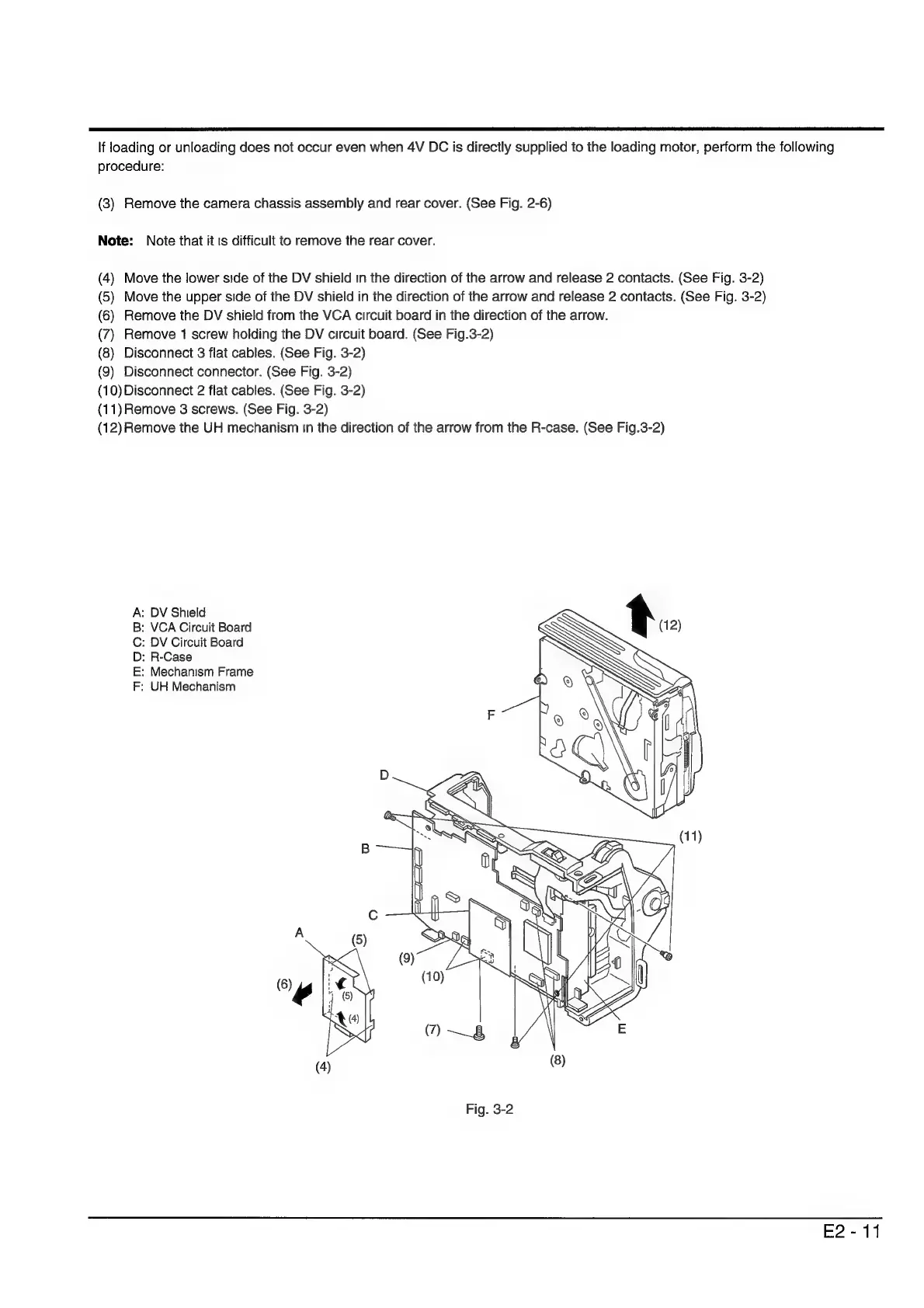

Fig. 3-2
E2 - 11
