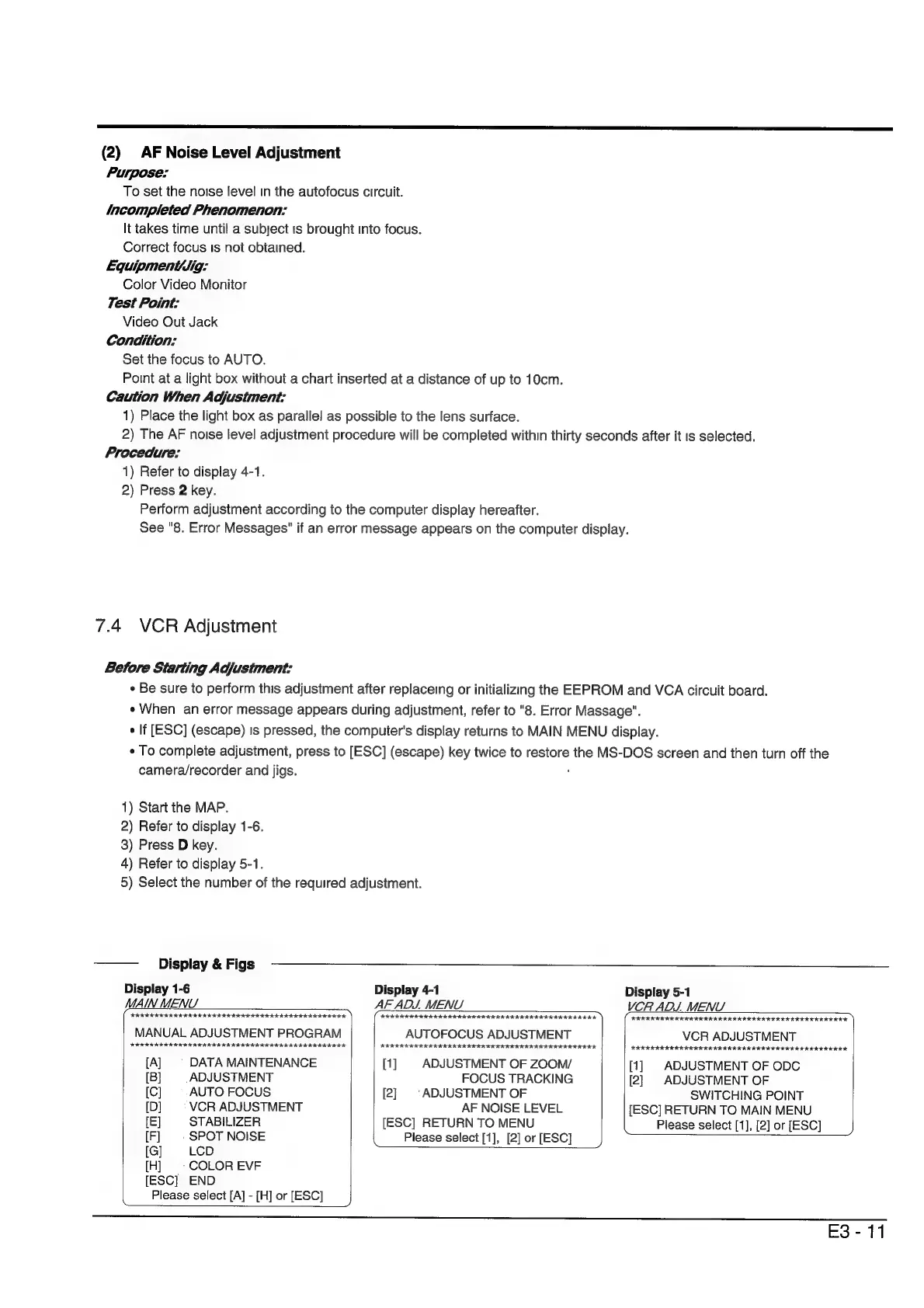

(2) AF Noise Level Adjustment
Purpose:
To set the noise level in the autofocus circuit.
/Incompleted Phenomenon:
lt takes time until a subject ts brought into focus.
Correct focus Is not obiained.
Equipment{jig:
Color Video Monitor
Test Point:
Video Out Jack
Condition:
Set the focus to AUTO.
Point at a light box without a chart inserted at a distance of up to 10cm.
Caution When Adjustment:
1) Place the light box as parallel as possible to the lens surface.
2) The AF noise level adjustment procedure will be completed within thirty seconds after it is selected.
Procedure:
1) Refer to display 4-1.
2) Press 2 key.
Perform adjustment according to the computer display hereafter.
See "8. Error Messages" if an error message appears on the computer display.
7.4 VCR Adjustment
Before Starting Adjustment:
«
Be
sure
to
perform
this
adjustment
after
replaceing
or
initializing
the
EEPROM
and
VCA
circuit
board.
e When an error message appears during adjustment, refer to "8. Error Massage".
* If [ESC] (escape) Is pressed, the computer's display returns to MAIN MENU display.
e
To
complete
adjustment,
press
to
[ESC]
(escape)
key
twice
to
restore
the
MS-DOS
screen
and
then
turn
off
the
camera/recorder
and
jigs.
j
1) Start the MAP.
2) Refer to display 1-6.
3) Press D key.
4) Refer to display 5-1.
5) Select the number of the required adjustment.
— Display & Figs
Display
1-6
Display
4-1
Display
5-1
MAIN
MENU
AF
ADS.
MENU
VCR
ADS
MENU
MANUAL
ADJUSTMENT
PROGRAM
AUTOFOCUS
ADJUSTMENT
VCR
ADJUSTMENT
FARK IIIA ERI SII IIIA IIIA IIA IISA ASA
[A] | DATA MAINTENANCE
[B]} | ADJUSTMENT
[C] | AUTOFOCUS
[D] | VCR ADJUSTMENT
(E] STABILIZER
[F] | SPOT NOISE
[G] LeD
[H] | COLOR EVF
[ESC] END
IIIA RIKI RIKER IKE IR IRI III IIIA IIIA.
[1] | ADJUSTMENT OF ZOOM/
FOCUS TRACKING
[2} | ADJUSTMENT OF
AF NOISE LEVEL
[ESC] RETURN TO MENU
Please select [A] - [H] or [ESC] J
HR KK KIK HIKER RER EER IKARIA IIIA IKI RIAA
[1] ADJUSTMENT OF ODC
[2] | ADJUSTMENT OF
SWITCHING POINT
[ESC] RETURN TO MAIN MENU
Please select [1], [2] or [ESC] )
Please select [1], [2] or [ESC]
rrr
rrr
rp
E3-11
