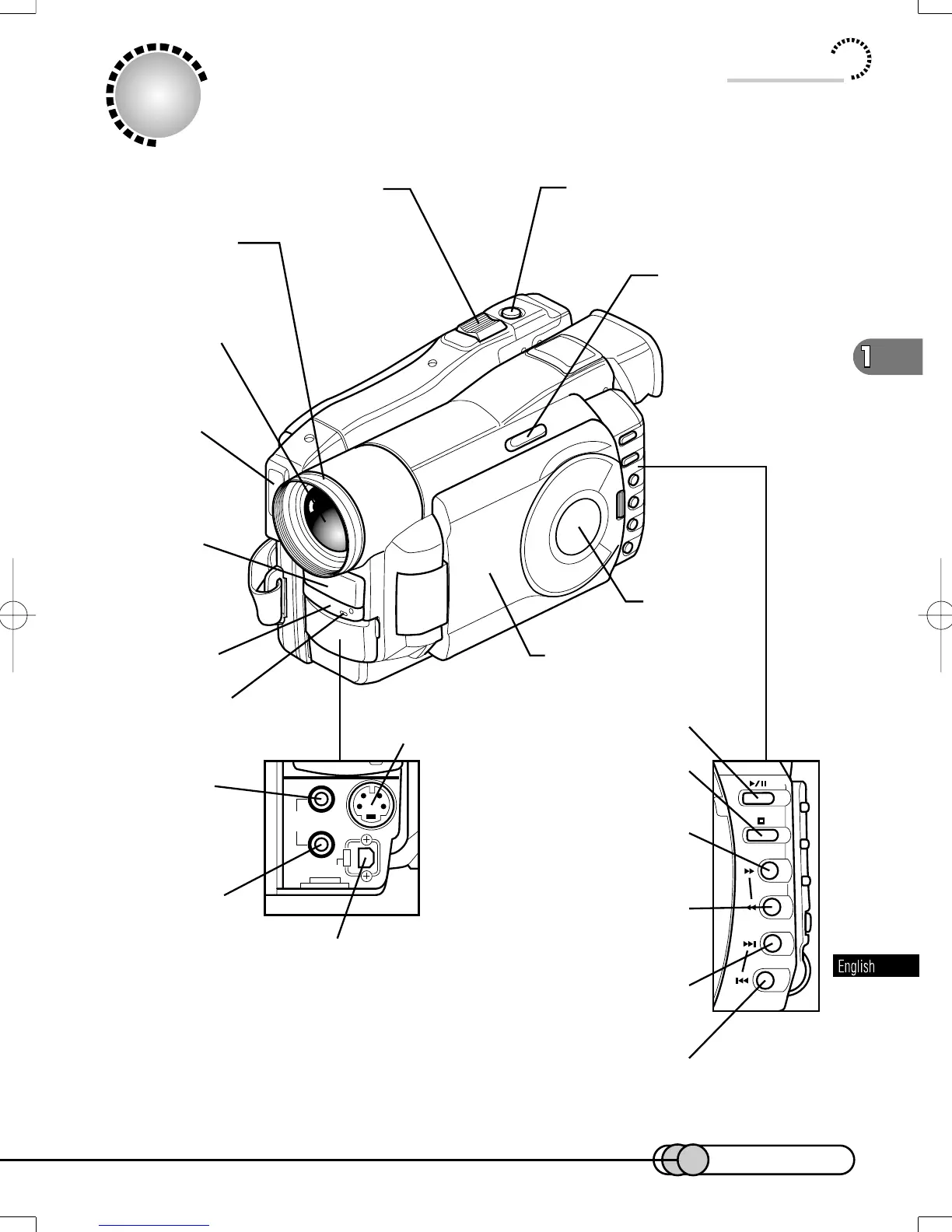

Hitachi DZMV100E - Names of Parts

27

ュー

Behind
the cover
AV output
jack
(P. 138)
External
microphone
jack
(P. 78)
S-video
output jack (P. 138)
PC connection
terminal (P. 142)
Playback/Pause
button (P. 90)
Stop button
(P. 90,91)
Forward search button
(P. 90,91)
Reverse search button
(P. 90,91,93)
Forward skip button
(P. 90,92)
Reverse skip button
(P. 90,92)
3.5-inch
color LCD monitor (P. 58)
Information
LCD monitor
(P. 61,142)
RECORDING MOD
E
switch (P. 62,64,80)
PHOTO button (shutter)
(P. 80)
Zoom lever
(P. 62,65)
Lens hood
Optical 12X
zoom lens
Flash
(P. 82)
Stereo
microphone
(P. 78)
Infrared
receiver(P. 53)
Tally lamp
(P. 87)
AUDIO/VIDEO
EXT.MIC
DIGITAL
S
V
I
D
E
O
